WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

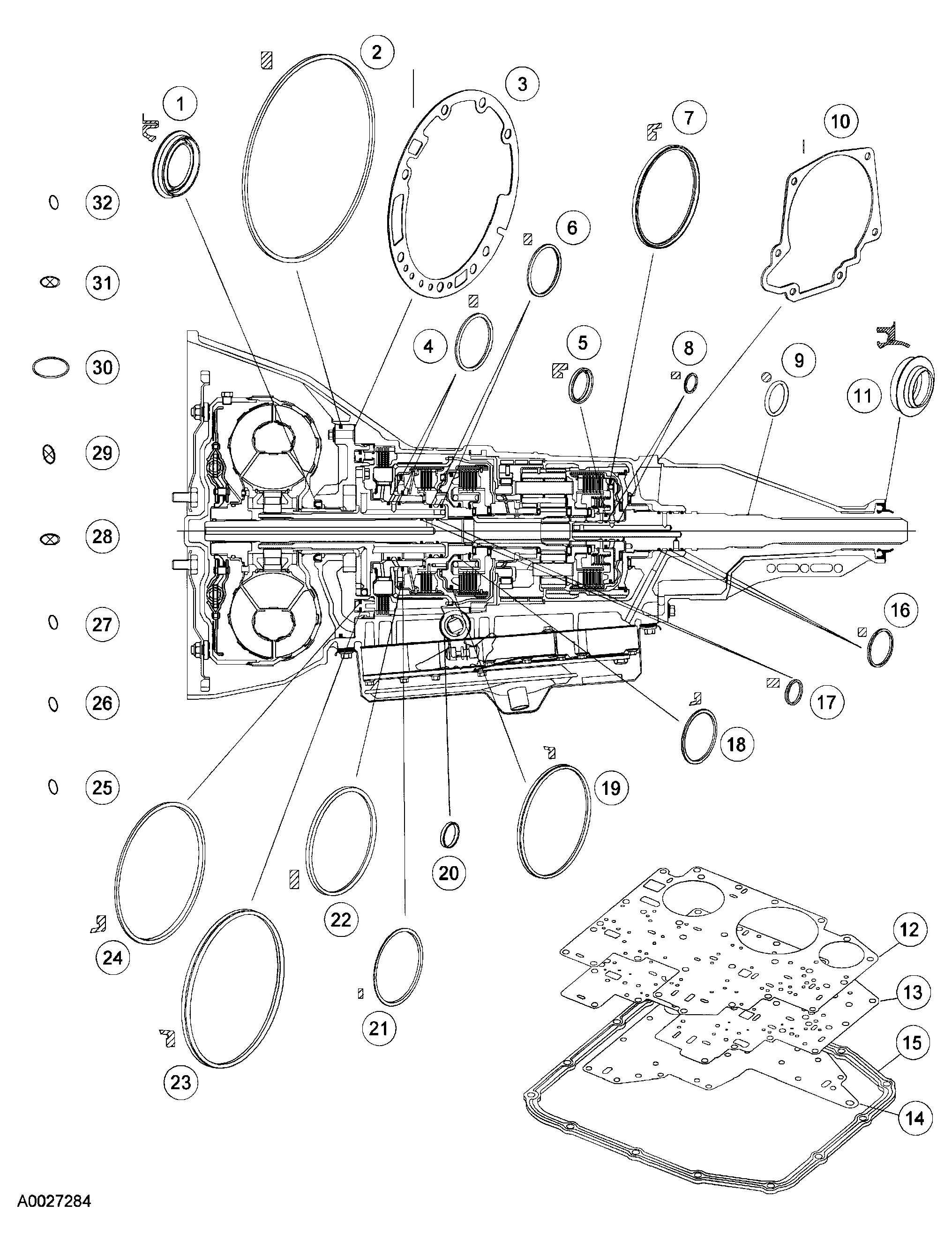

Fig 1: View Of Seals, Rings And Gasket Locator
Courtesy of FORD MOTOR CO.

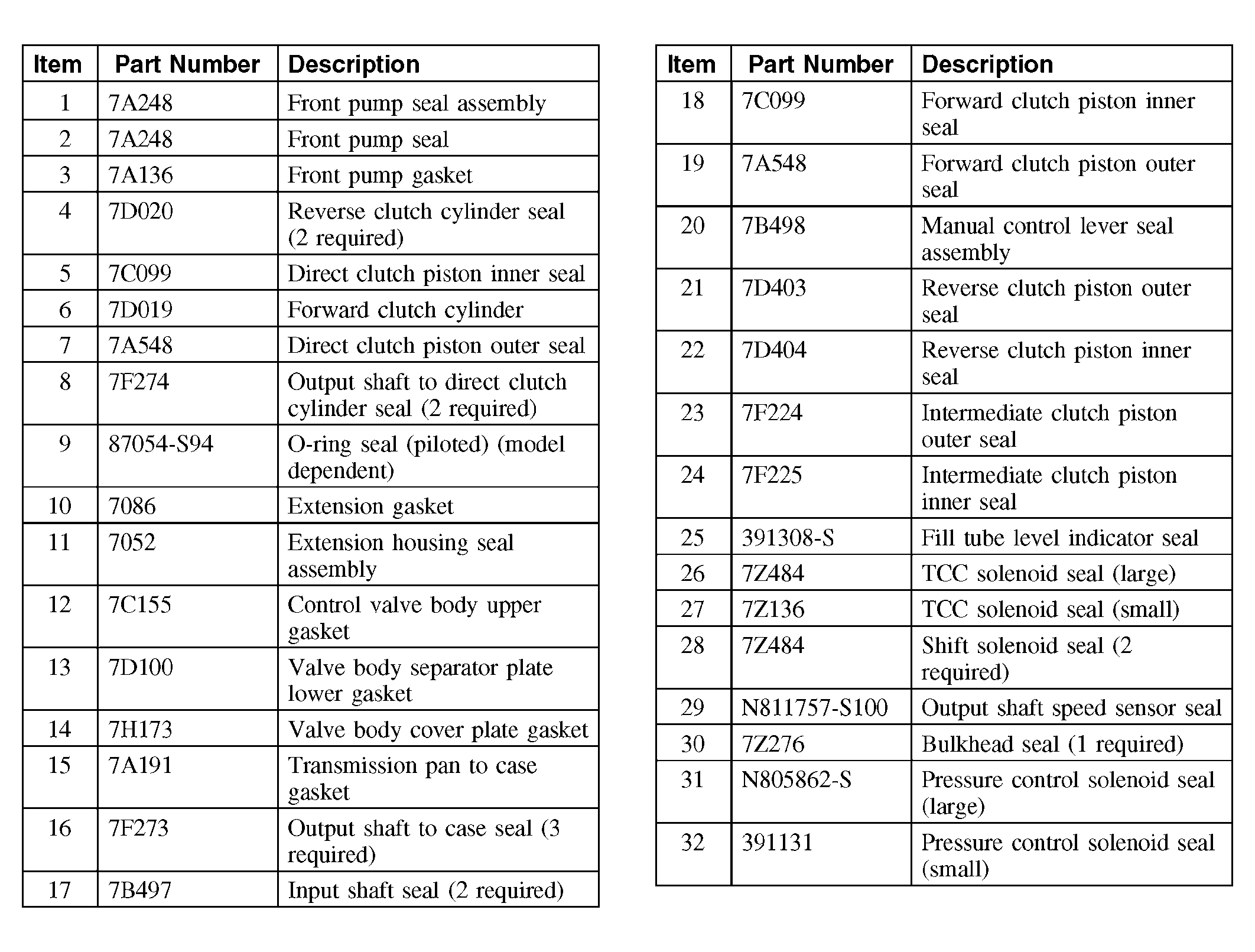

Fig 2: Seals, Rings And Gasket Locator Description Chart
