Valve Cover - LH: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL ITEM SPECIFICATION

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-
Silicone Gasket Remover ZC-30	-
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4

Fig 1: Exploded View Of Valve Cover - LH (Items 1-3)

Courtesy of FORD MOTOR CO.

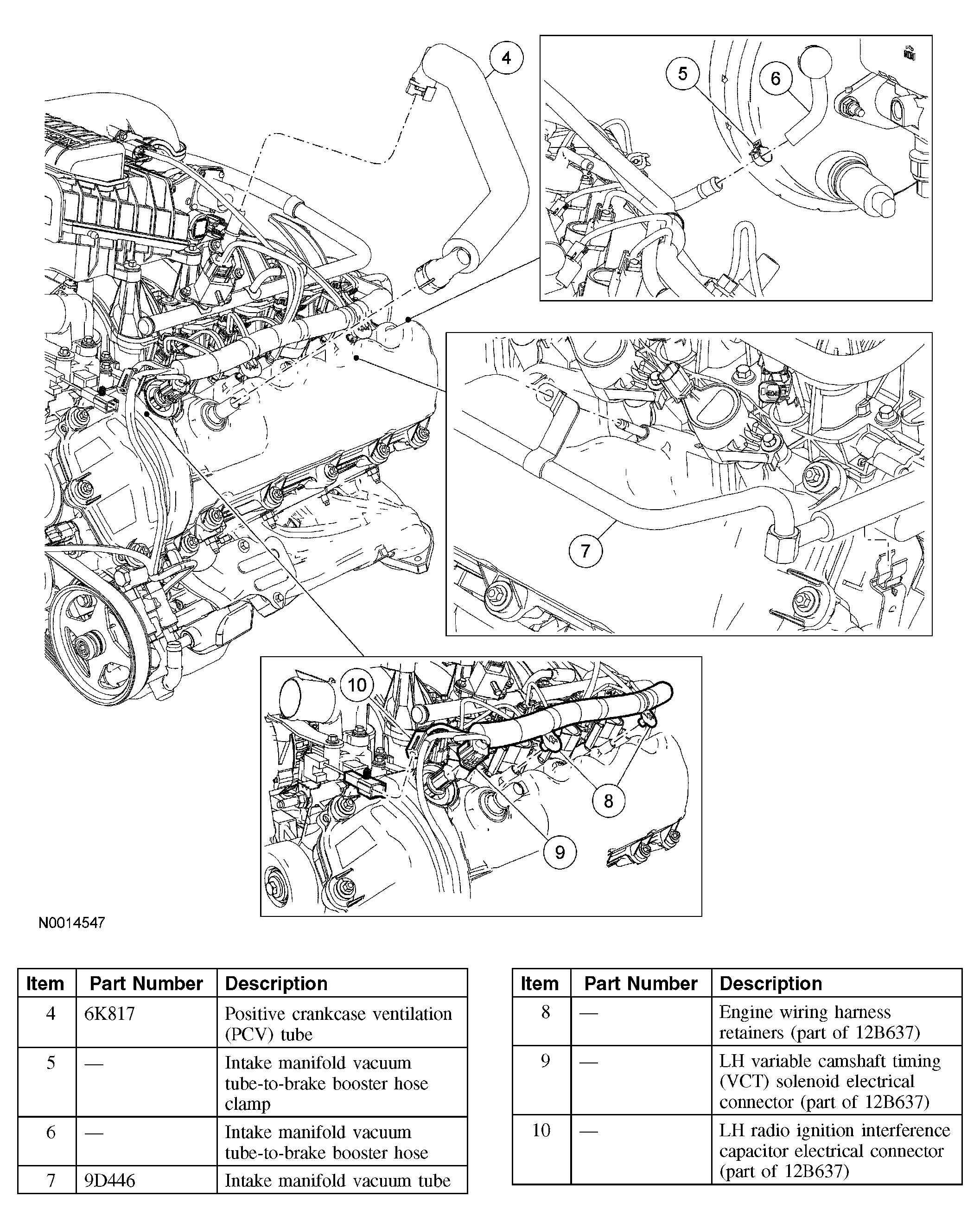

Fig 2: Exploded View Of Valve Cover - LH (Items 4-10)

Courtesy of FORD MOTOR CO.

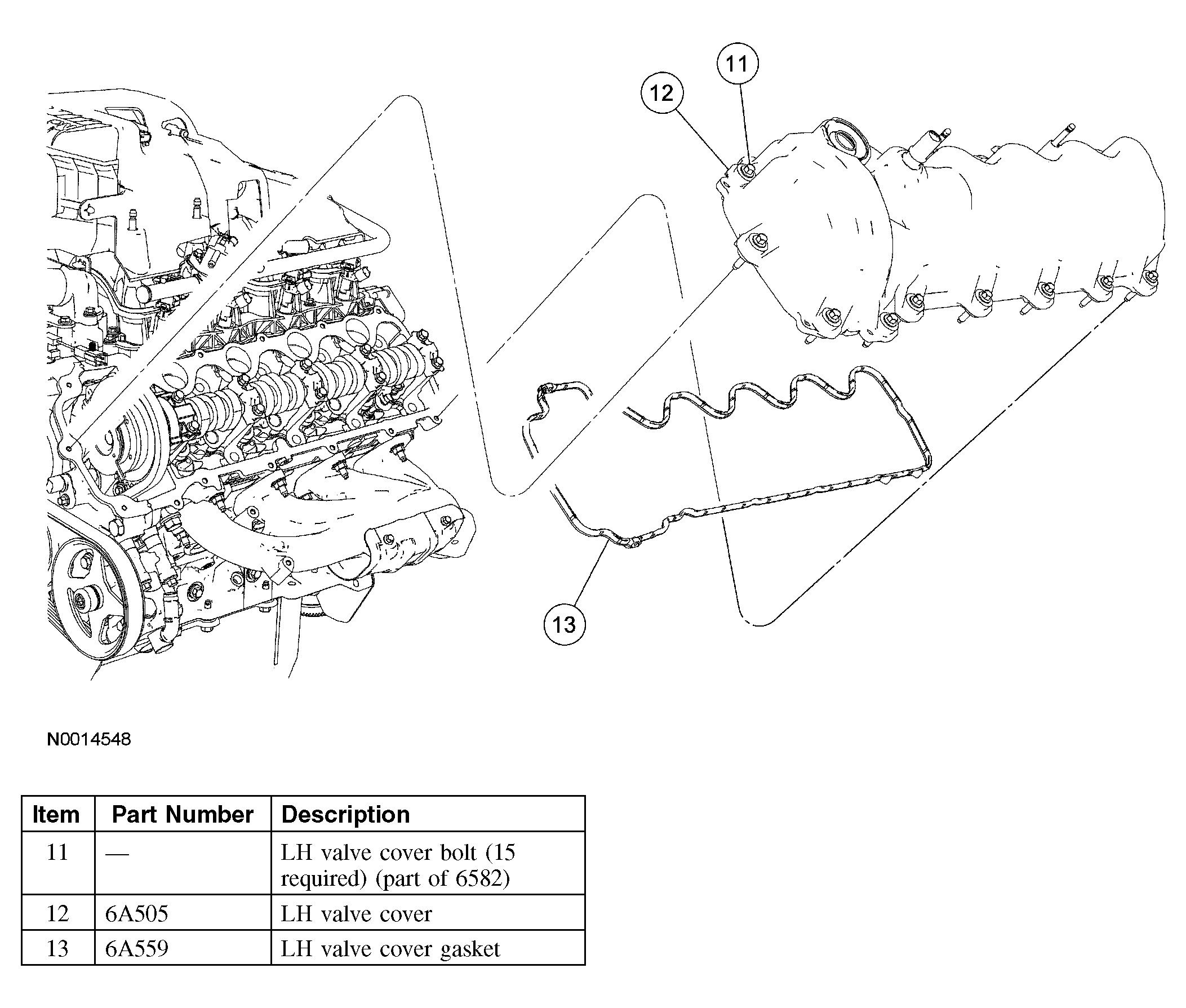

Fig 3: Exploded View Of Valve Cover - LH (Items 11-13)

Courtesy of FORD MOTOR CO.
