Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the interior front door handle. For additional information, refer to INTERIOR DOOR HANDLE - FRONT  in this article.
  3. Remove the retaining clips.

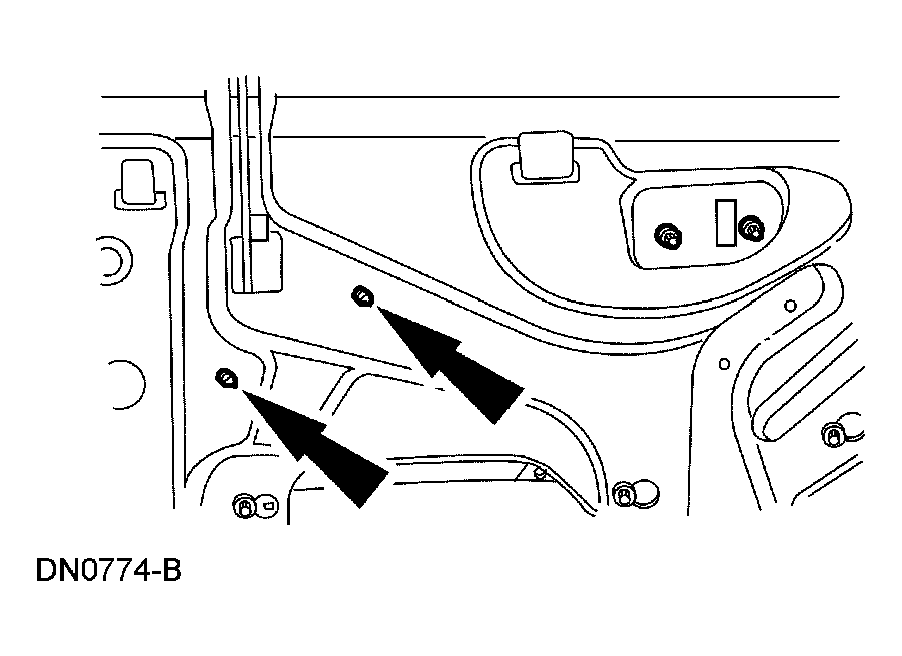

    Fig 1: Removing Retaining Clips
    G03911846Courtesy of FORD MOTOR CO.
  4. Remove the front door latch remote control.
    1. Remove the cable conduit.
    2. Remove the cable.
    3. Remove the remote control.
      Fig 2: Removing Front Door Latch Remote Control
      G03911847Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
