Component Locations

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For component locations, see COMPRESSED NATURAL GAS COMPONENT LOCATIONS table. See Fig 1 and Fig 2 .

COMPRESSED NATURAL GAS COMPONENT LOCATIONS

Application	Location
Fuel Pressure Regulator	On Frame Rail
Fuel Pressure Relief Valve	On Fuel Rail
Powertrain Control Module	Right Rear Of Engine Compartment

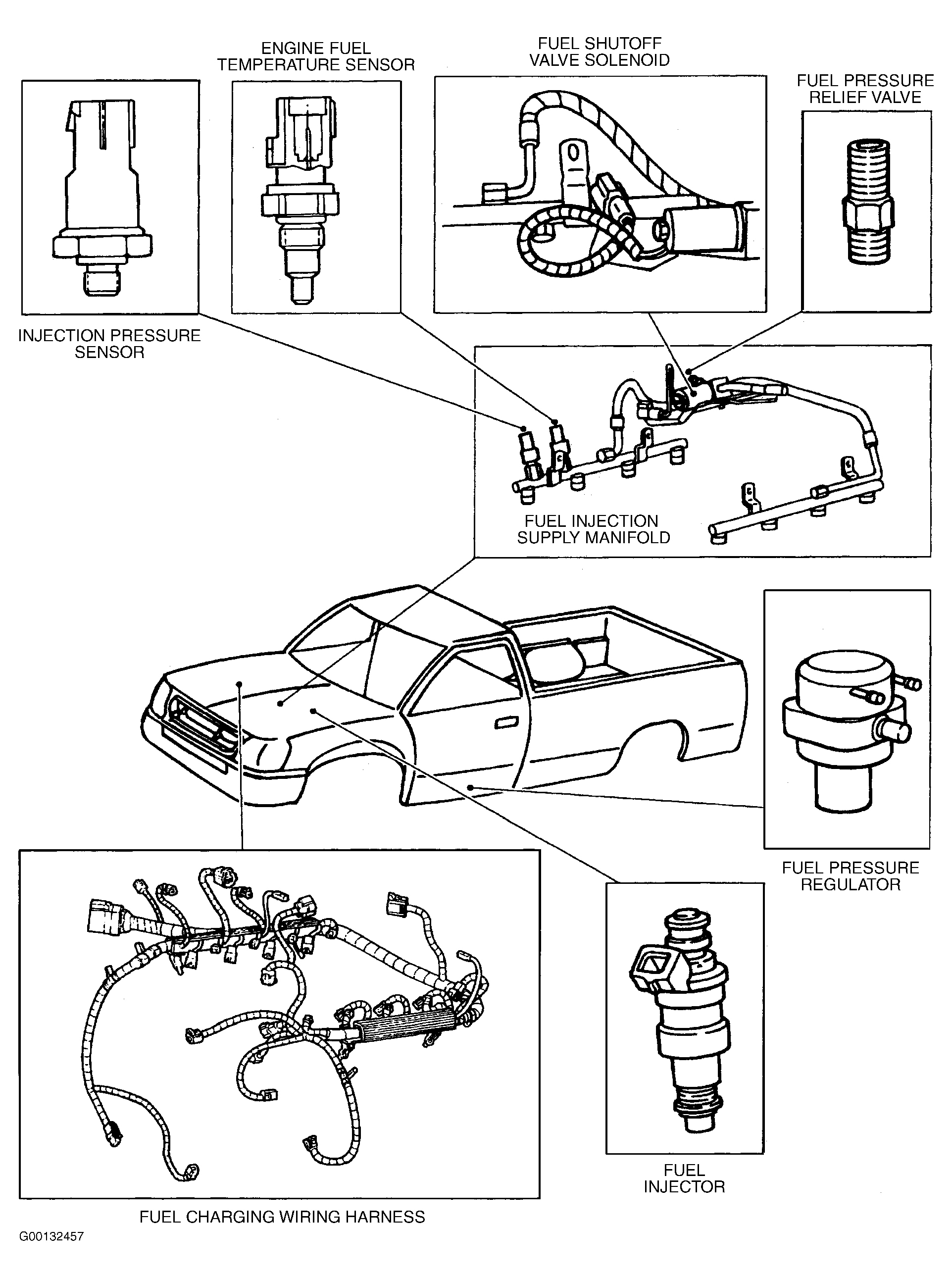

Fig 1: Locating Fuel System Components

Courtesy of FORD MOTOR CO.

Fig 2: Locating Natural Gas Vehicle Components

Courtesy of FORD MOTOR CO.
