Removal & Installation

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

CNG intake manifold removal and installation procedure is not available from manufacturer. For intake manifold removal and installation procedure, see INTAKE MANIFOLD under AIR INDUCTION SYSTEMS in REMOVAL, OVERHAUL & INSTALLATION - BLACKWOOD, EXPEDITION, F150 PICKUP & NAVIGATOR - GASOLINE article. Some components in removal and installation procedure are not installed on CNG vehicles and will not need to be removed.

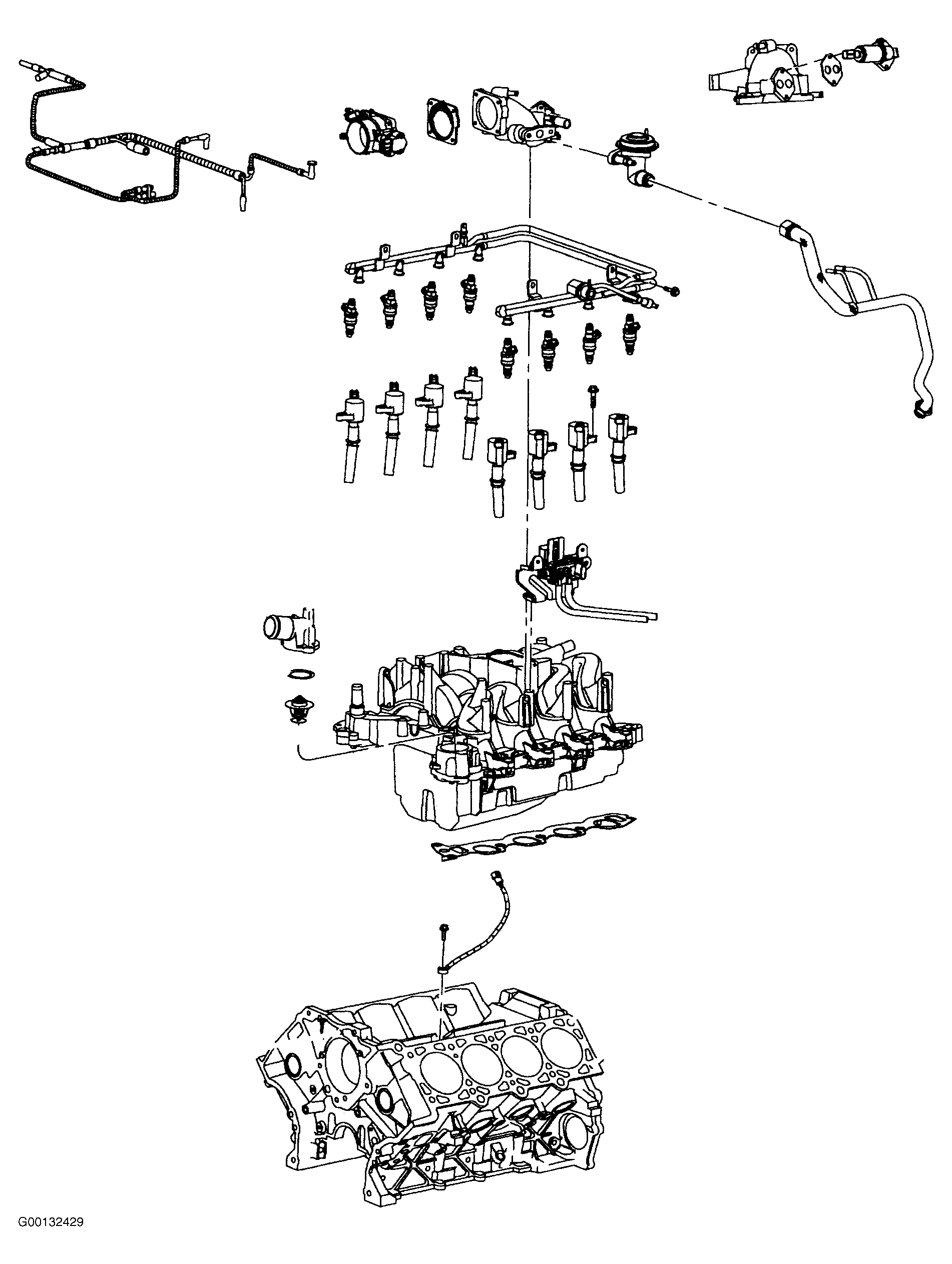

Fig 1: Exploded View Of Intake Manifold Components (Gasoline Shown; CNG Is Similar)
G00132429Courtesy of FORD MOTOR CO.
Fig 2: Intake Manifold Tightening Sequence
G00132438Courtesy of FORD MOTOR CO.
