Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: New Teflon® seals must be installed any time the power steering line fittings are disconnected.

Vehicles equipped with 6.8L gas or 6.0L diesel engines

Remove the engine air cleaner. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .

Vehicles equipped with 5.4L engines

Remove the air cleaner intake pipe. For additional information, refer to AIR CLEANER INTAKE PIPE -- 5.4L (3V) .

Vehicles equipped with 6.0L diesel

NOTE: If there is any oil residue, clean both connecting ports and the inside surface of the charge air cooler duct to prevent the duct from blowing off.

Loosen the clamps and remove the duct.
- To install, tighten to 12 Nm (9 lb-ft).

  Fig 1: Removing Duct
  Courtesy of FORD MOTOR CO.

All vehicles

Disconnect the steering gear coupling shield from the line fittings and slide the shield upward on the intermediate shaft.

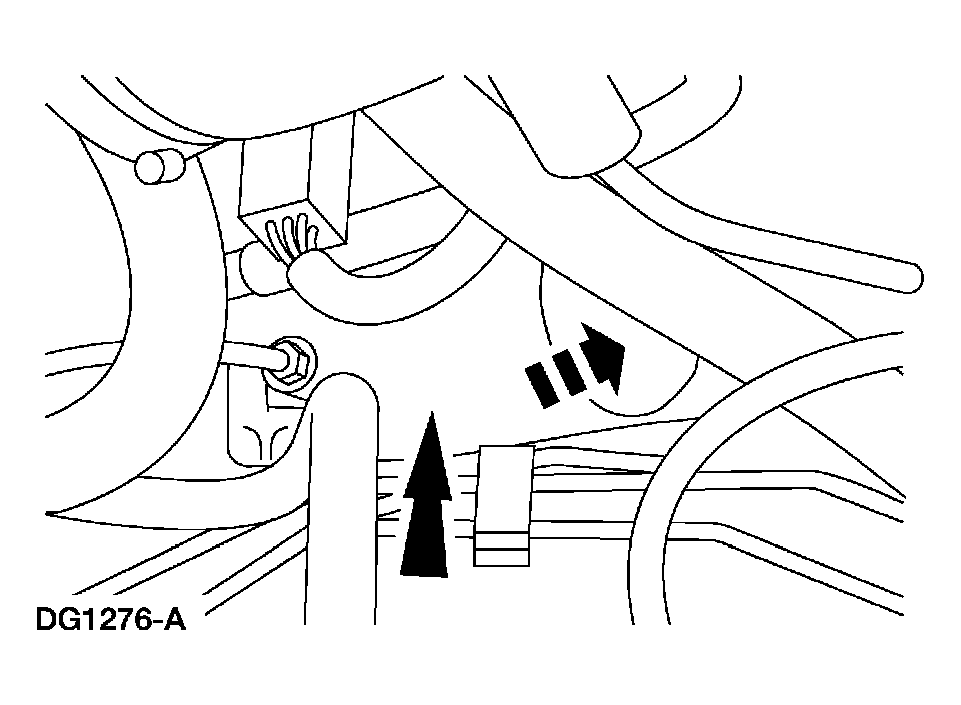

Fig 2: Disconnecting Steering Gear Coupling Shield From Line Fittings
Courtesy of FORD MOTOR CO.
Remove the intermediate shaft-to-steering gear bolt.

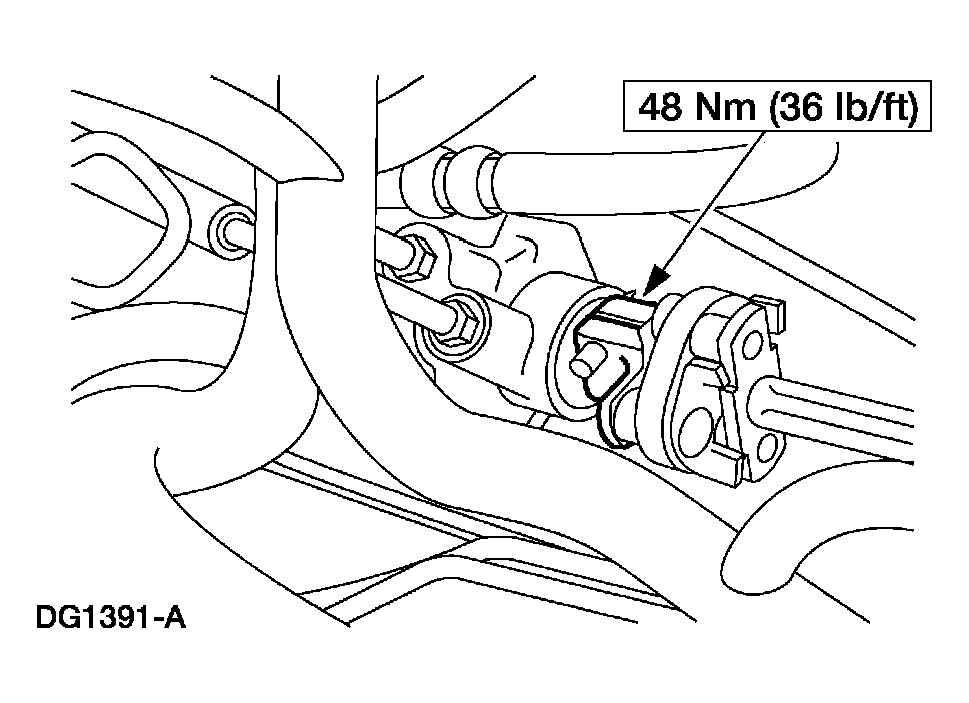

Fig 3: Removing Intermediate Shaft-To-Steering Gear Bolt
Courtesy of FORD MOTOR CO.

CAUTION: During installation, do not overtighten the fittings.

Disconnect the power steering lines.
- Discard the Teflon® seals.

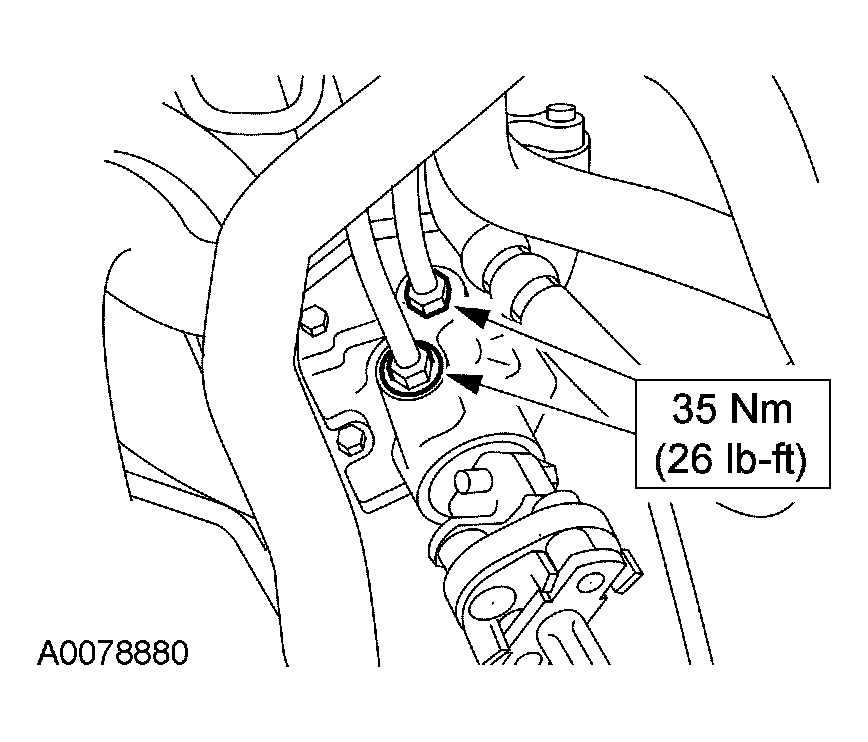

  Fig 4: Disconnecting Power Steering Lines
  Courtesy of FORD MOTOR CO.
With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .

NOTE: F250-F350 shown, F450-F550 similar.

Remove the cotter pin and the drag link-to-sector shaft nut.
- Discard the cotter pin.

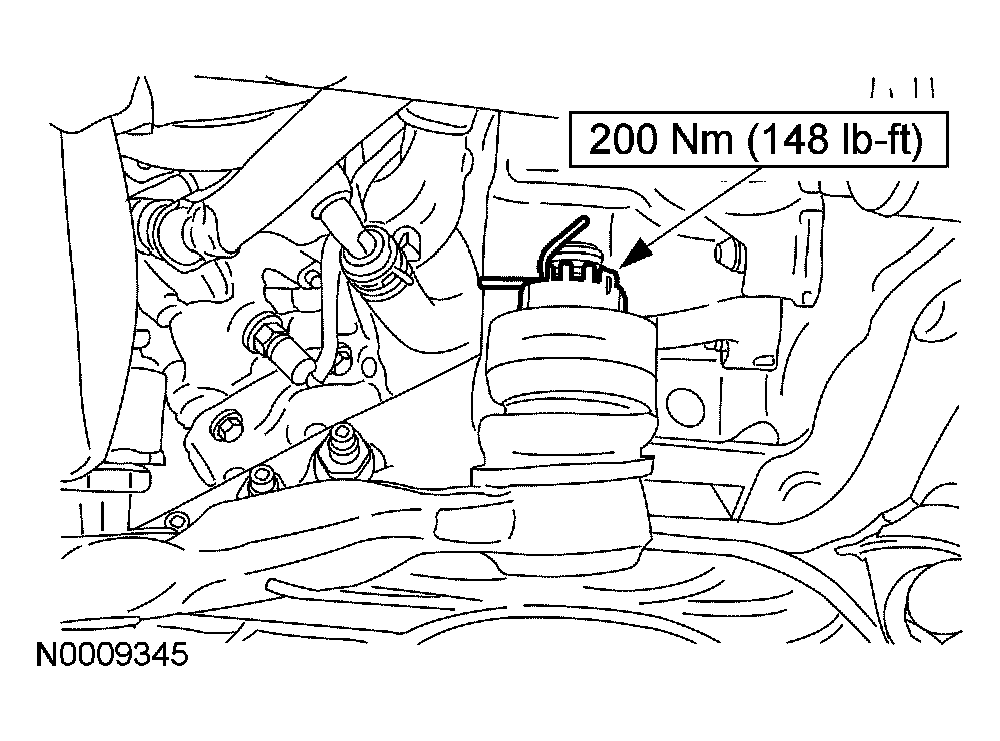

  Fig 5: Removing Cotter Pin
  Courtesy of FORD MOTOR CO.

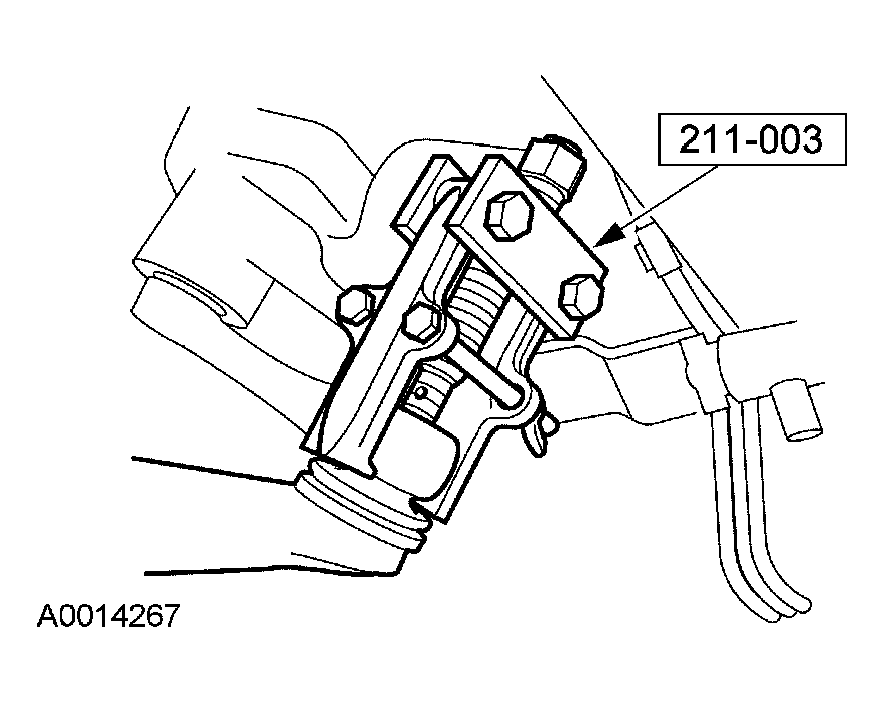

Using the special tool, disconnect the drag link from the sector shaft arm.

Fig 6: Disconnecting Drag Link From Sector Shaft Arm
Courtesy of FORD MOTOR CO.

F-250, F-350 vehicles

NOTE: The steering gear bolts have a dry adhesive on the threads. The bolts must not be reused.

Remove the 3 bolts and the steering gear.
- Discard the bolts.

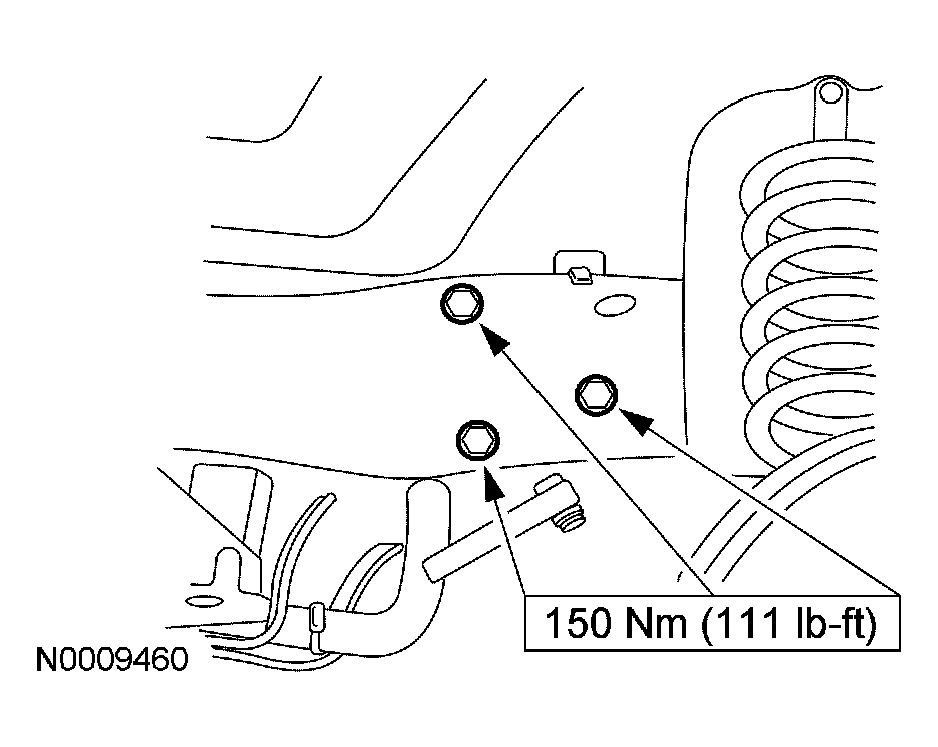

  Fig 7: Removing Bolts Of Steering Gear
  Courtesy of FORD MOTOR CO.

F-450, F-550 vehicles

NOTE: The steering gear bolts have a dry adhesive on the threads. The bolts must not be reused.

Remove the 3 bolts and the steering gear.
- Discard the bolts.

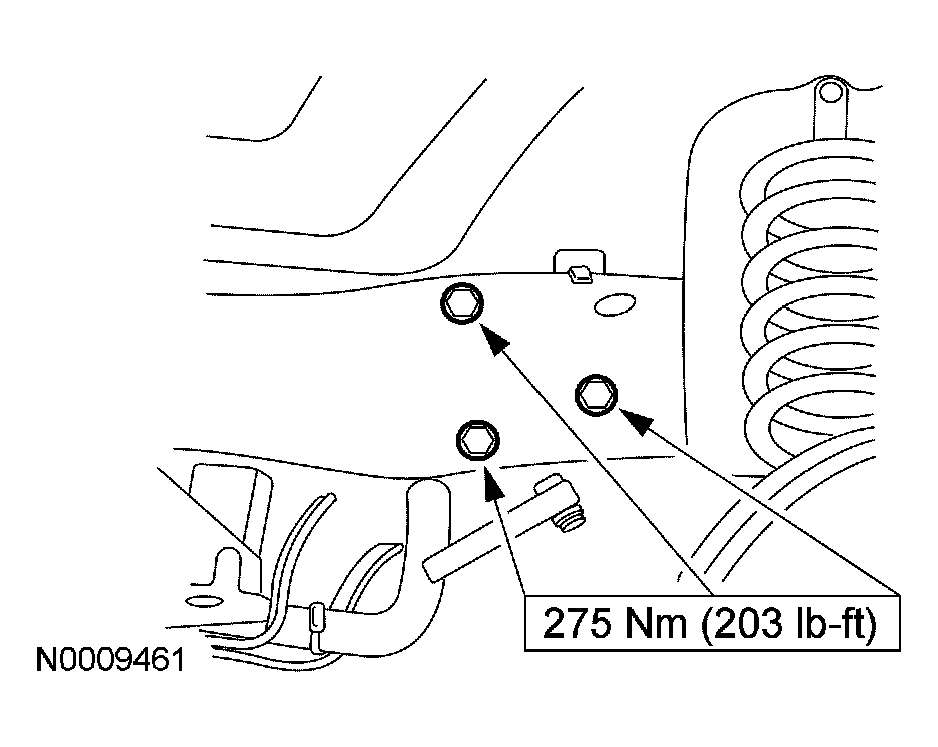

  Fig 8: Removing Bolts Of Steering Gear
  Courtesy of FORD MOTOR CO.

All vehicles

NOTE: The sector shaft arm-to-sector shaft nut has a dry adhesive on the threads. The nut must not be reused.

Remove the sector shaft arm-to-sector shaft nut.
- Discard the nut.

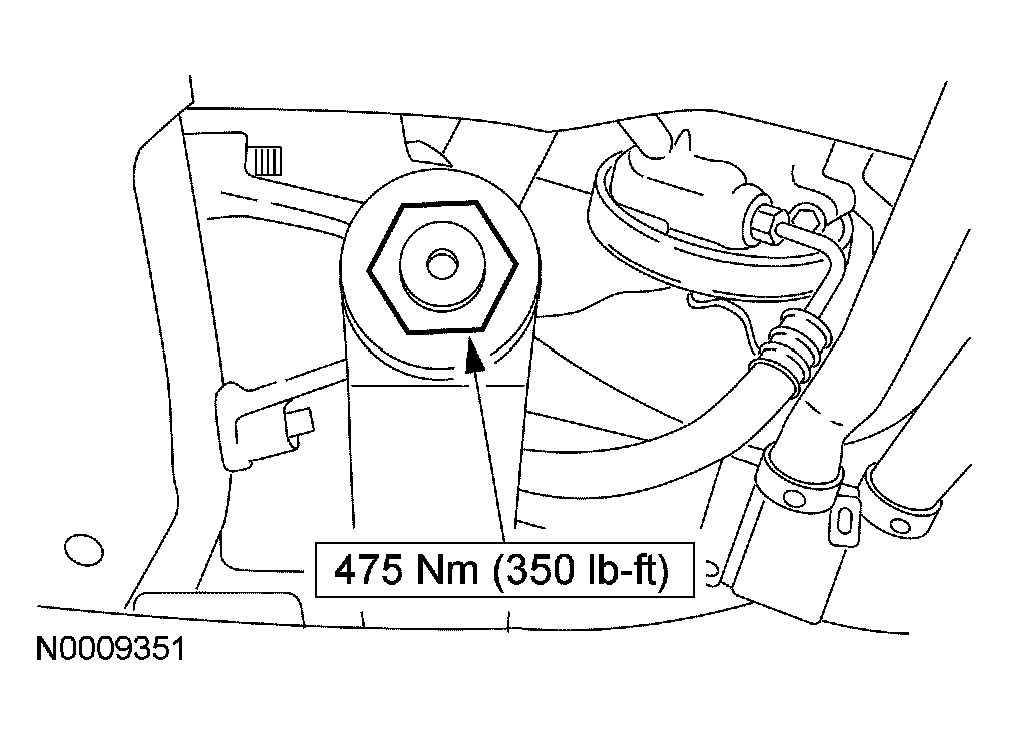

  Fig 9: Removing Sector Shaft Arm-To-Sector Shaft Nut
  Courtesy of FORD MOTOR CO.

F-250, F-350 vehicles

Using the special tool, remove the sector shaft arm.

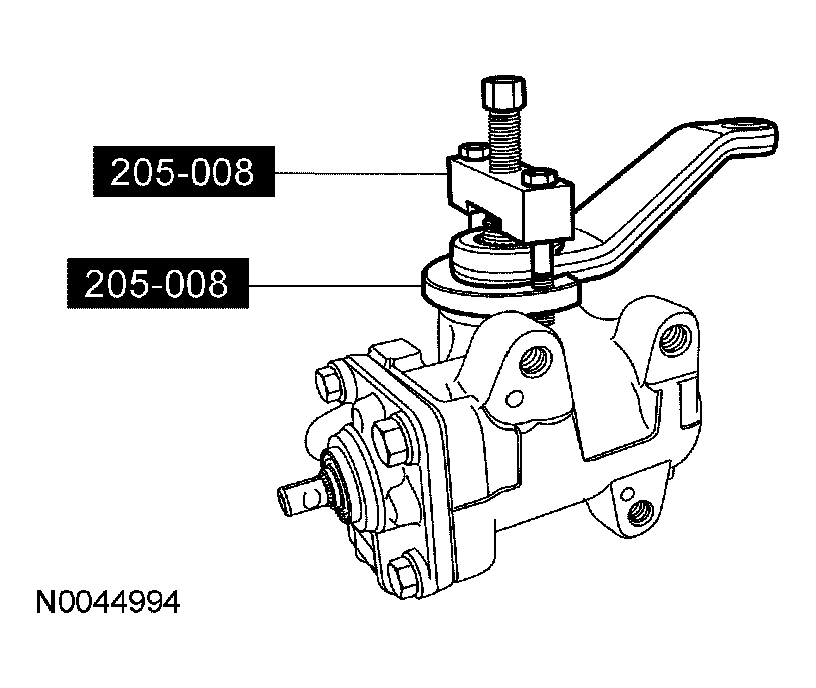

Fig 10: Removing Sector Shaft Arm
Courtesy of FORD MOTOR CO.

F-450, F-550 vehicles

Using the special tool and 2 grade 8 bolts, 90 mm (3.54 in), separate the sector shaft arm from the steering gear.

Fig 11: Separating Sector Shaft Arm From Steering Gear
Courtesy of FORD MOTOR CO.

All vehicles

To install, reverse the removal procedure.
- Using the special tool, install 2 new Teflon® seals on the power steering line fittings.
- Fill the power steering system. For additional information, refer to POWER STEERING SYSTEM FILLING .

  Fig 12: Installing Teflon(R) Seal On Power Steering Pressure Hose Fitting
  Courtesy of FORD MOTOR CO.
