Exhaust System - Exploded View

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Vehicle body removed for clarity.

NOTE: Exhaust systems will vary by wheelbase.

NOTE: Frames will vary by width and length.

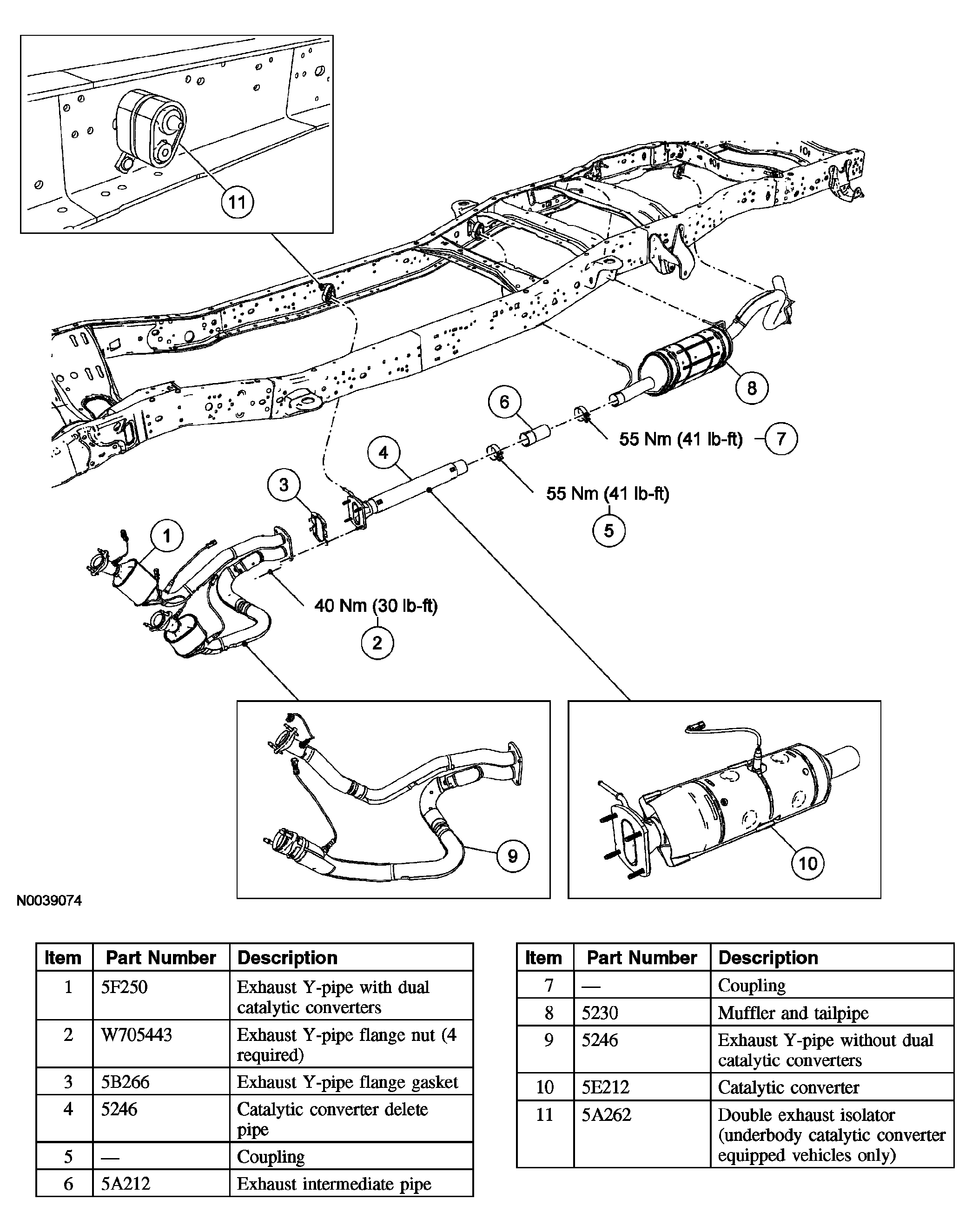

Fig 1: Exploded View Of Exhaust System - Gasoline Engine

Courtesy of FORD MOTOR CO.

NOTE: Vehicle body removed for clarity.

NOTE: Exhaust systems will vary by wheelbase.

NOTE: Frames will vary by width and length.

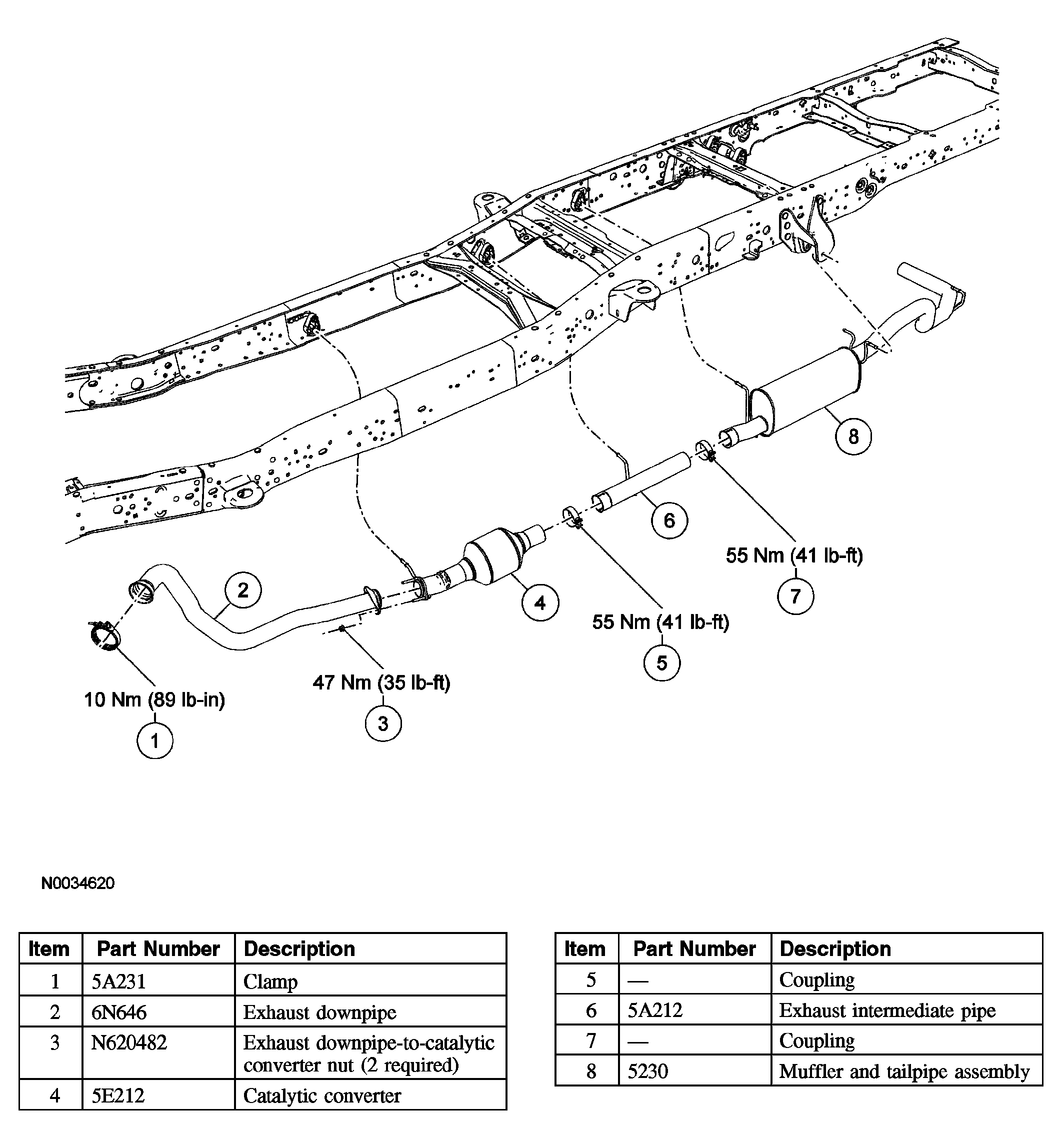

Fig 2: Exploded View Of Exhaust System - Diesel Engine

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
