Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the parking brake shoes. For additional information, refer to PARKING BRAKE SHOES .
Release the parking brake cable from the LH parking brake assembly.

Fig 1: Locating Parking Brake Cable At LH Bracket Assembly
Courtesy of FORD MOTOR CO.
Rotate the parking brake cable 90 degrees to release it from the parking brake actuating lever.

Fig 2: Locating Parking Brake Actuating Levers
Courtesy of FORD MOTOR CO.
Remove the 4 brake caliper support bracket nuts.

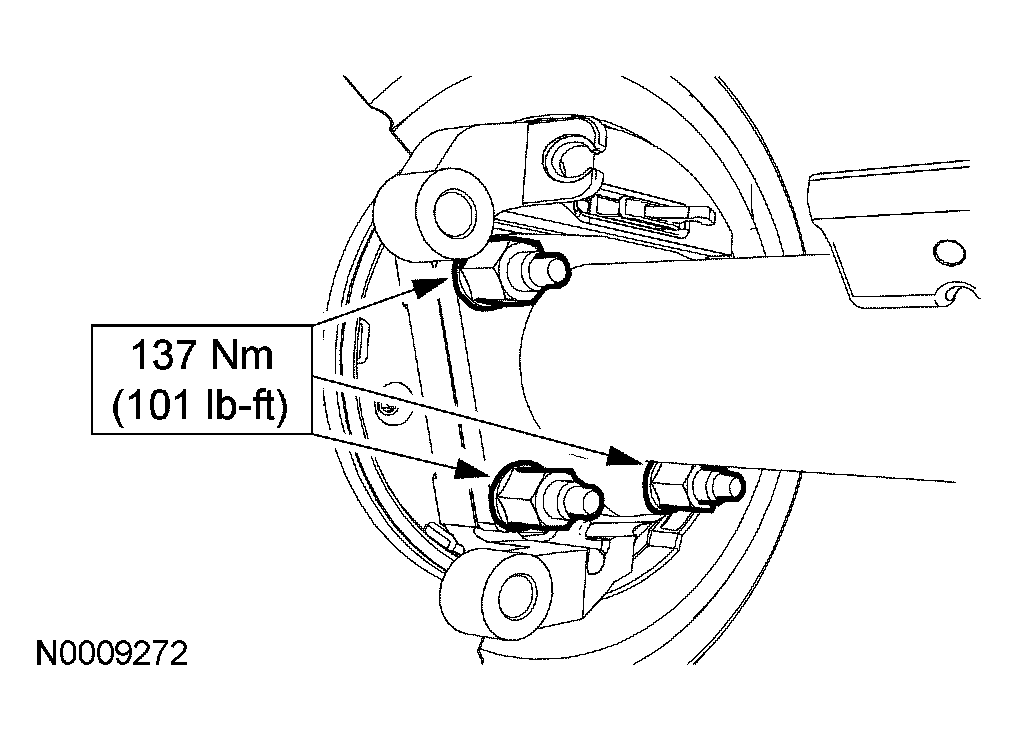

Fig 3: Removing 4 Brake Caliper Support Bracket Nuts
Courtesy of FORD MOTOR CO.
Remove the brake caliper support bracket and disc shield assembly.

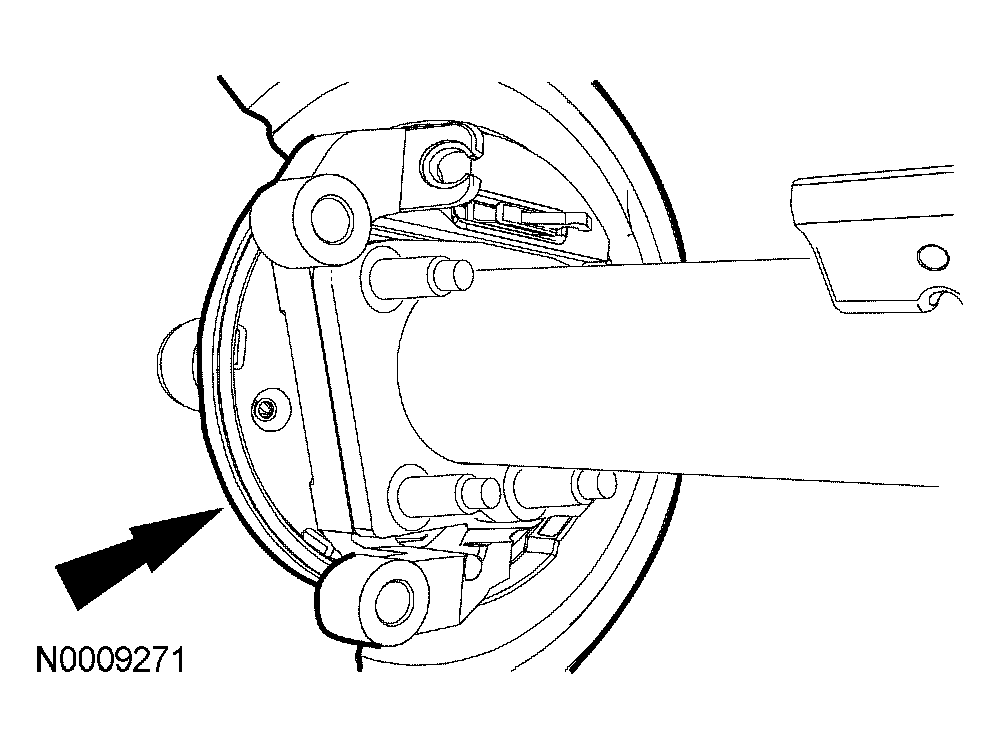

Fig 4: Removing Brake Caliper Support Bracket And Disc Shield Assembly
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
