Safety Belt - Rear 4-Passenger Bench Seat: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Use the Safety Belt Bolt Torx Bit to remove the LH rear safety belt and buckle bolt.

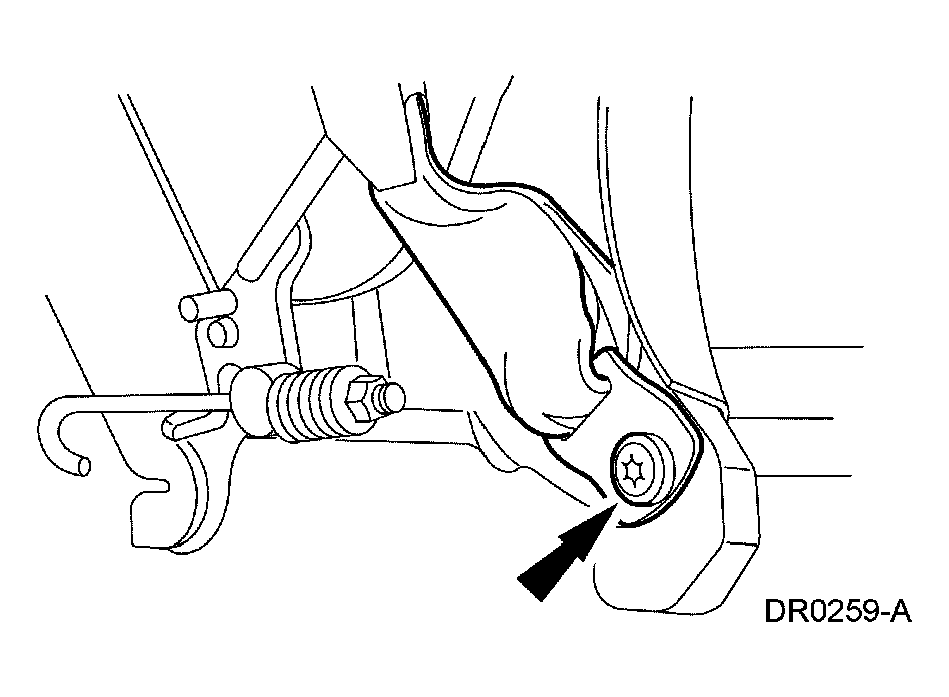

Fig 1: Identifying LH Rear Safety Belt Buckle Bolt
Courtesy of FORD MOTOR CO.
Remove the LH rear safety belt and buckles.

Fig 2: Identifying LH Rear Safety Belt And Buckles
Courtesy of FORD MOTOR CO.
Use the Safety Belt Bolt Torx Bit to remove the safety belt and tongue bolt.

Fig 3: Locating Tongue Bolt
Courtesy of FORD MOTOR CO.
Remove the safety belt and tongue.

Fig 4: Identifying Safety Belt And Tongue
Courtesy of FORD MOTOR CO.
Use the Safety Belt Bolt Torx Bit to remove the RH rear safety belt and buckle bolt.

Fig 5: Identifying RH Rear Safety Belt Buckle Bolt
Courtesy of FORD MOTOR CO.
Remove the RH rear safety belt and buckle.

Fig 6: Identifying RH Rear Safety Belt And Buckle
Courtesy of FORD MOTOR CO.
