Retractor - Front Safety Belt and Tongue: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the safety belt webbing is not twisted prior to installation.

NOTE: Make sure to tighten bolts to specification.

NOTE: Inspect the shoulder safety belt guide cover for damage. If the shoulder safety belt guide cover is damaged or if it does not remain closed, install a new shoulder safety belt guide.

To install, reverse the removal procedure.
- Check the active restraint system for correct operation.

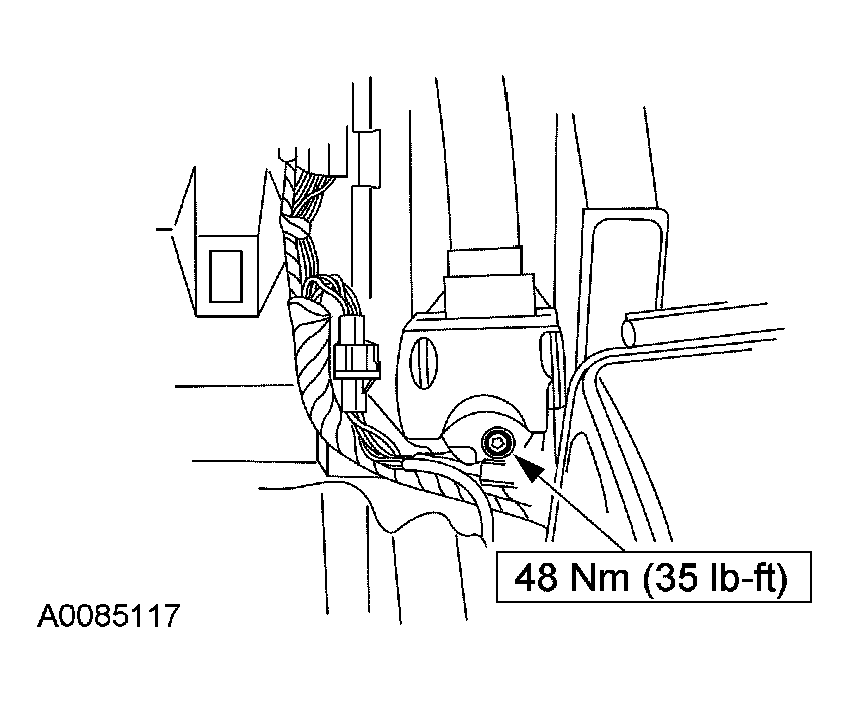

  Fig 1: Safety Belt And Anchor Bolt Torque Specification
  Courtesy of FORD MOTOR CO.

  Fig 2: Bolt Torque Specification
  Courtesy of FORD MOTOR CO.

  Fig 3: Safety Belt Bolt Torque Specification
  Courtesy of FORD MOTOR CO.

  Fig 4: Safety Belt Guide Nut Torque Specification
  Courtesy of FORD MOTOR CO.
