Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood (16612).
  2. Remove the air cleaner assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  3. Remove the A/C condenser air deflector (19E672).
    • Remove the pushpins attaching the radiator air deflector.

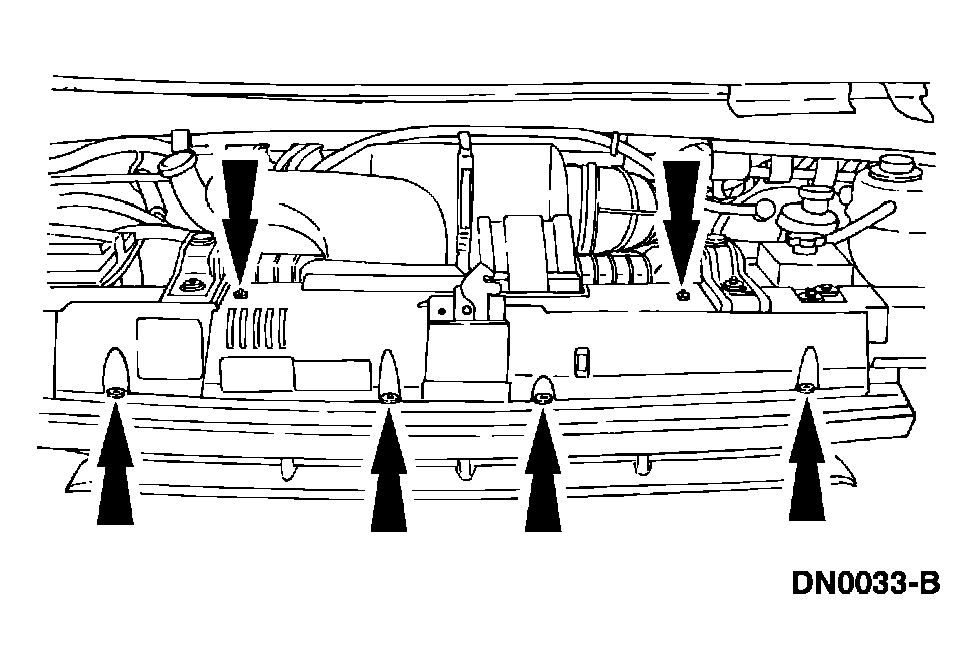

      Fig 1: Removing Upper A/C Condenser Air Deflector
      G03890639Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
