Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear hi-mount lamp screws.
    Fig 1: Removing Rear Hi-Mount Lamp Screws
    G03890525Courtesy of FORD MOTOR CO.
  2. Remove the rear hi-mount lamp.

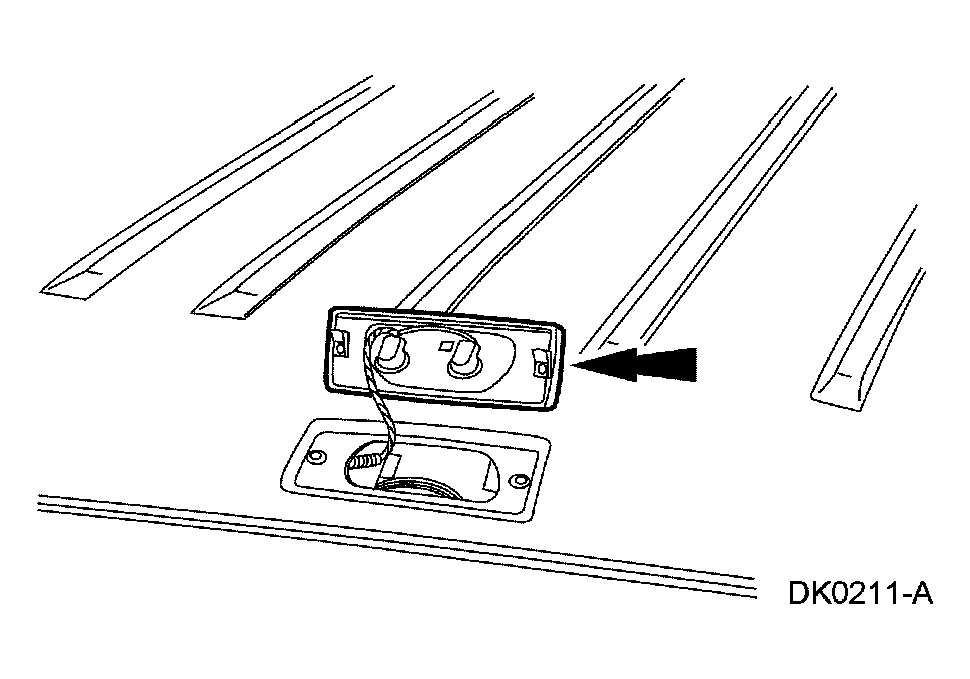

    Fig 2: Removing Rear Hi-Mount Lamp
    G03890530Courtesy of FORD MOTOR CO.
  3. Disconnect the electrical connectors.
  4. To install, reverse the removal procedure.
