Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake manifold. For additional information, refer to ENGINE - 4.6L AND 5.4L (4.6L and 5.4L engines) or Engine - 6.8L . (6.8L engines).
  2. Remove the knock sensor (KS).
    1. Disconnect the electrical connector.
    2. Remove the nut and the KS.

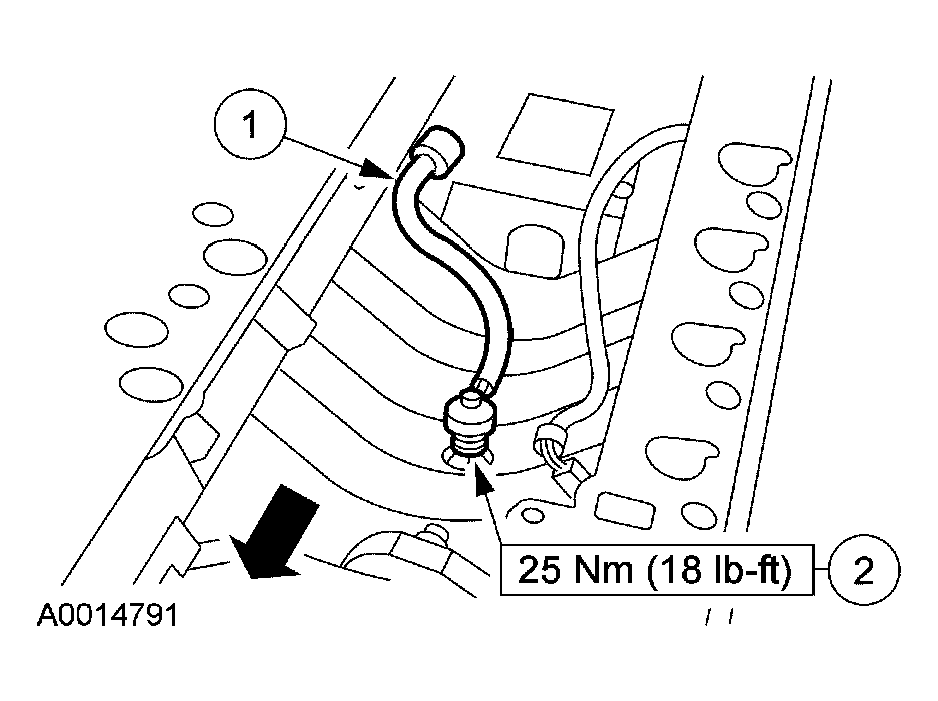

      Fig 1: Removing Knock Sensor (KS)
      G03888378Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
