5.4L EGR System

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The 5.4L engines are equipped with an EGR system. The function of the EGR system is to reduce the emission of nitrogen oxide (NOx).

The EGR system returns a portion of the exhaust gas to the intake manifold to reduce the combustion temperature. This reduces the oxides of nitrogen (NOx) in the exhaust emissions.

The PCM controls the EGR vacuum regulator solenoid. The EGR vacuum regulator solenoid controls the vacuum to the EGR valve. When the EGR valve opens, exhaust gas flows to the intake manifold. The differential pressure feedback EGR sensor measures the flow through the EGR valve to exhaust manifold tube and sends a signal to the PCM. A metering orifice in the EGR valve to exhaust manifold tube restricts the flow rate when the EGR valve is open.

For further description and operation, See INTRODUCTION - GASOLINE and/or INTRODUCTION -- 6.0L DIESEL .

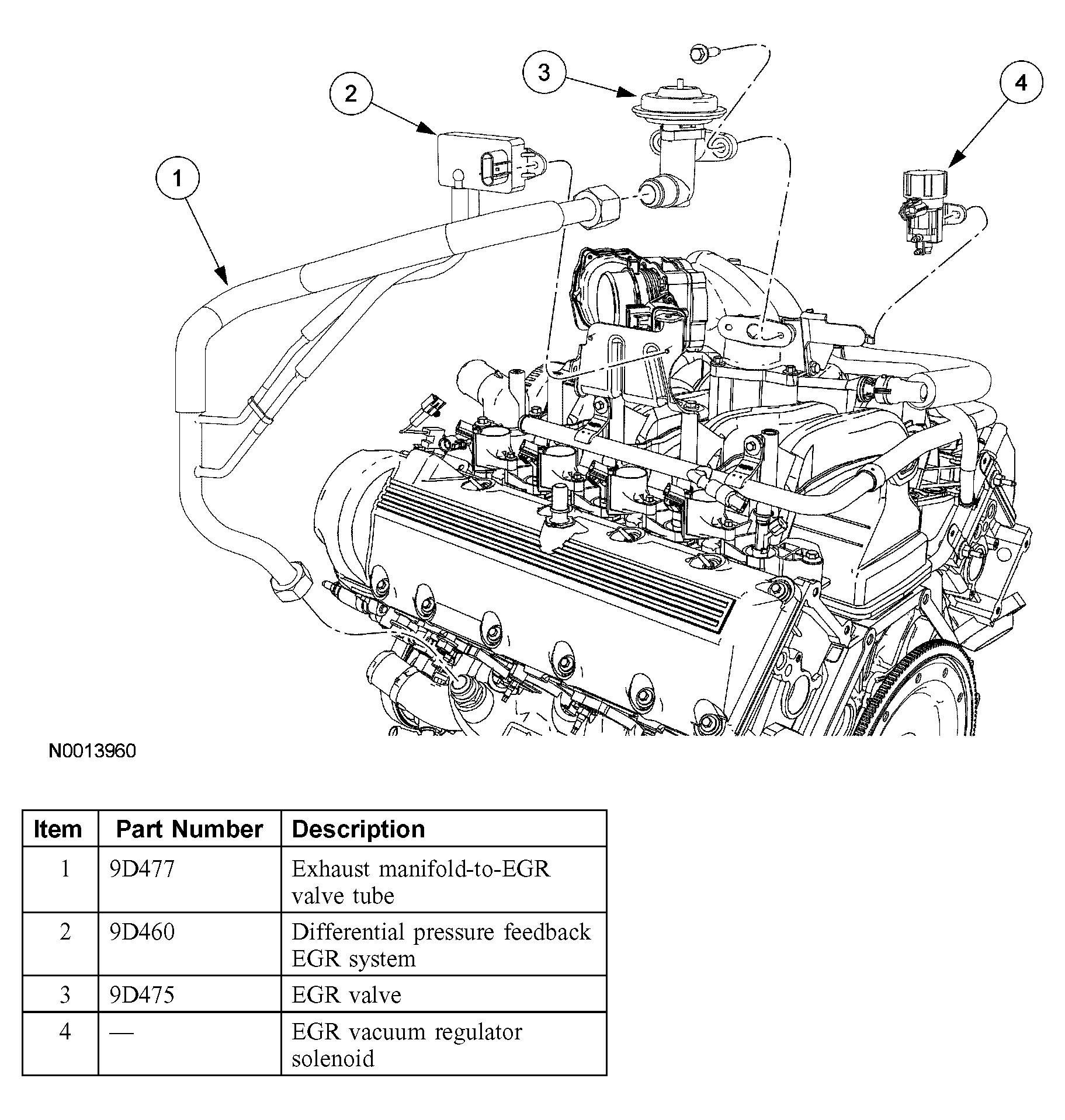

Fig 1: Identifying Exhaust Gas Recirculation (EGR) System (5.4L)

Courtesy of FORD MOTOR CO.
