Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Do not carry out this repair until the engine has cooled. Failure to follow these instructions may result in personal injury.

Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Disconnect the wiring harness from the oil filter tube. Loosen the retaining nut and position the oil tube clamp aside.

Fig 1: Loosening Oil Tube Clamp Retaining Nut
Courtesy of FORD MOTOR CO.
Remove the bolts and position aside the exhaust heat shield.

Fig 2: Removing Exhaust Heat Shield Bolts
Courtesy of FORD MOTOR CO.

NOTE: It will be necessary to position back or remove the heat insulating wrap.

Fig 3: Disconnecting Injection Pressure Regulator (IPR) Valve Electrical Connector

Courtesy of FORD MOTOR CO.

Disconnect the injection pressure regulator (IPR) valve electrical connector.
Unsnap and remove the heat insulating wrap.

Fig 4: Removing Heat Insulating Wrap
Courtesy of FORD MOTOR CO.

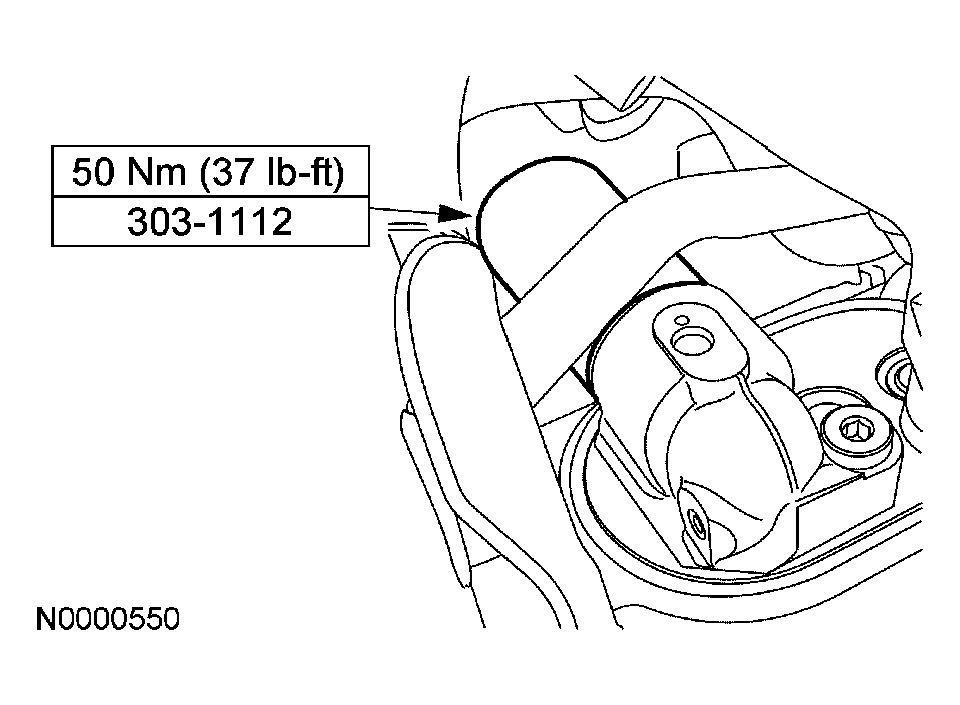

Using the special tool, remove the IPR valve.

Fig 5: Removing IPR Valve
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
