Engine Rear Cover: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Apply a bead of sealant at the back seam of the upper and lower crankcase.

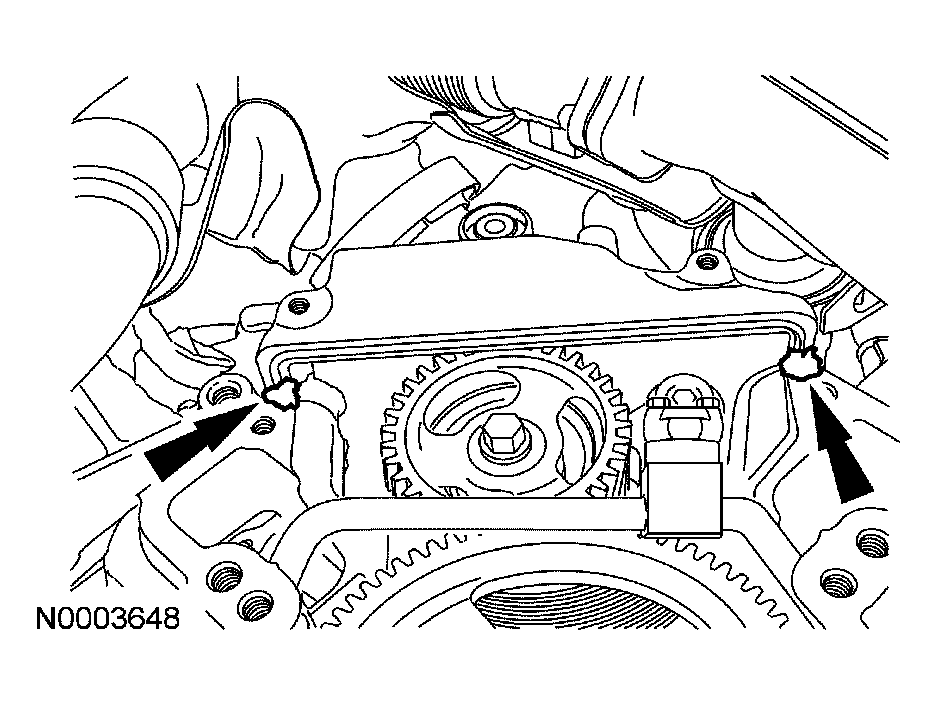

Fig 1: Applying Sealant To Upper And Lower Crankcase
Courtesy of FORD MOTOR CO.
Apply a bead of sealant at the oil pump cover joint.

Fig 2: Applying Bead Of Sealant At Oil Pump Cover Joint
Courtesy of FORD MOTOR CO.
Install the rear engine cover.
- Install the press in place gasket.
- Install the rear engine cover.
- Install the bolts.

  Fig 3: Installing Rear Engine Cover
  Courtesy of FORD MOTOR CO.
Install the turbocharger heat shield and bolts.

Fig 4: Turbocharger Heat Shield Bolts - With Torque Specification
Courtesy of FORD MOTOR CO.

NOTE: The crankshaft rear oil seal and wear sleeve are installed as an assembly.

NOTE: Lubricate the outer diameter of the rubber seal with a solution of dish soap and water (approximately 50/50) prior to assembly. Do not use any other type of lubricant.

NOTE: Apply a bead of High Strength Threadlocker around the circumference of the outer rear edge of the secondary crankshaft flange.

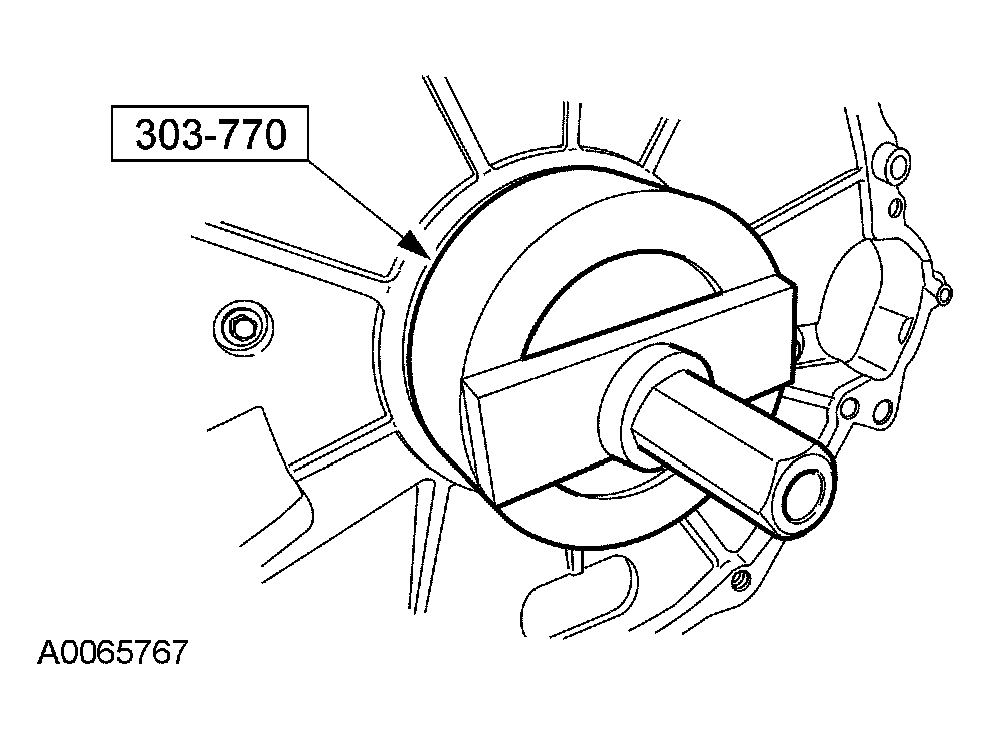

Fig 5: Installing Crankshaft Rear Oil Seal Using Special Tool

Courtesy of FORD MOTOR CO.

Using the special tool, install the crankshaft rear oil seal.
Install the front flywheel adapter.

Fig 6: Identifying Flywheel Front Adapter
Courtesy of FORD MOTOR CO.
Install the flexplate and install the new bolts.
- Tighten to 5 Nm (44 lb-in).
- Tighten to 94 Nm (69 lb-ft) in the sequence shown in Fig 7.

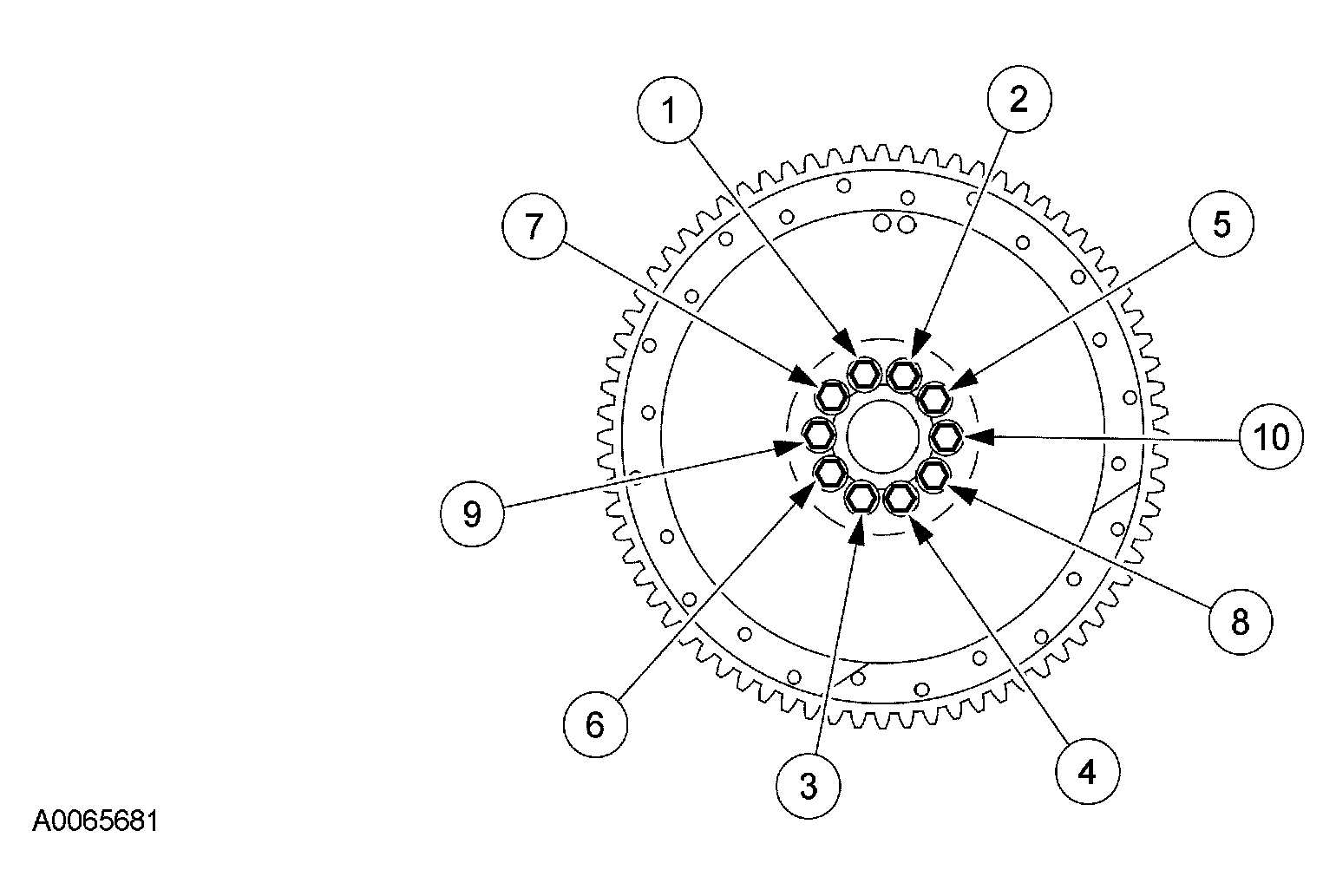

  Fig 7: Tightening Bolts In Sequence
  Courtesy of FORD MOTOR CO.
Install the transmission. For additional information, refer to TRANSAXLE/TRANSMISSION - TORQSHIFT .
Install the starter. For additional information, refer to STARTING SYSTEM - DIESEL ENGINE .
