Engine Mount: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Remove the cooling fan stator. For additional information, refer to ENGINE COOLING .
  4. Remove the A/C compressor. For additional information, refer to HEATING & VENTILATION .
  5. Remove the power steering pump upper mounting bolt.
    Fig 1: Removing Power Steering Pump Upper Mounting Bolt
    G03887251Courtesy of FORD MOTOR CO.
  6. Remove the LH fan stator stand-off.
    Fig 2: Removing LH Fan Stator Stand-Off
    G03887252Courtesy of FORD MOTOR CO.
    7. NOTE: The front bolt will remain in the power steering pump.
    Fig 3: Removing Bolts
    G03887253Courtesy of FORD MOTOR CO.
  7. Remove the bolts and position the power steering pump aside.
  8. Remove the RH fan stator stand off. Remove the bolt and position the cable aside.
    Fig 4: Removing RH Fan Stator Stand Off
    G03887257Courtesy of FORD MOTOR CO.
  9. Loosen the exhaust pipe retaining nuts.
    Fig 5: Loosening Exhaust Pipe Retaining Nuts
    G03887255Courtesy of FORD MOTOR CO.
    10. NOTE: Left side shown, right side similar.
    Fig 6: Removing Motor Mount Retaining Nuts
    G03887256Courtesy of FORD MOTOR CO.
  10. Remove the motor mount retaining nuts.

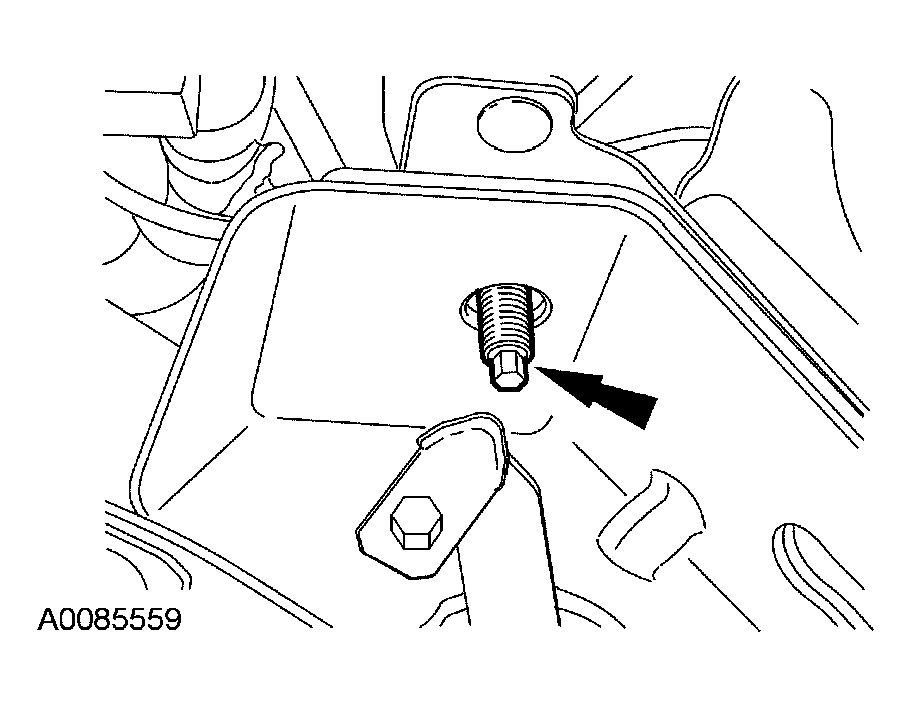

  11. Remove the upper motor mount studs.
    Fig 7: Removing Upper Motor Mount Studs
    G03887354Courtesy of FORD MOTOR CO.
    12. NOTE: Rear bolts shown, front bolts similar.
    Fig 8: Loosening Motor Mount Bolts
    G03887186Courtesy of FORD MOTOR CO.
  12. Loosen the four motor mount bolts for each motor mount.

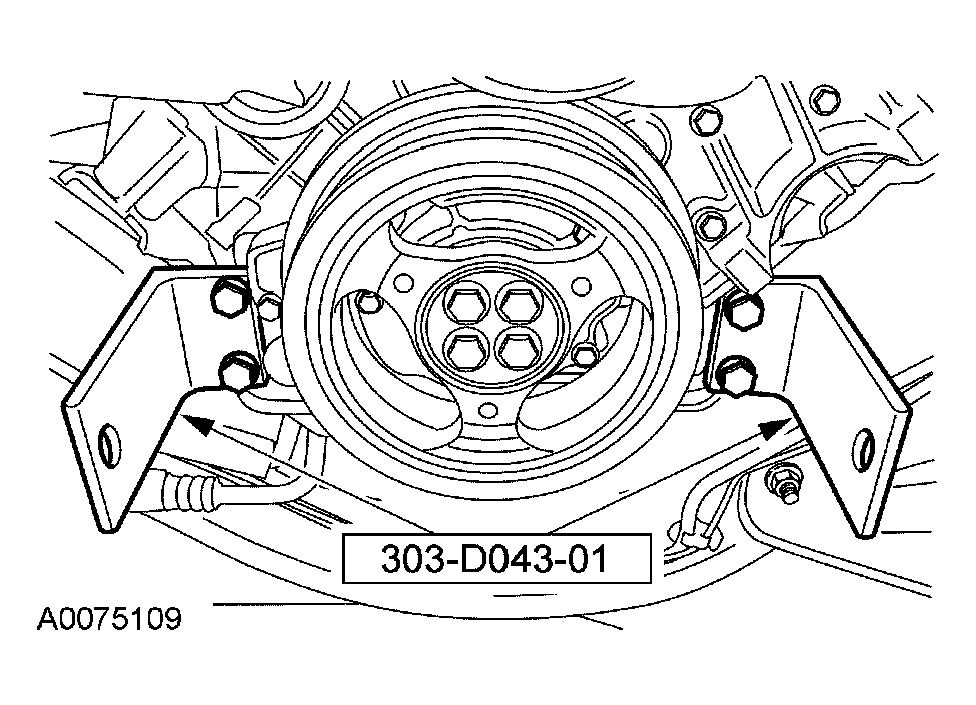

  13. Install the special tools.
    Fig 9: Installing Special Tool
    G03887258Courtesy of FORD MOTOR CO.

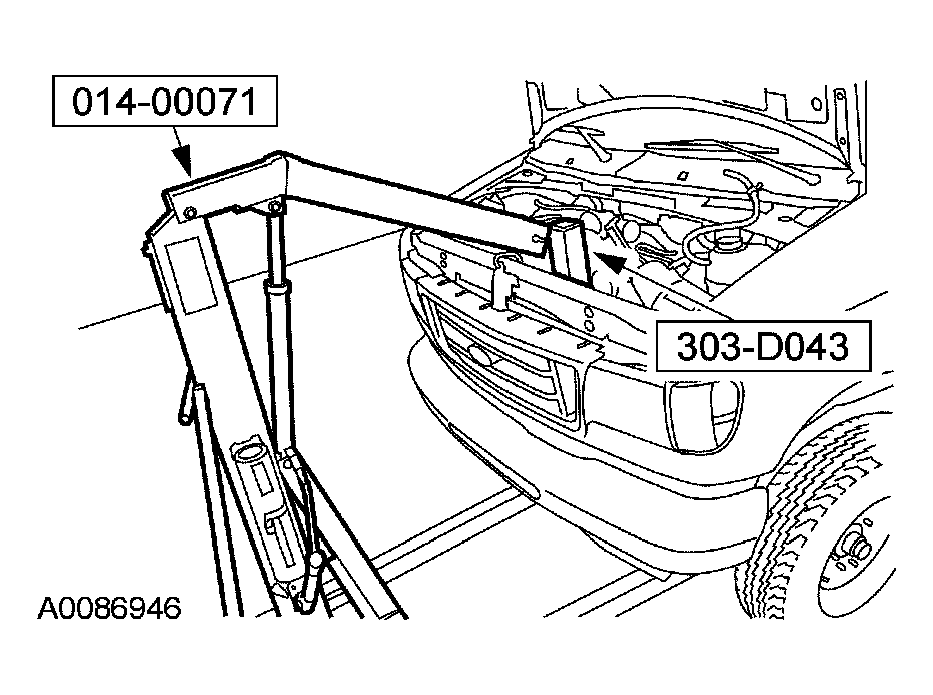

  14. Install the lifting attachment and lifting crane.
    Fig 10: Installing Lifting Attachment
    G03887259Courtesy of FORD MOTOR CO.
    15. CAUTION: Use care when raising the engine to avoid engine or body damage.
  15. Raise the engine.
  16. Remove the bolts and the motor mounts.
    Fig 11: Removing Bolts
    G03887186Courtesy of FORD MOTOR CO.
