Cylinder Head: Assembly

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve stem seal.
    Fig 1: Installing Valve Stem Seal
    G03887610Courtesy of FORD MOTOR CO.
  2. Install the valve.
    Fig 2: Installing Valve
    G03887609Courtesy of FORD MOTOR CO.
  3. Install the valve spring.
    Fig 3: Installing Valve Spring
    G03887608Courtesy of FORD MOTOR CO.
  4. Install the valve spring rotator.
    Fig 4: Installing Valve Spring Rotator
    G03887607Courtesy of FORD MOTOR CO.
  5. Install the valve spring retainer keys.
    1. Install the Valve Spring Compressor.
    2. Install the valve spring retainer keys.

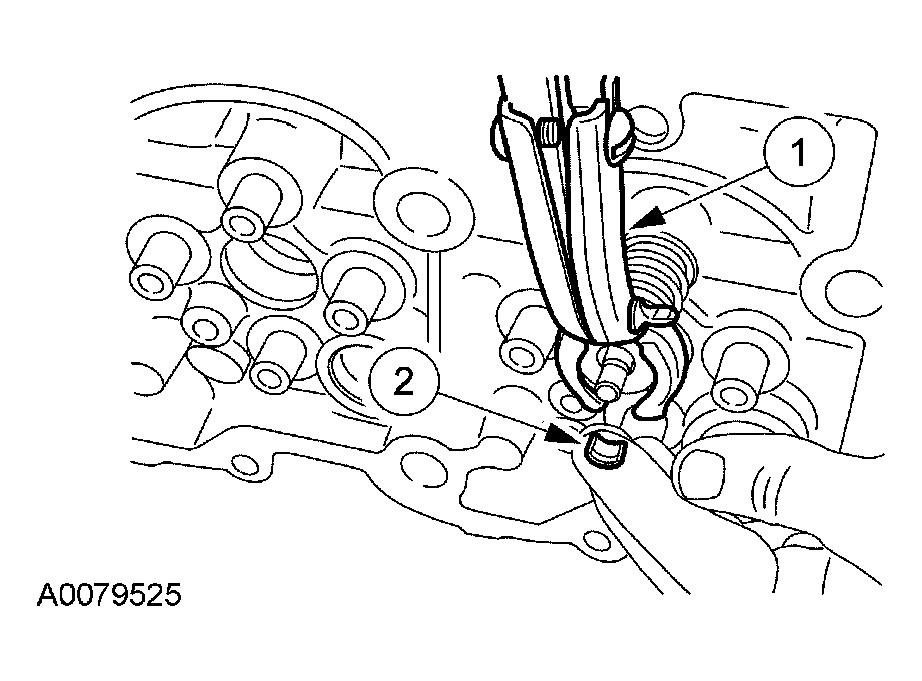

      Fig 5: Installing Valve Spring Retainer Keys
      G03887615Courtesy of FORD MOTOR CO.
  6. Remove the Valve Spring Compressor.
    Fig 6: Removing Valve Spring Compressor
    G03887605Courtesy of FORD MOTOR CO.
  7. Install the lifting bracket on the cylinder head.
