Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine air cleaner and the air cleaner outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  2. Remove the oil level indicator and the nut retaining the oil level indicator tube and bracket assembly.
    Fig 1: Removing Oil Level Indicator Nut
    G03886382Courtesy of FORD MOTOR CO.
  3. Remove the LH exhaust manifold. For additional information, refer to EXHAUST MANIFOLD - LH .
  4. Remove the bolt and the oil level indicator tube.

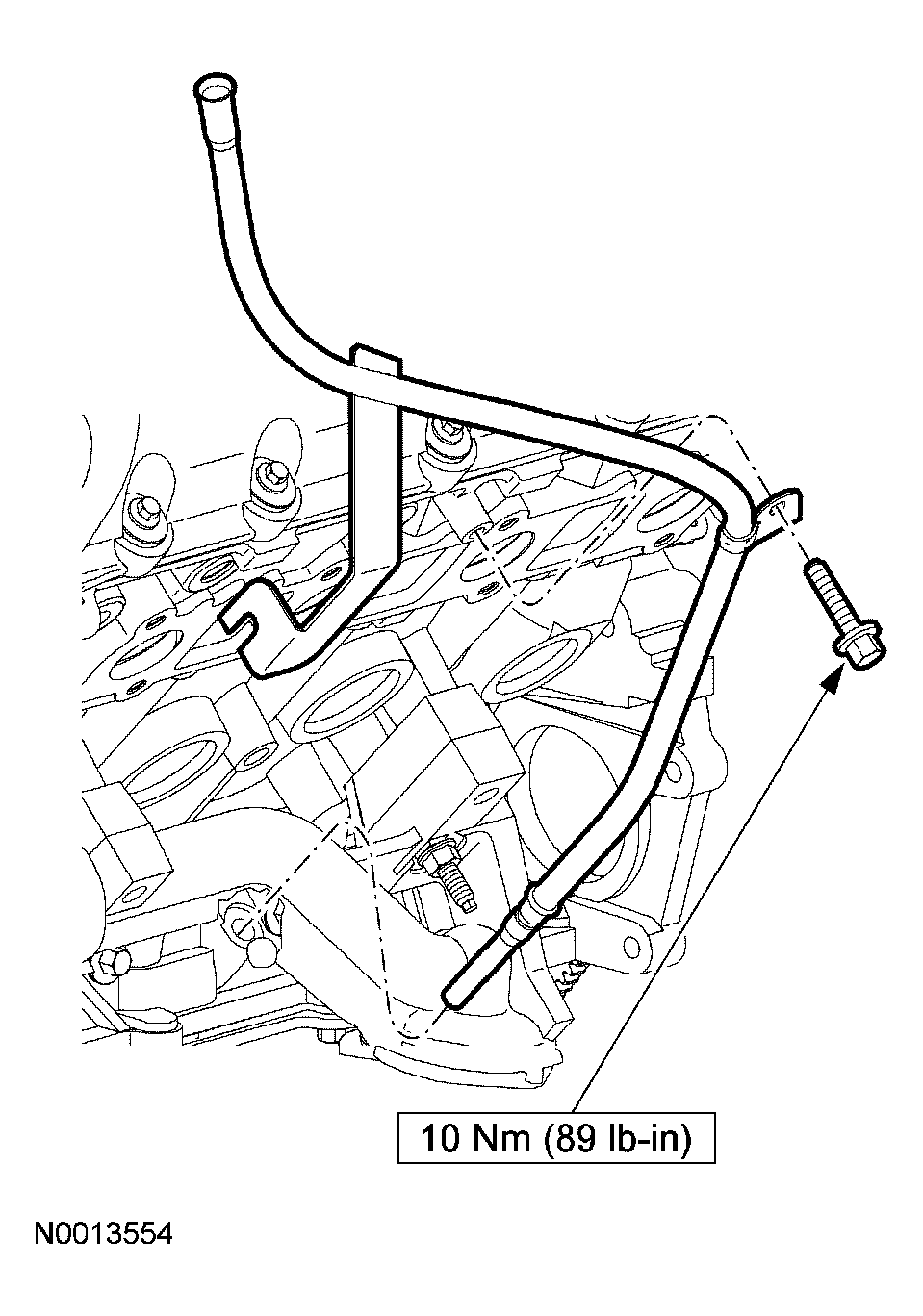

    Fig 2: Removing Bolt Oil Level Indicator Tube
    G03886502Courtesy of FORD MOTOR CO.
  5. Inspect the oil level indicator tube for damage.
  6. To install, reverse the removal procedure.
    • Install new O-ring seals and lubricate them with clean engine oil.
