Removal & Installation
WARNING: This page is about a different car, the 2002 Mercury Cougar and 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

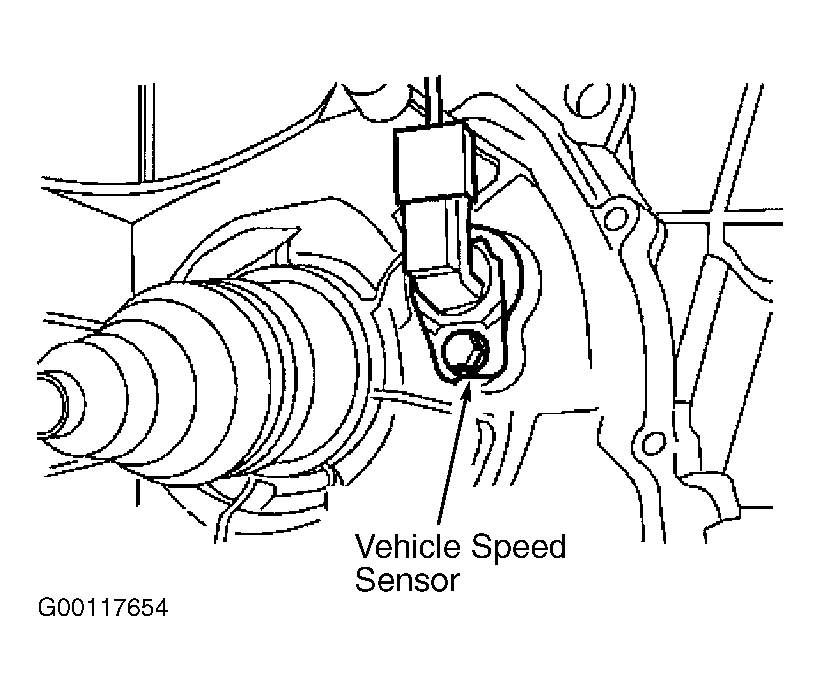

Disconnect negative battery cable. Raise and support vehicle. Disconnect Vehicle Speed Sensor (VSS) harness connector. Disconnect speedometer cable. Unbolt and remove VSS. See Fig 1 . To install, reverse removal procedure. Replace O-ring as needed. Tighten bolt to specification. See TORQUE SPECIFICATIONS .
