Vehicles Not Equipped With A Fluid Pan Or A Torque Converter Drain Plug

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

    DRAINING

  1. With the vehicle in NEUTRAL, position on a hoist.
    2. NOTE: Do not discard the fluid pan gasket unless damaged. This is a reusable gasket.
    Fig 1: Removing Remaining Fluid Pan Bolts And Fluid Pan
    G01538806Courtesy of FORD MOTOR CO.
  2. Remove the transmission fluid pan and gasket.
    1. Loosen, but do not remove the bolts.
    2. Remove the front and side bolts.
    3. Lower the front of the fluid pan and allow the fluid to drain.
    4. Remove the remaining fluid pan bolts and the fluid pan.
  3. Do not remove or install a new fluid filter.
    4. NOTE: If equipped with a radiator in-tank transmission fluid cooler or an auxiliary cooler, the coolers will need to be flushed.
  4. Only flush the cooler tubes, fluid coolers and the bypass valve if carrying out a transmission overhaul. For additional information, refer to TRANSMISSION FLUID COOLER - BACKFLUSHING AND CLEANING .

    5. REFILL

    NOTE: Do not discard the gasket unless damaged. This is a reusable gasket.
    NOTE: Apply a light coat of petroleum jelly to hold the gasket to the fluid pan.

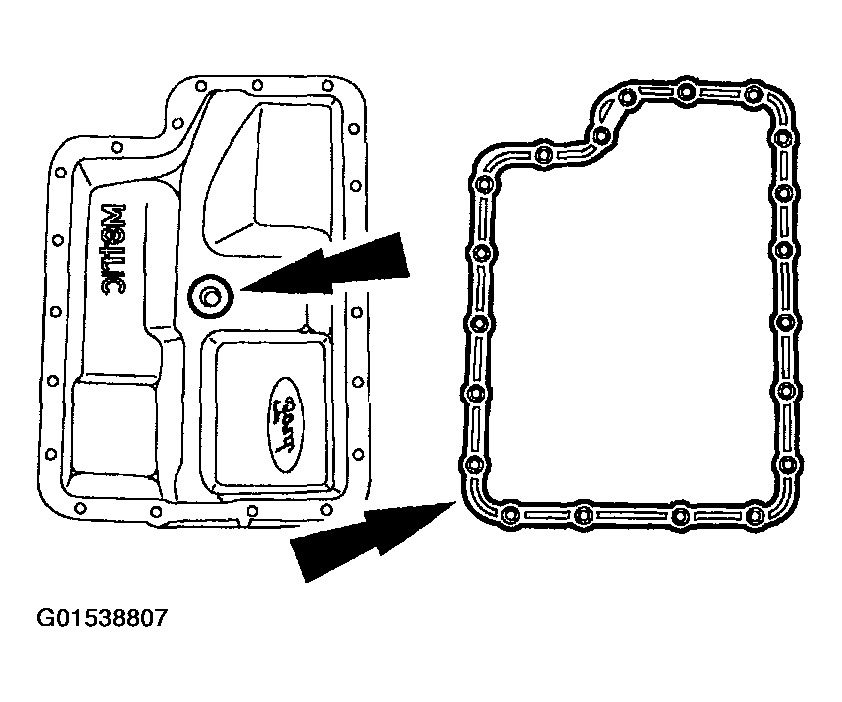

    Fig 2: Positioning Gasket Onto Fluid Pan
    G01538807Courtesy of FORD MOTOR CO.
  5. Position the gasket onto the clean fluid pan. Make sure the magnet is positioned over the dimple in the fluid pan.
  6. Install the pan with the gasket. Alternately tighten the bolts.
    Fig 3: Installing Pan With Gasket
    G01538808Courtesy of FORD MOTOR CO.
    7. CAUTION: The use of any other fluids than specified can result in the transmission failing to operate in a normal manner or transmission failure.
  7. Fill the transmission.
    • Add 6.2 liters (6.5 qts) of clean automatic transmission fluid to the transmission through the fluid filler tube.
  8. Start the engine. Move the transmission range selector lever through all the gear ranges, checking for engagements.
  9. With the engine running and the transmission at normal operating temperature 66-77°C (150-170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed, add fluid in increments of 0.24-liter (0.5-pint) until the correct level is achieved (fluid should be in the cross-hatched area of the fluid level indicator).
