Item 7: Upper Output Shaft and Ring Gear Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper output shaft and the ring gear.
    • Expand the snap ring.

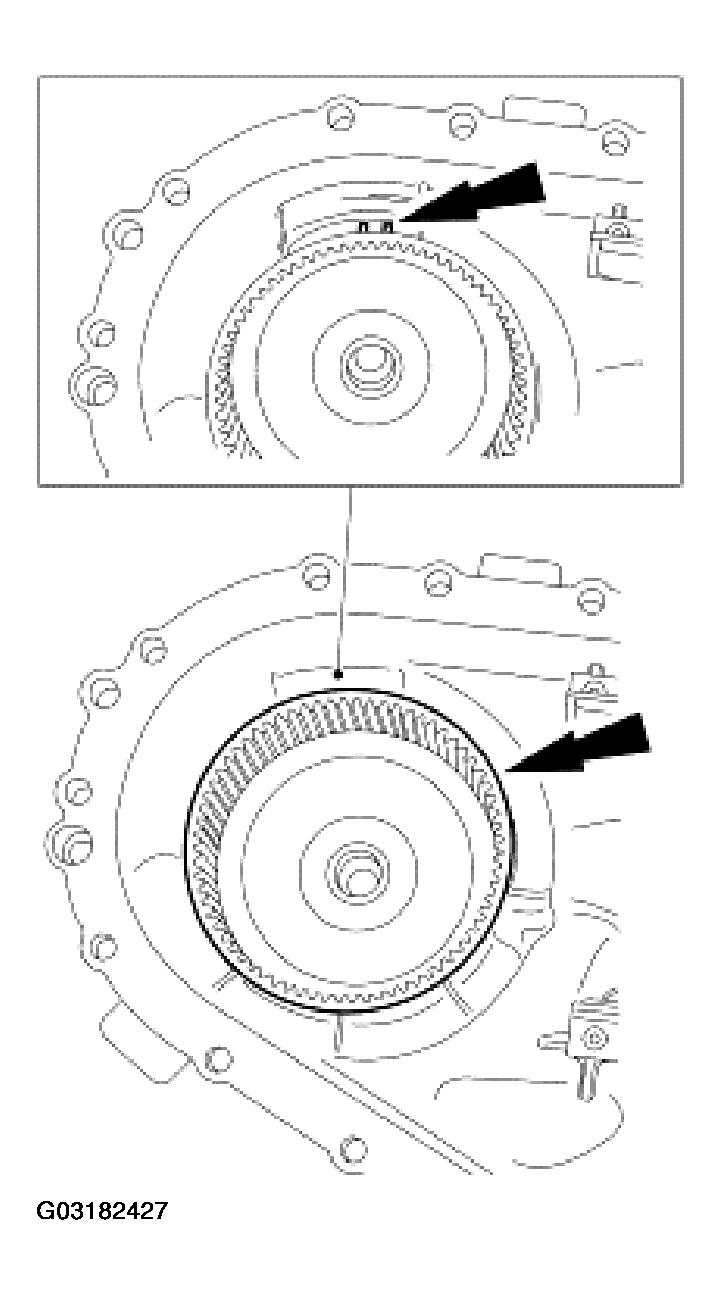

    Fig 1: Removing Upper Output Shaft And Ring Gear
    G03182427Courtesy of FORD MOTOR CO.
