Section 73 (Automatic Transmission - Diagnosis - 4R100): Identification: Transmission
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 Lincoln Navigator, 2002 Ford Expedition, 2001 Lincoln Navigator, 2001 Ford RV Cutaway, and 2001 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

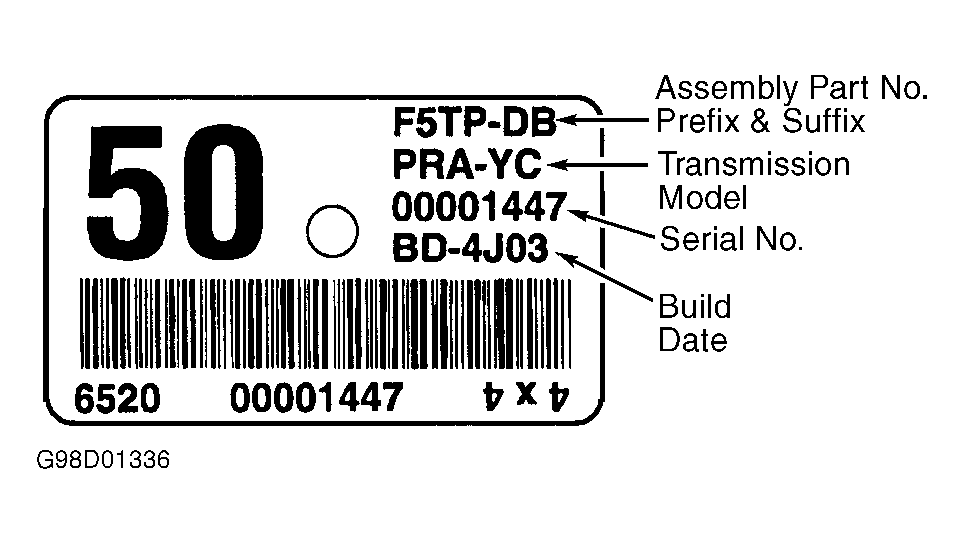

The 4R100 automatic transmission is identified by a tag located on left side of case, to rear of Transmission Range (TR) sensor. Top line of tag shows assembly part number. Second line on tag shows model number. Third line of tag shows serial number. Last line of tag shows build date. See Fig 1.
