Oil Pan - Upper, Early Build: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Install a new press-in-place gasket.

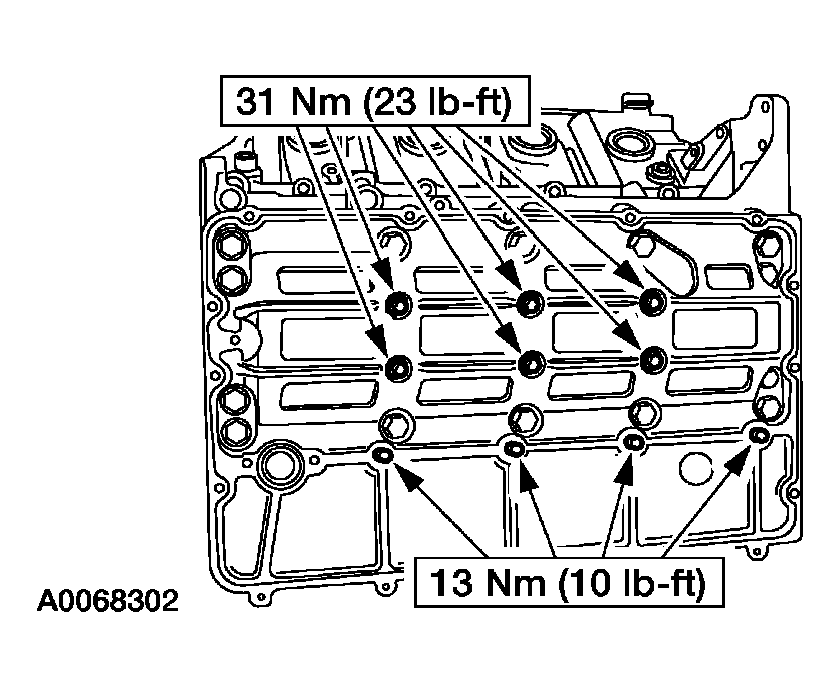

    Fig 1: Installing Upper Oil Pan And Bolts
    G03899513Courtesy of FORD MOTOR CO.
  1. Install the upper oil pan and bolts.
  2. Install the lower oil pan. For additional
