Transmission Filler Tube: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fluid level indicator.
    Fig 1: Removing Fluid Level Indicator
    G03380946Courtesy of FORD MOTOR CO.
  2. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  3. Remove the transmission fluid fill tube nut.

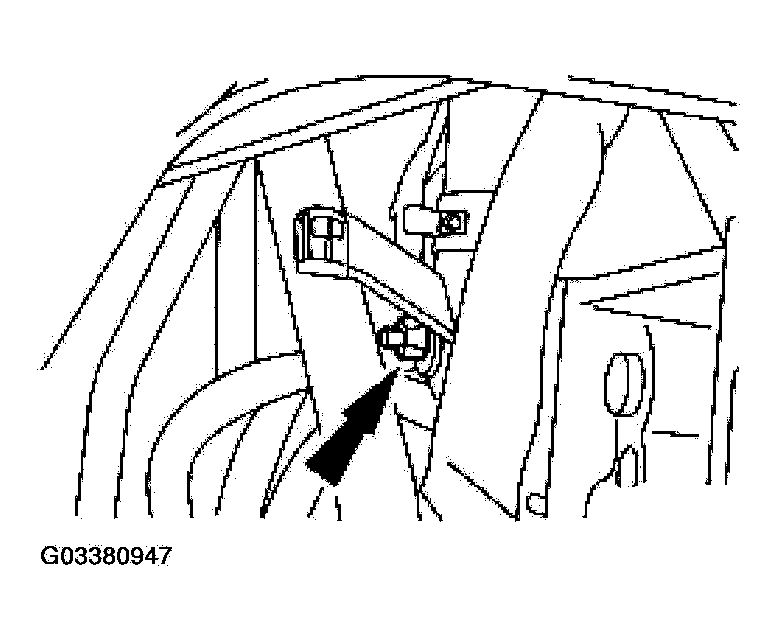

    Fig 2: Removing Transmission Fluid Fill Tube Nut
    G03380947Courtesy of FORD MOTOR CO.
  4. Remove the transmission fluid filler tube.

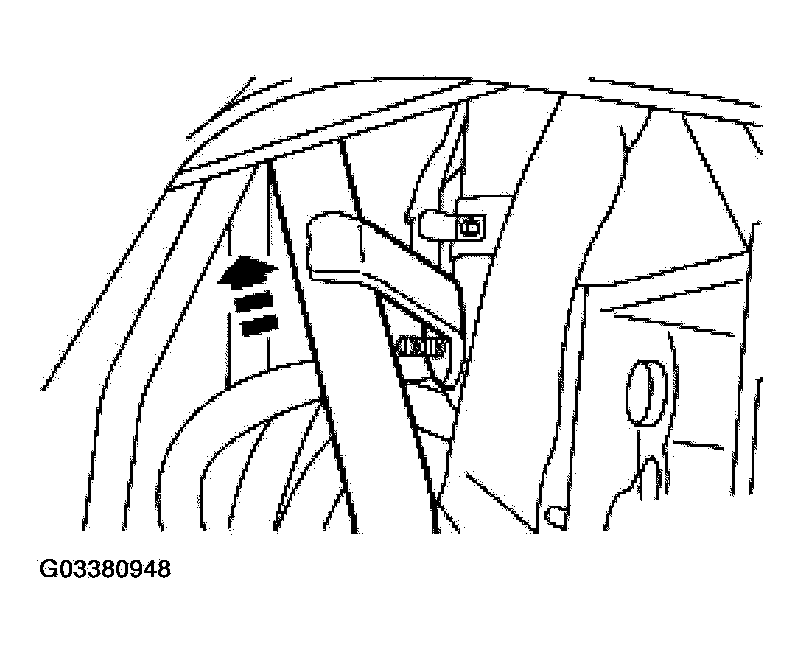

    Fig 3: Removing Transmission Fluid Filler Tube
    G03380948Courtesy of FORD MOTOR CO.
  5. Inspect the O-ring seal for damage.
    Fig 4: Inspecting O-Ring Seal For Damage
    G03380949Courtesy of FORD MOTOR CO.
