Internal Transmission Harness Connector/Component Locator

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

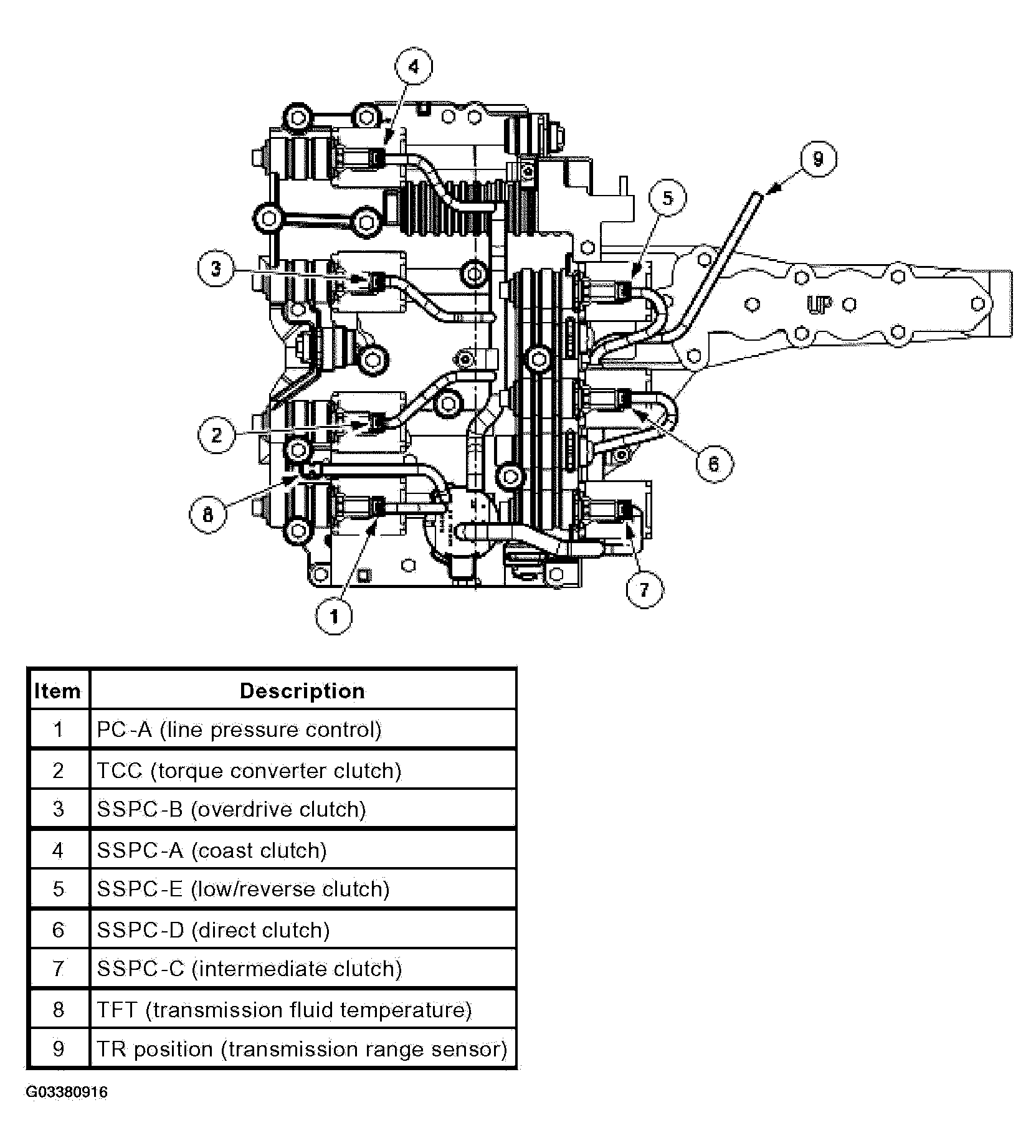

Fig 1: Identifying Internal Transmission Harness Connector/Component Locator
G03380916Courtesy of FORD MOTOR CO.
