Engine Mount: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Remove the cooling fan stator. For additional information, refer to ENGINE COOLING .
  4. Remove the A/C compressor. For additional information, refer to HEATING & VENTILATION .
  5. Remove the power steering pump upper mounting bolt.
    Fig 1: Removing Power Steering Pump Upper Mounting Bolt
    G02764584Courtesy of FORD MOTOR CO.
  6. Remove the LH fan stator stand-off.

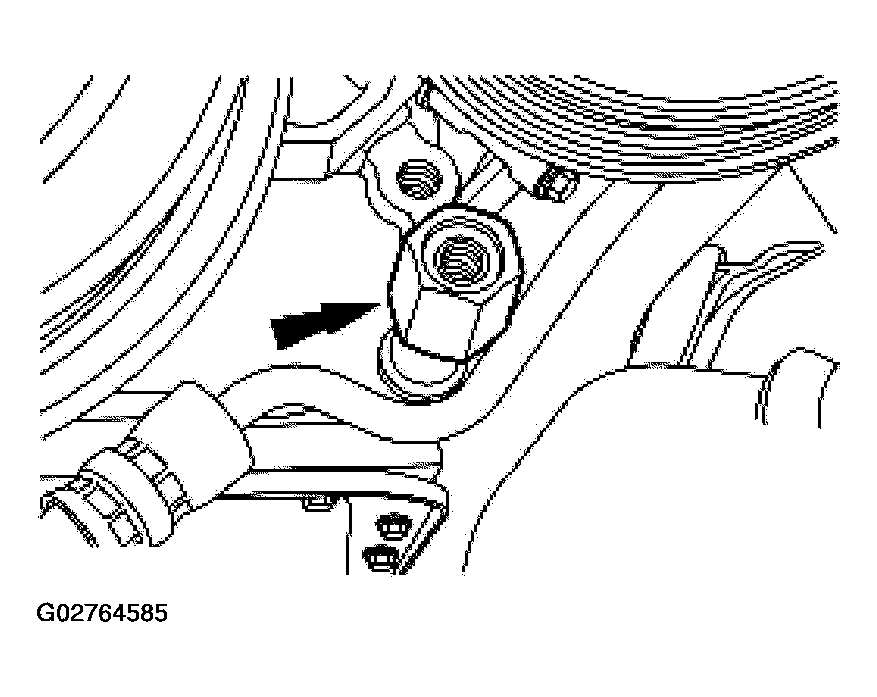

    Fig 2: Removing LH Fan Stator Stand-Off
    G02764585Courtesy of FORD MOTOR CO.
    7. NOTE: The front bolt will remain in the power steering pump.

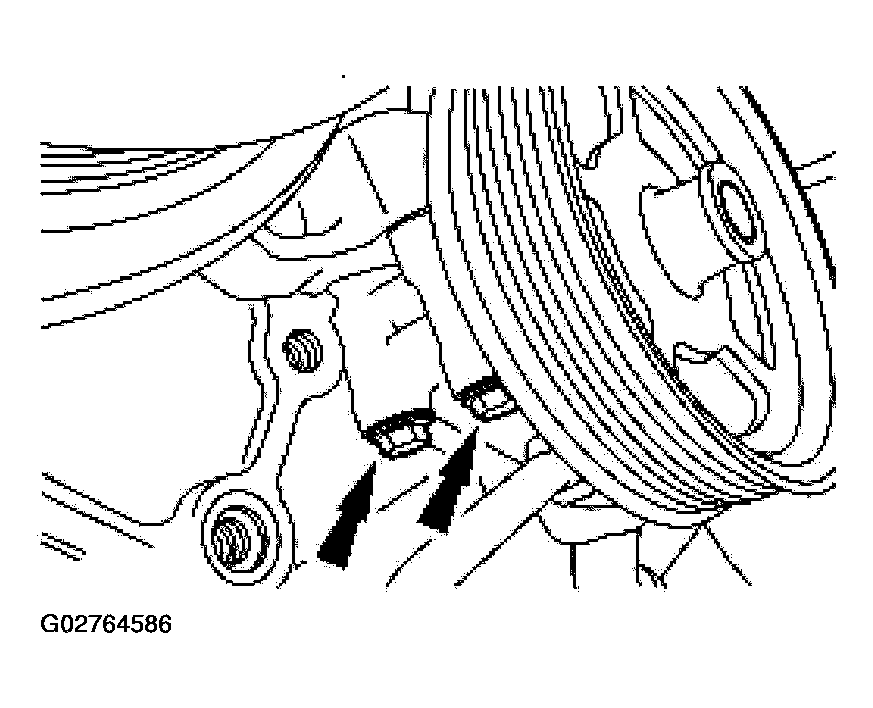

    Fig 3: Removing Bolts And Position Power Steering Pump Aside
    G02764586Courtesy of FORD MOTOR CO.
  7. Remove the bolts and position the power steering pump aside.
  8. Remove the RH fan stator stand off. Remove the bolt and position the cable aside.

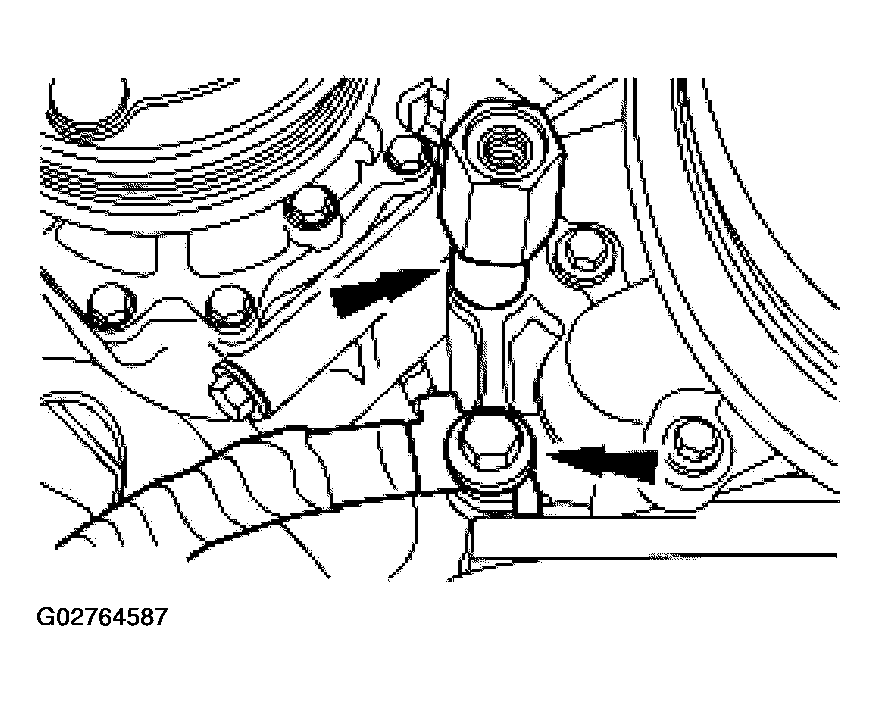

    Fig 4: Removing RH Fan Stator Stand Off
    G02764587Courtesy of FORD MOTOR CO.
  9. Loosen the exhaust pipe retaining nuts.

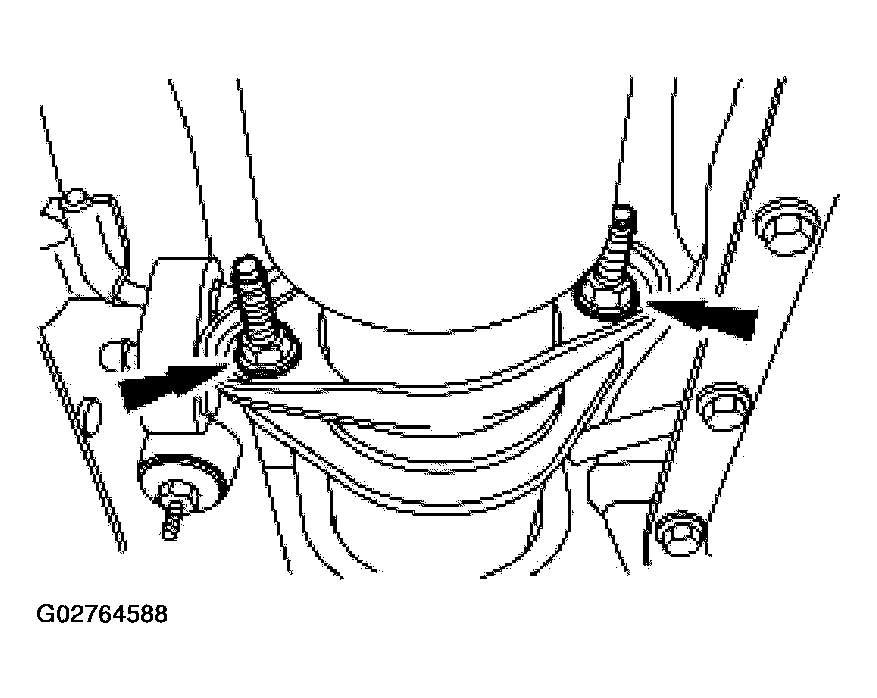

    Fig 5: Loosening Exhaust Pipe Retaining Nuts
    G02764588Courtesy of FORD MOTOR CO.
    10. NOTE: Left side shown, right side similar.

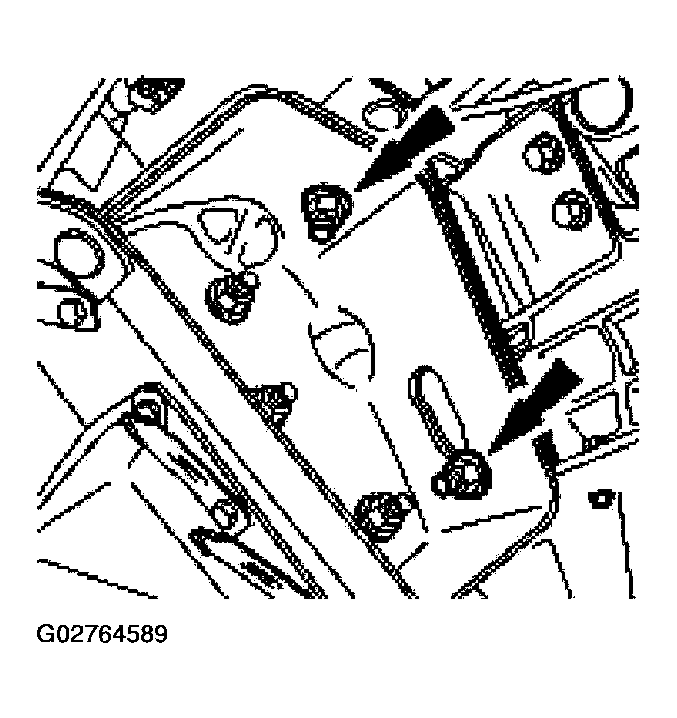

    Fig 6: Removing Motor Mount Retaining Nuts
    G02764589Courtesy of FORD MOTOR CO.
  10. Remove the motor mount retaining nuts.
  11. Remove the upper motor mount studs.

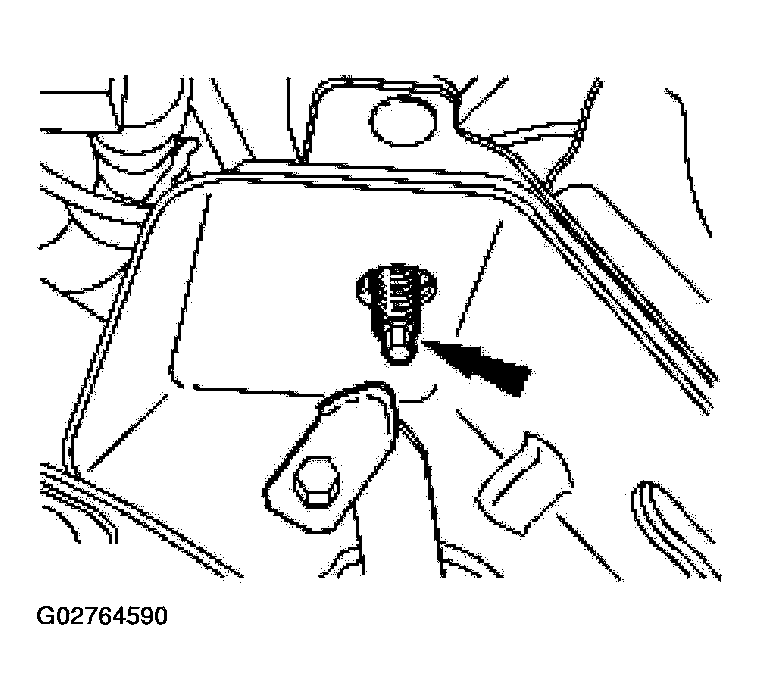

    Fig 7: Removing Upper Motor Mount Studs
    G02764590Courtesy of FORD MOTOR CO.
    12. NOTE: Rear bolts shown, front bolts similar.

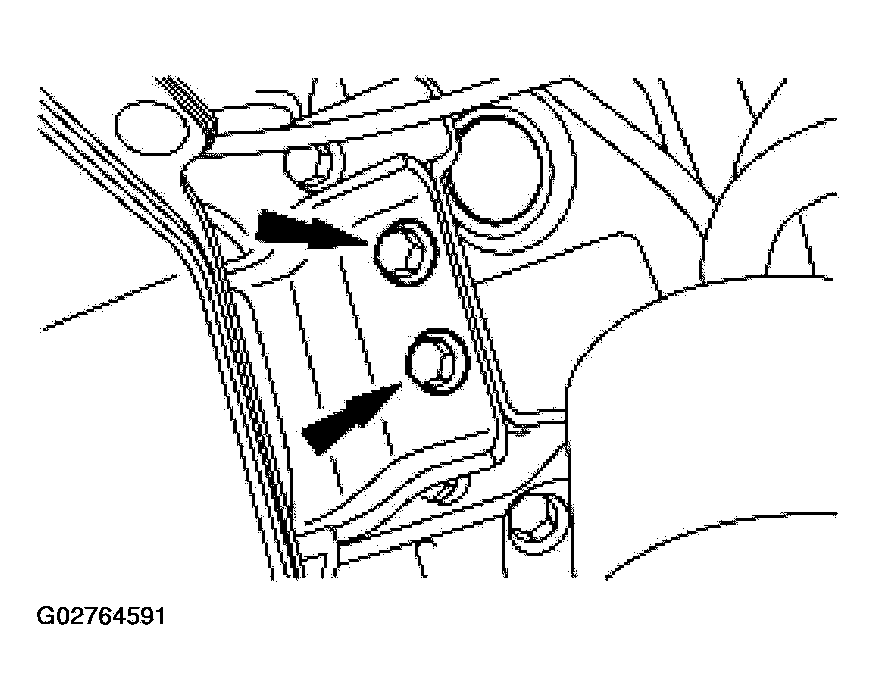

    Fig 8: Loosening Four Motor Mount Bolts
    G02764591Courtesy of FORD MOTOR CO.
  12. Loosen the four motor mount bolts for each motor mount.
  13. Install the special tools.

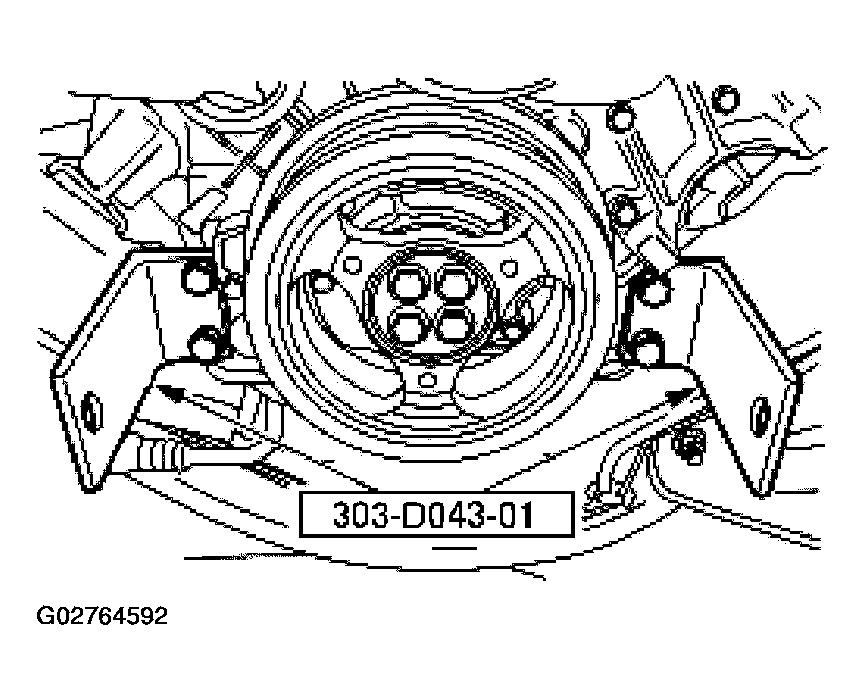

    Fig 9: Installing Special Tools
    G02764592Courtesy of FORD MOTOR CO.
  14. Install the lifting attachment and lifting crane.

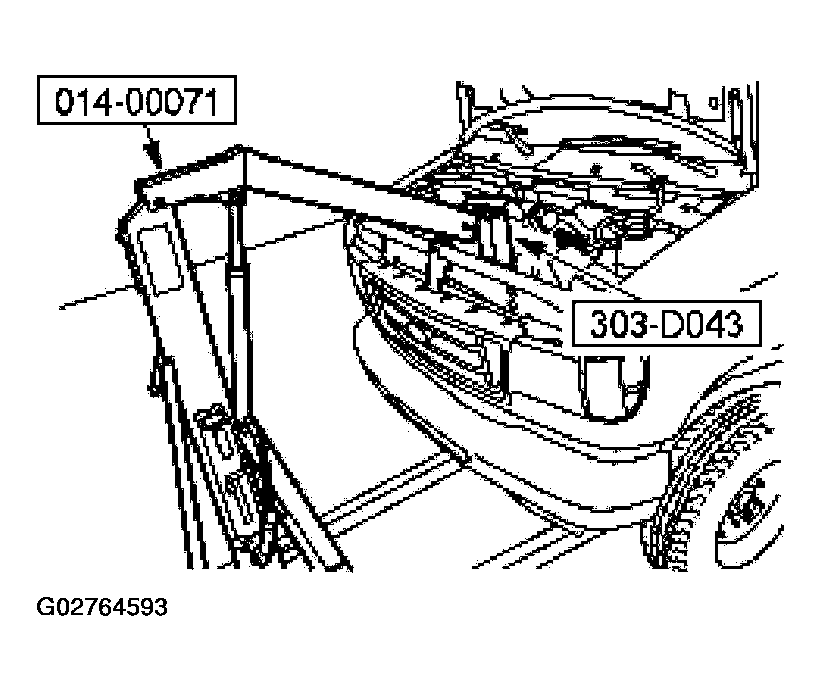

    Fig 10: Installing Lifting Attachment And Lifting Crane
    G02764593Courtesy of FORD MOTOR CO.
    15. CAUTION: Use care when raising the engine to avoid engine or body damage.
  15. Raise the engine.
  16. Remove the bolts and the motor mounts.
    Fig 11: Removing Bolts And Motor Mounts
    G02764594Courtesy of FORD MOTOR CO.
