Lamp Assembly - Rear Hi-Mount, Without Cargo Lamp Attached: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear hi-mount lamp screws.
    Fig 1: Removing Rear Hi-Mount Lamp Screws
    G03462393Courtesy of FORD MOTOR CO.
  2. Remove the rear hi-mount lamp (13A613).

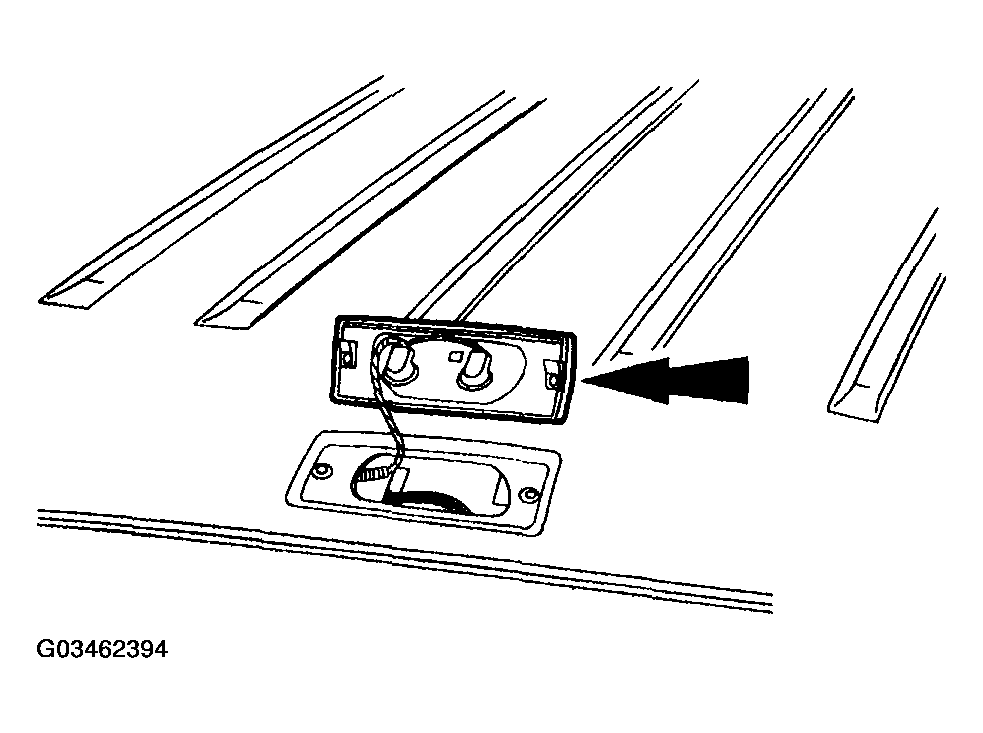

    Fig 2: Removing Rear Hi-Mount Lamp
    G03462394Courtesy of FORD MOTOR CO.
  3. Disconnect the electrical connectors.
