Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Open the tailgate.

Fig 1: Opening Tailgate
Courtesy of FORD MOTOR CO.

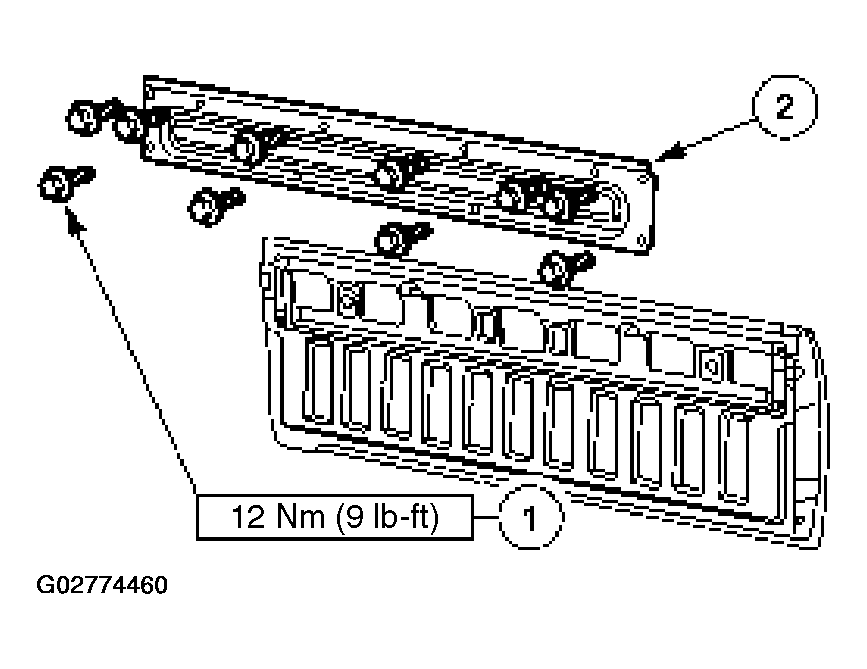

Remove the tailgate access panel.
1. Remove the screws.
2. Remove the tailgate access panel.

  Fig 2: Removing Tailgate Access Panel
  Courtesy of FORD MOTOR CO.

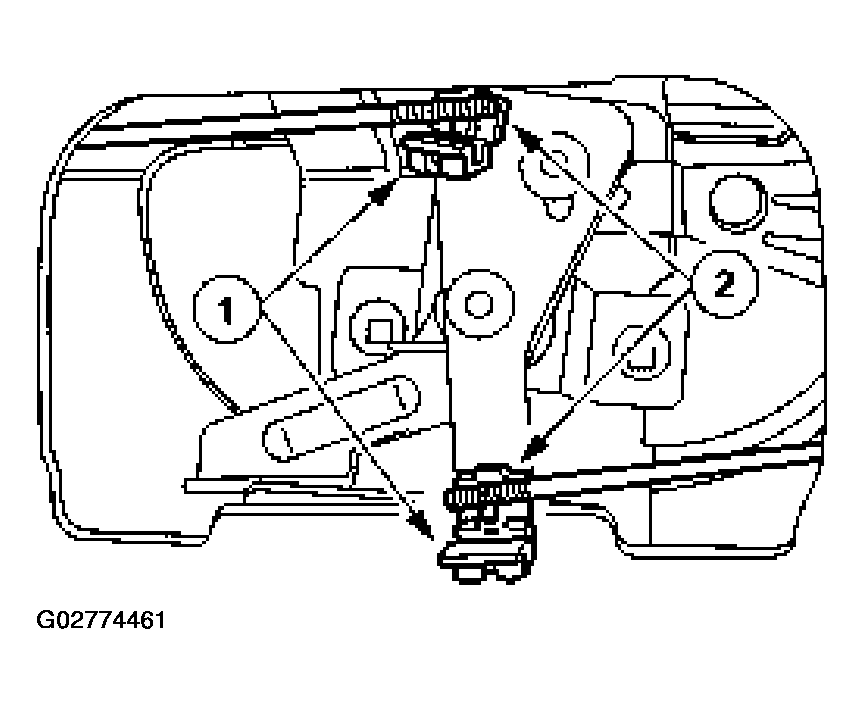

Disconnect the tailgate actuating rods from the remote control.
1. Open the clips.
2. Disconnect the rods.

  Fig 3: Disconnecting Tailgate Actuating Rods From Remote Control
  Courtesy of FORD MOTOR CO.

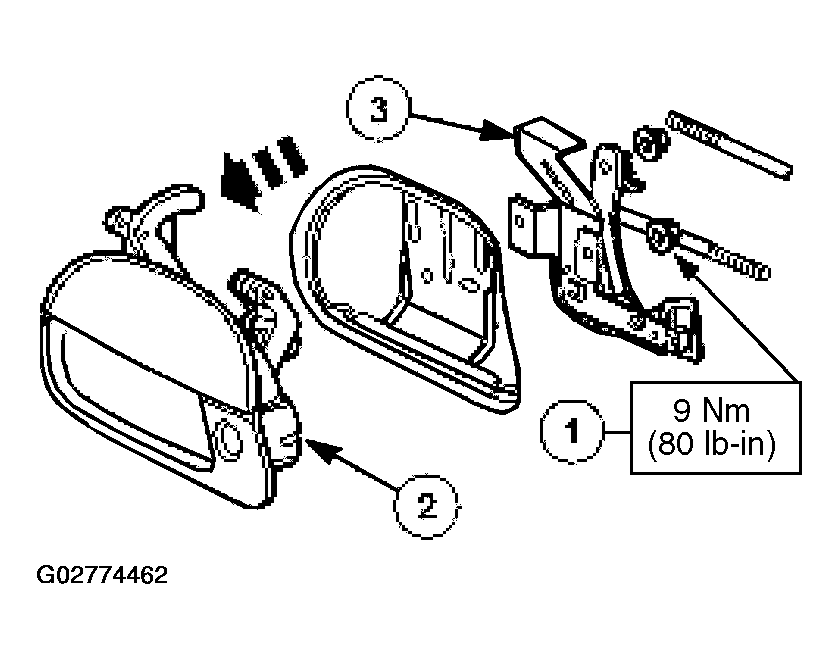

Remove the tailgate release handle.
1. Remove the nuts.
2. Remove the tailgate release handle.
3. Remove the tailgate latch remote control.

  Fig 4: Removing Tailgate Release Handle
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
