Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Open the tailgate.

Fig 1: Opening Tailgate
Courtesy of FORD MOTOR CO.
Remove the tailgate access panel.
1. Remove the screws.
2. Remove the tailgate access panel.

  Fig 2: Removing Tailgate Access Panel Screws
  Courtesy of FORD MOTOR CO.

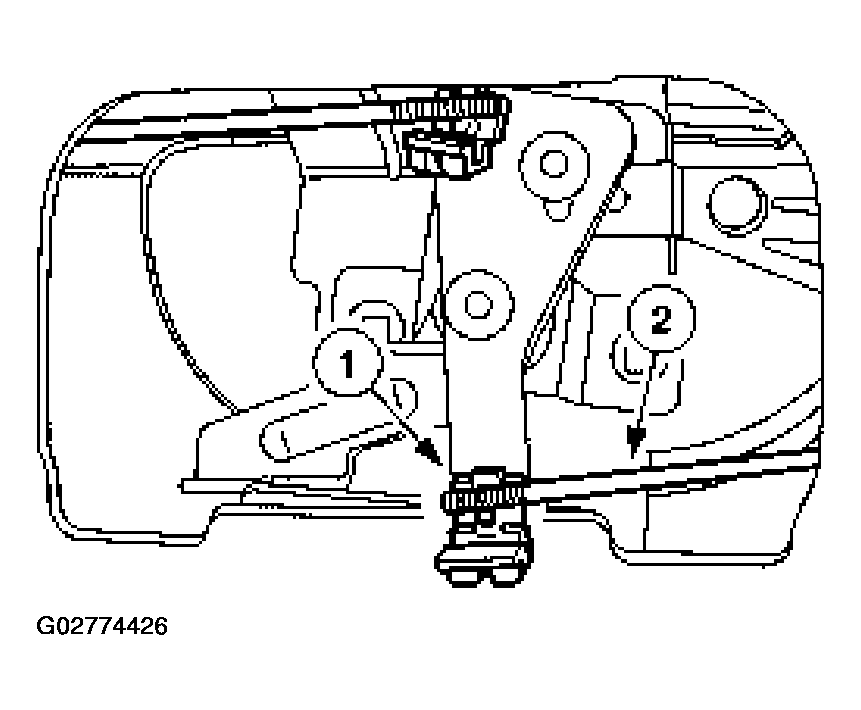

Disconnect the tailgate latch remote control actuating rods.
1. Open the locking clips.
2. Disconnect the rods.

  Fig 3: Disconnecting Tailgate Latch Remote Control Actuating Rods
  Courtesy of FORD MOTOR CO.

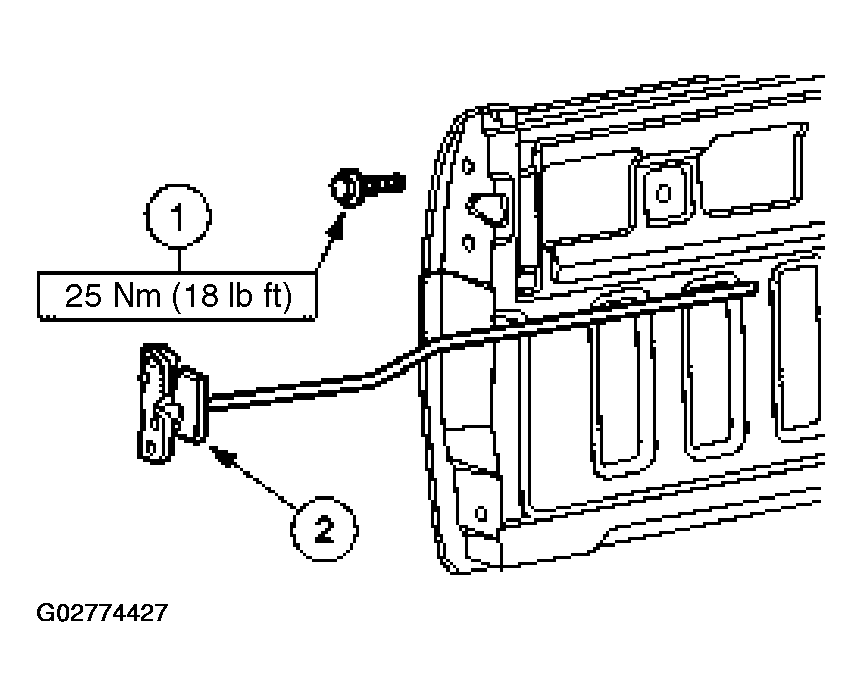

Remove the tailgate latch (RH shown, LH similar).
1. Remove the two screws.
2. Remove the tailgate latch.

  Fig 4: Removing Tailgate Latch (RH Shown, LH Similar)
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- If necessary, use Multi-Purpose Grease Spray XL-5 or equivalent meeting Ford specification ESB-M1C193-B to lubricate the latches.
