Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The window must be in the raised position.

Remove the front door trim panel. Refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the exterior front door handle. Refer to EXTERIOR FRONT DOOR HANDLE .
Disconnect the push button rod from the front door latch. Refer to PUSH BUTTON ROD - FRONT DOOR .
Remove the clips.

Fig 1: Removing Clips
Courtesy of FORD MOTOR CO.
Remove the screws and position the front door latch aside.

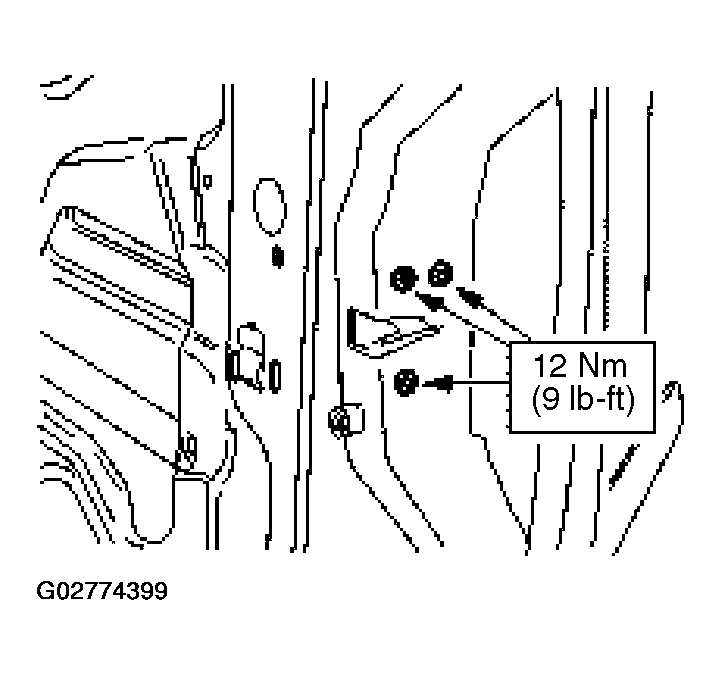

Fig 2: Removing Front Door Latch Screws
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector(s).

Fig 3: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the front door latch cable cover.

Fig 4: Removing Front Door Latch Cable Cover
Courtesy of FORD MOTOR CO.
Remove the front door latch.
1. Release the cable conduit.
2. Release the cable.
3. Remove the front door latch.

  Fig 5: Removing Front Door Latch
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
