Pinpoint Test B: All Door Locks Are Inoperative

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

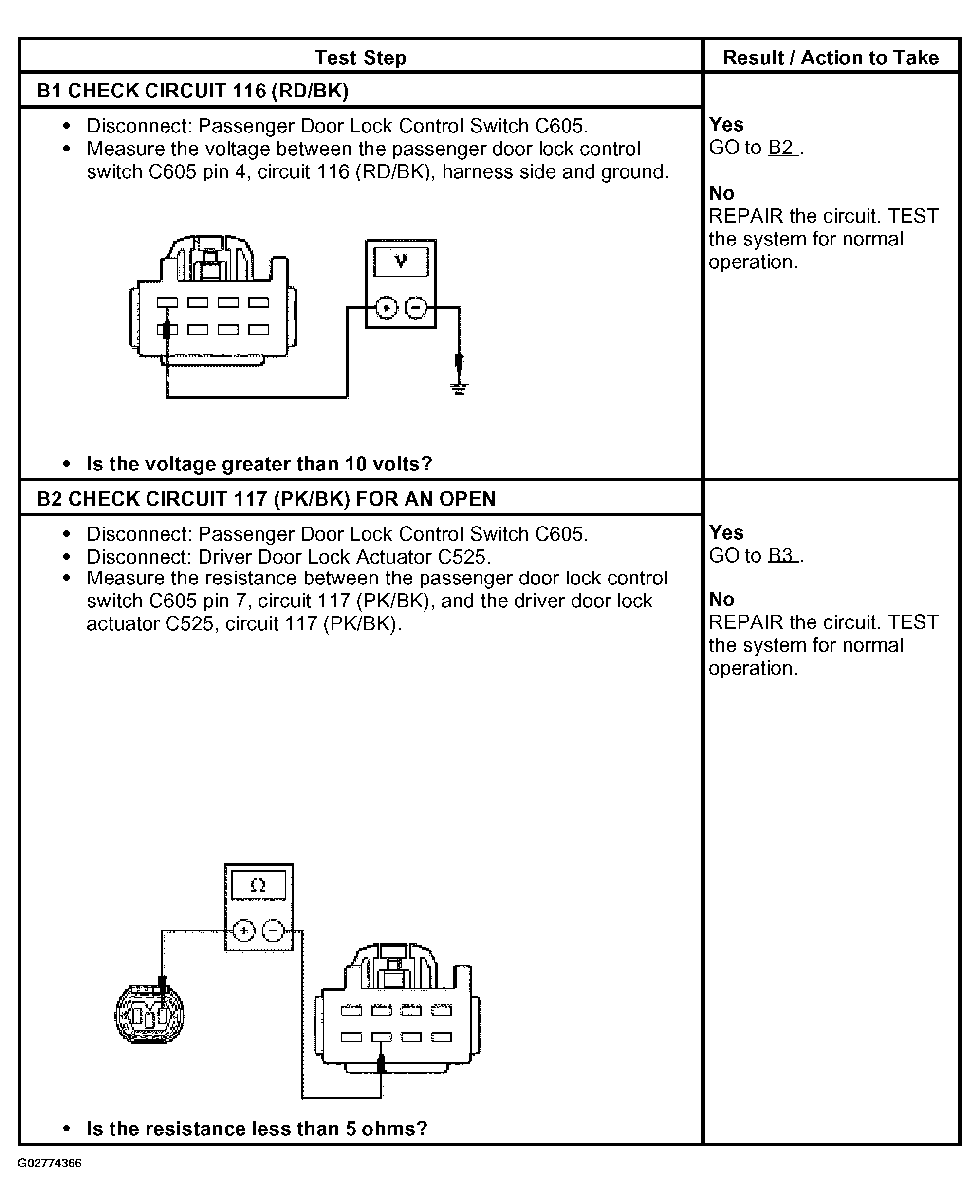

Fig 1: Pinpoint Test B: All Door Locks Are Inoperative (B1 & B2)
G02774366Courtesy of FORD MOTOR CO.

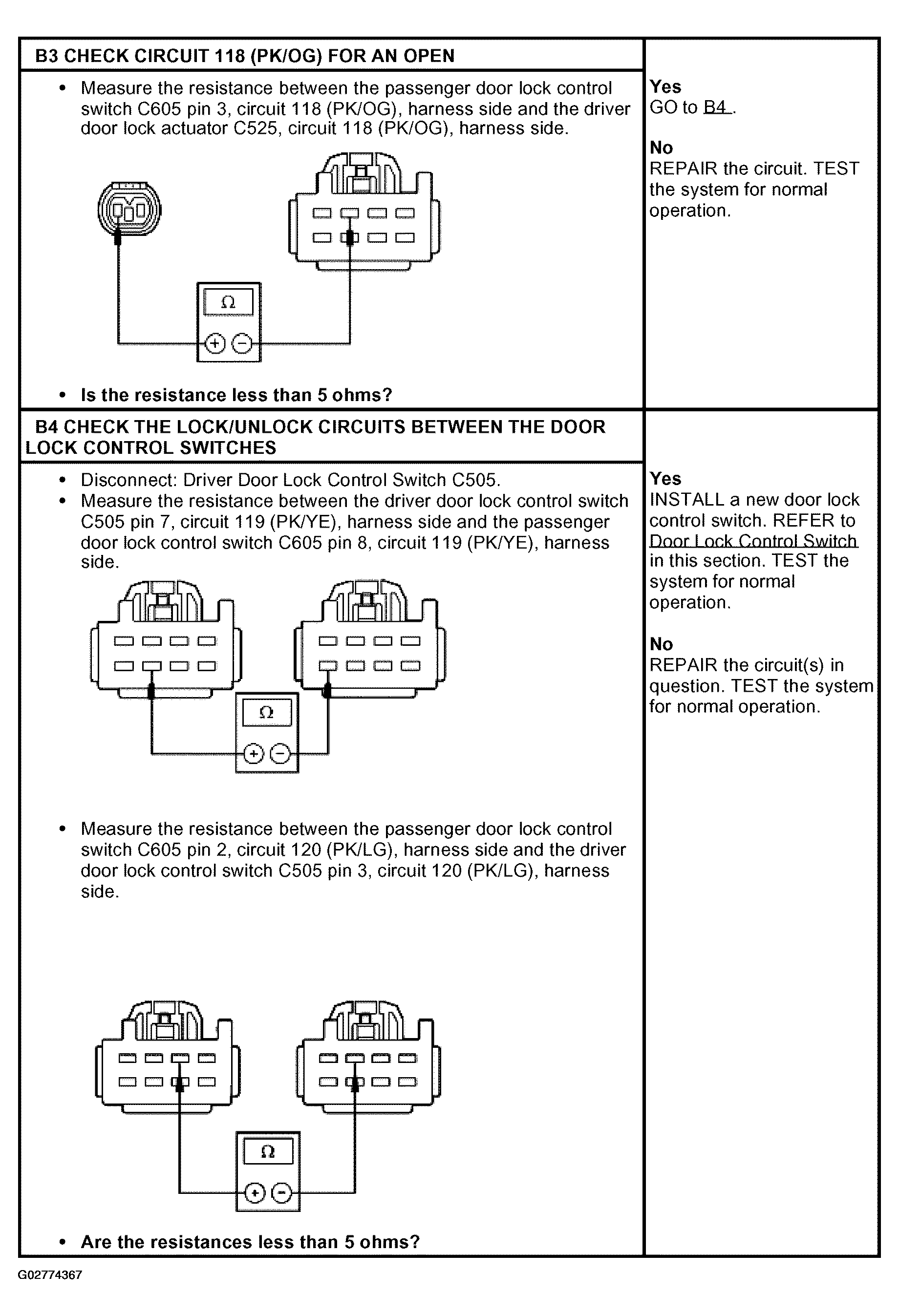

Fig 2: Pinpoint Test B: All Door Locks Are Inoperative (B3 & B4)
G02774367Courtesy of FORD MOTOR CO.
