Inspection and Verification

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify the customer concern by operating the system.
  2. Visually inspect for obvious signs of mechanical and electrical damage.

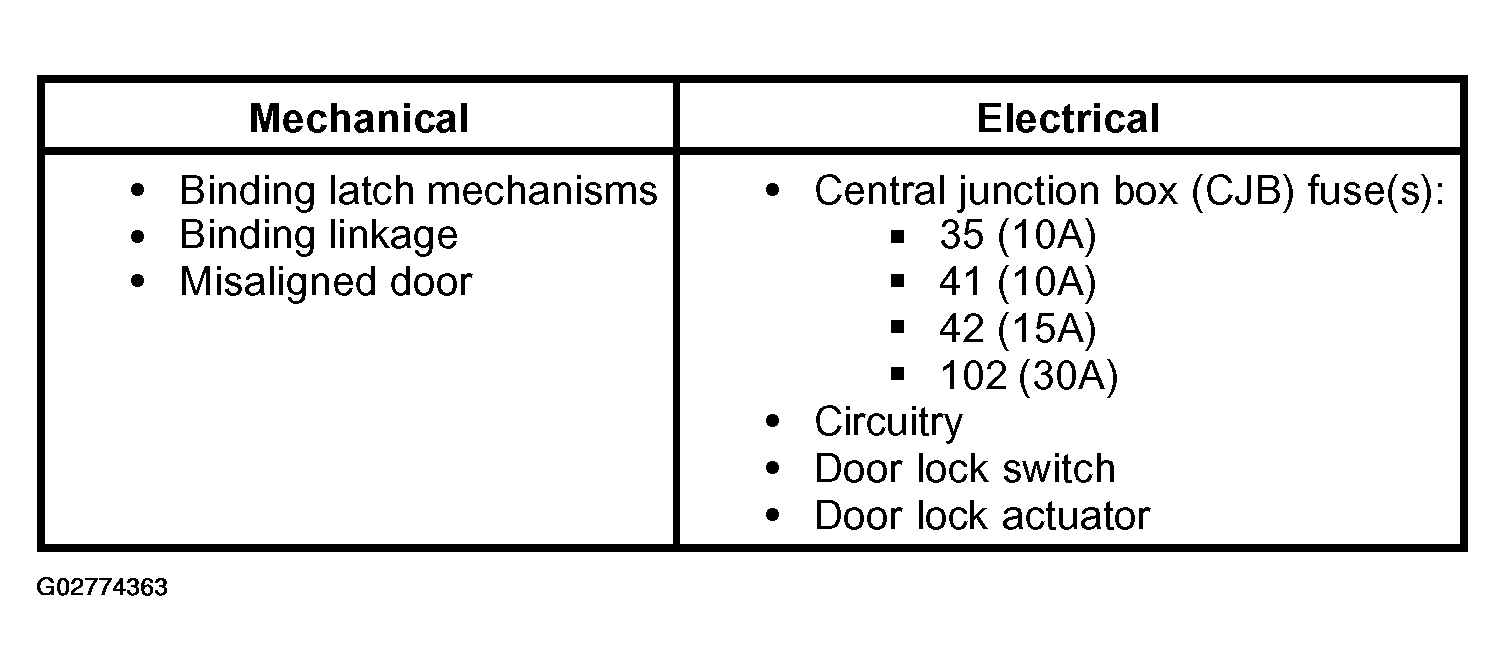

    Fig 1: Visual Inspection Chart
    G02774363Courtesy of FORD MOTOR CO.
  3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
  4. If the concern is not visually evident, determine the symptom and proceed to the Symptom Chart.
