Pinpoint Test M: The Remote Transmitter Has Poor Range Performance

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: All remote transmitters must be present to begin diagnosis of the remote keyless entry (RKE) system.
NOTE: Aftermarket or dealer-installed systems may adversely affect the RKE system operation. These systems should be disconnected before diagnosing any RKE concerns.

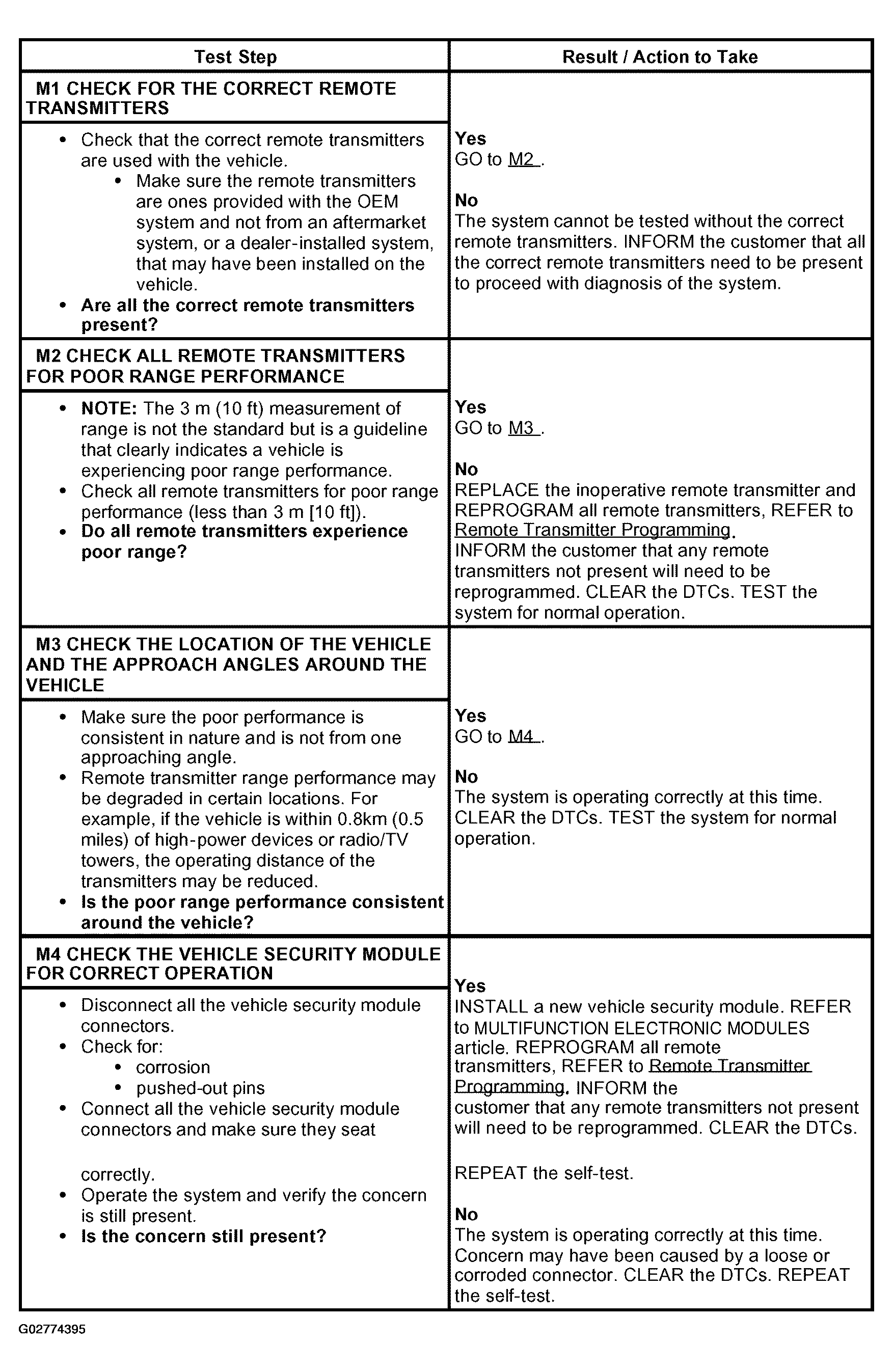

Fig 1: Pinpoint Test M: Remote Transmitter Has Poor Range Performance
G02774395Courtesy of FORD MOTOR CO.
