Pinpoint Test G: The Defrost System Is Inoperative

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Pinpoint Test G: Defrost System Is Inoperative (G1-G5)
G02774147Courtesy of FORD MOTOR CO.

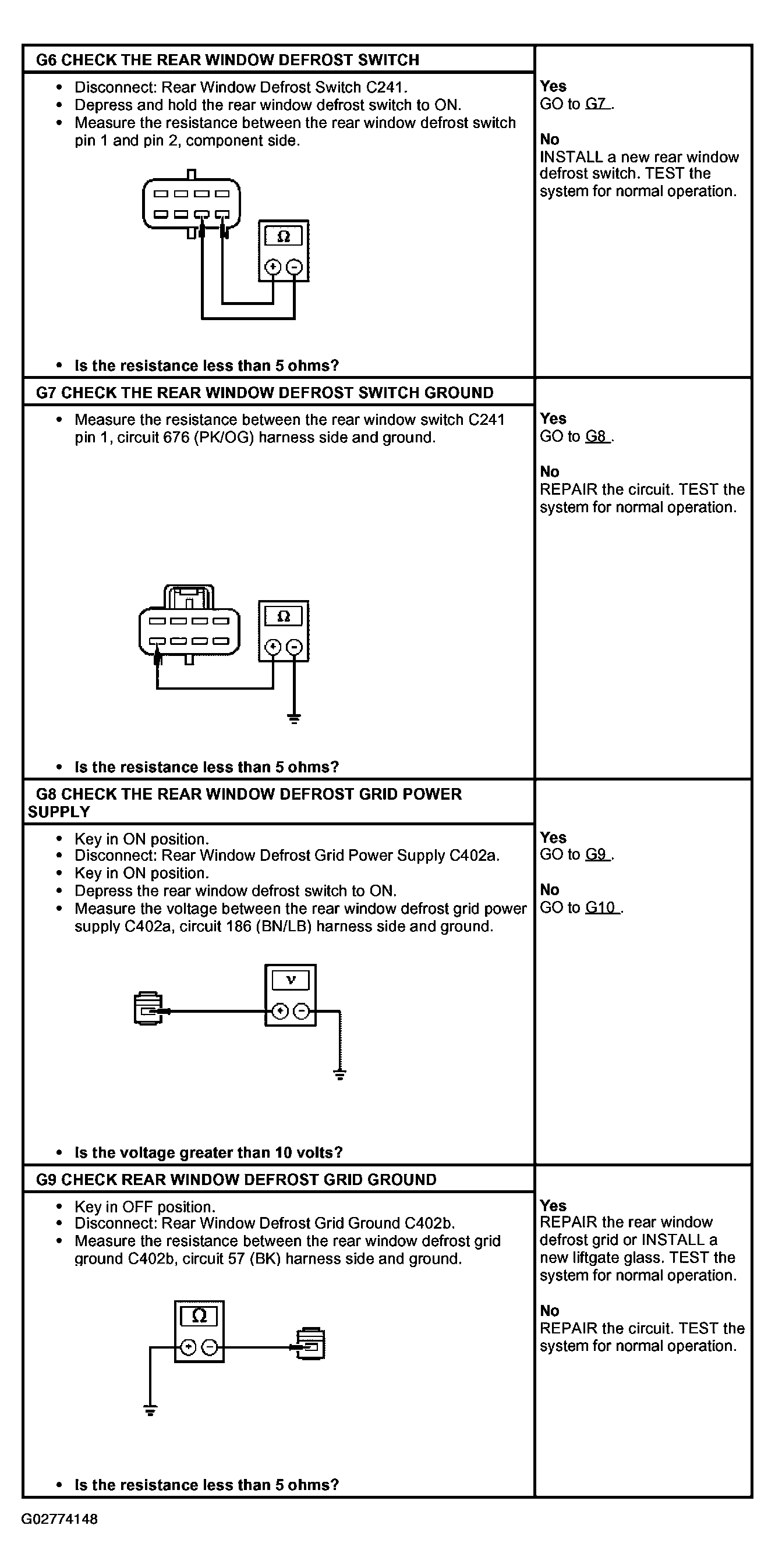

Fig 2: Pinpoint Test G: Defrost System Is Inoperative (G6-G9)
G02774148Courtesy of FORD MOTOR CO.

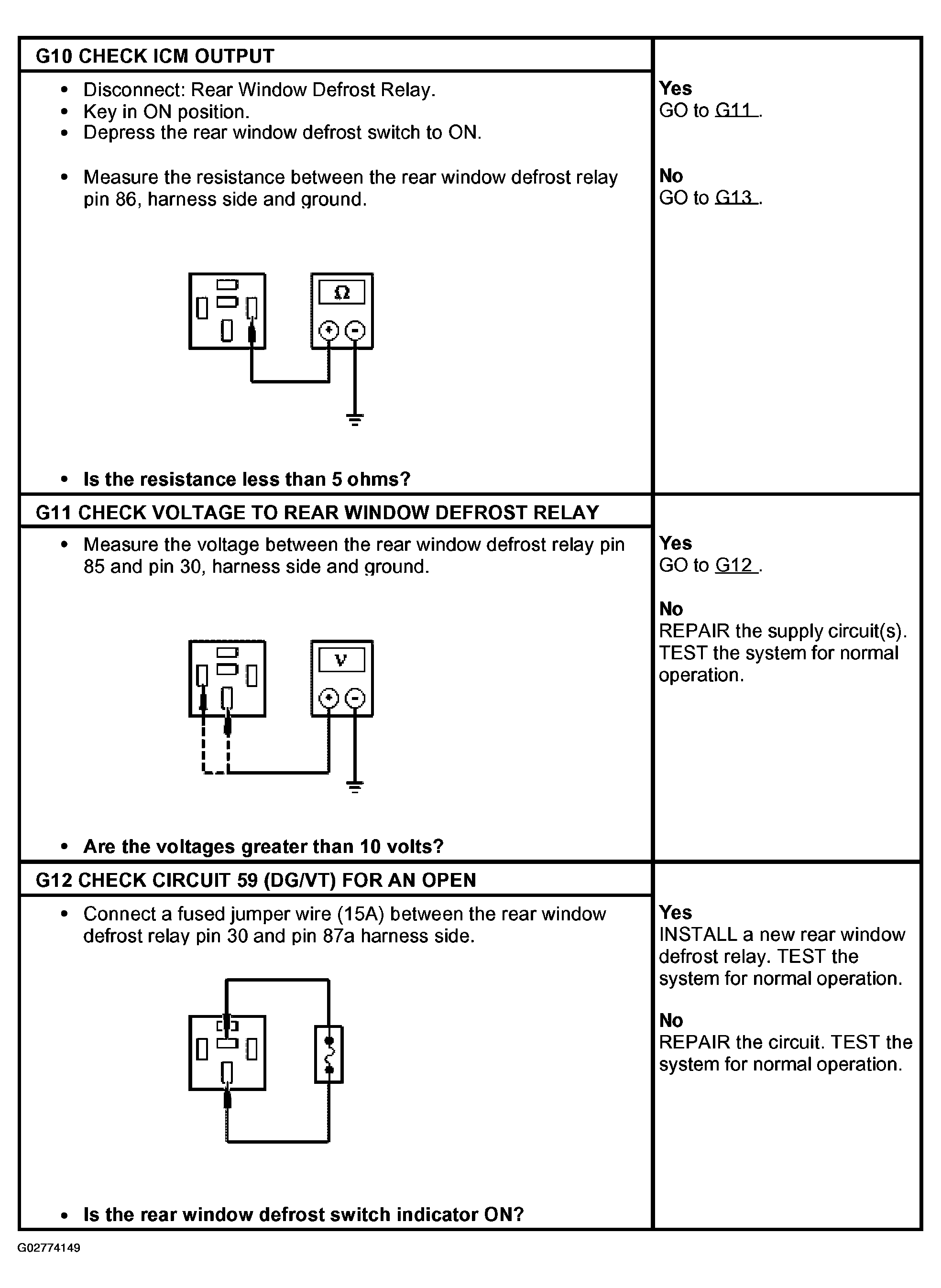

Fig 3: Pinpoint Test G: Defrost System Is Inoperative (G10-G12)
G02774149Courtesy of FORD MOTOR CO.

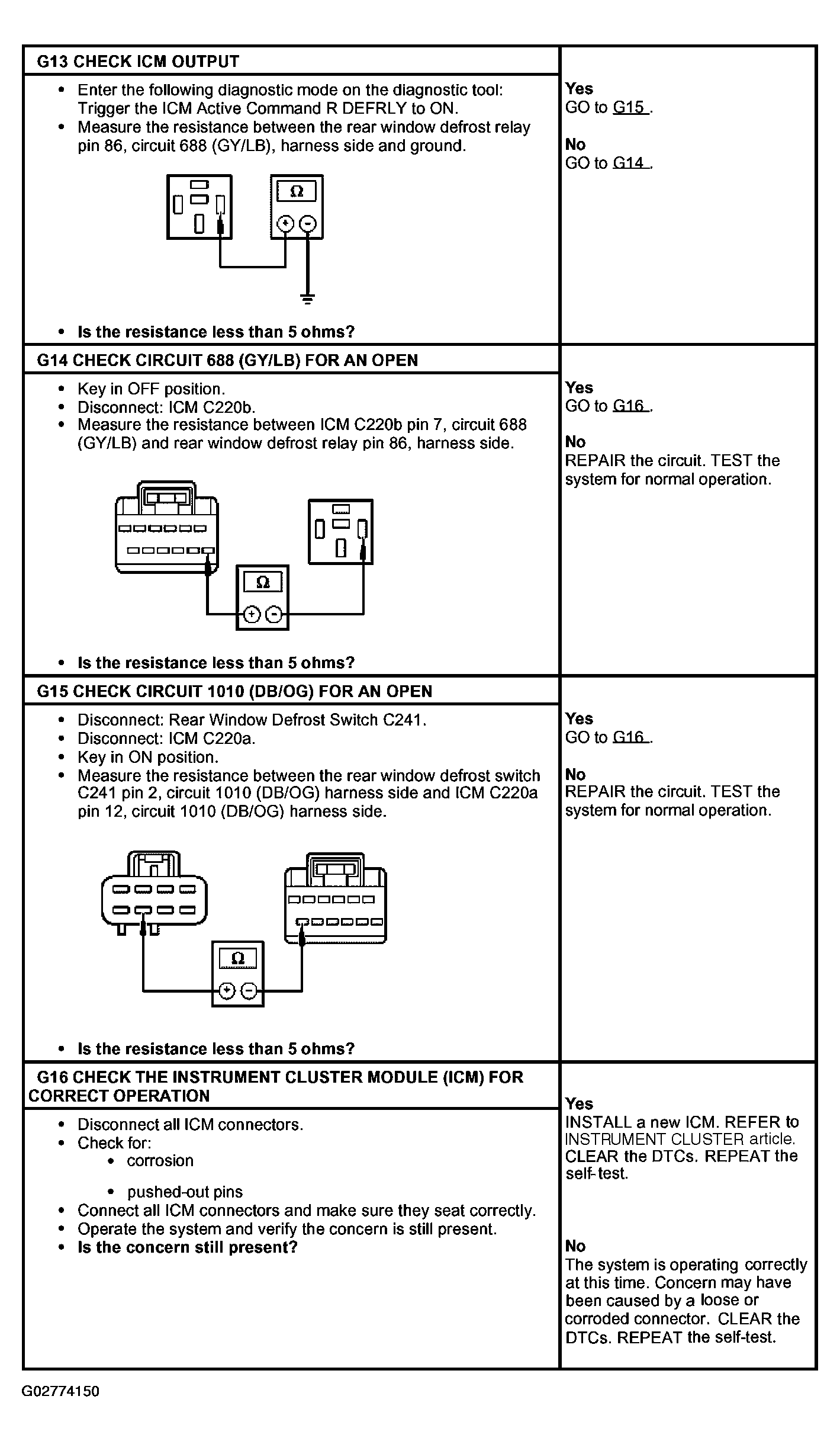

Fig 4: Pinpoint Test G: Defrost System Is Inoperative (G13-G16)
G02774150Courtesy of FORD MOTOR CO.
