Rear Seat Cushion - Excursion, Second Row: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Release the tension on the push nuts to allow the cushion studs to move freely.

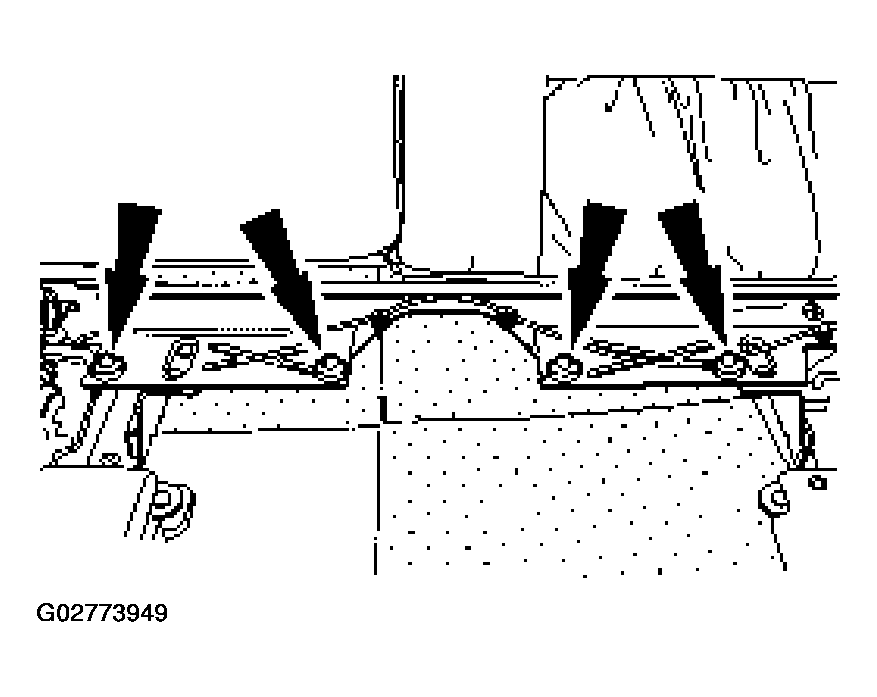

Fig 1: Releasing Tension On Push Nuts
Courtesy of FORD MOTOR CO.
Position the seat cushion to the seat riser, then loosely install the nuts.

Fig 2: Positioning Seat Cushion To Seat Riser
Courtesy of FORD MOTOR CO.

NOTE: Make sure the bumper pins are centered in the holes of the cushion frame.

Fig 3: Aligning Cushion Frame To Bumper Pins

Courtesy of FORD MOTOR CO.

Align the cushion frame to the bumper pins.

NOTE: Make sure the seat cushion is closed and positioned as if it were installed.

Fig 4: Tightening Nuts

Courtesy of FORD MOTOR CO.

Tighten the nuts.
Check the seat cushion latch for correct operation.
Install the seat. Refer to REAR SEAT - EXCURSION, SECOND ROW .
