Rear Seat Backrest - Third Row: Disassembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble the third row seat. Refer to REAR SEAT BACKREST - EXCURSION, THIRD ROW .
  2. Remove the two upper seat adjuster covers.
    • Remove the two pin-type retainers.

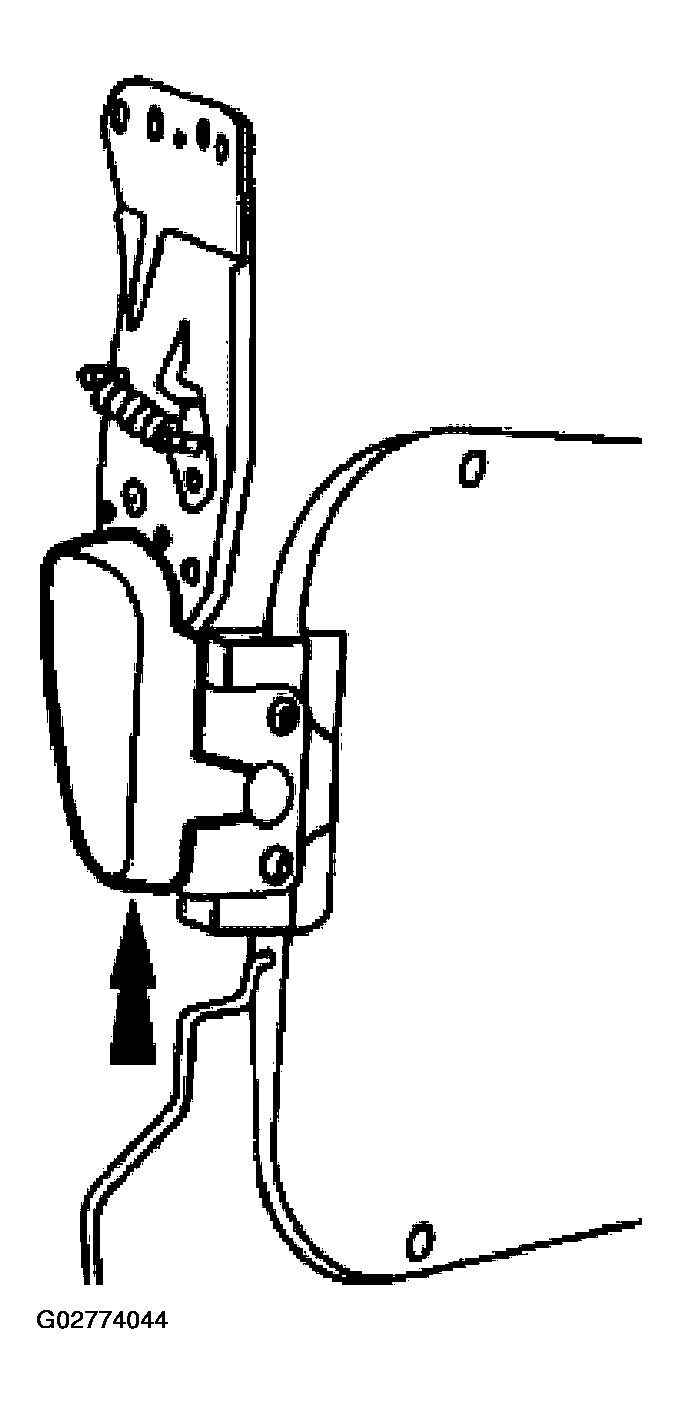

      Fig 1: Removing Pin-Type Retainers
      G02774044Courtesy of FORD MOTOR CO.
  3. Remove the two seat adjusters.
    1. Remove the two bolts.
    2. Remove the seat adjusters.
      Fig 2: Removing Seat Adjusters
      G02774045Courtesy of FORD MOTOR CO.
  4. Remove the seat backrest cover and cushion.
    1. Disconnect the seat cover J-clips.
    2. Remove the seat backrest cover and backrest foam pad from the frame.
      • Remove the hog rings from the frame.
        Fig 3: Removing Hog Rings From Frame
        G02774046Courtesy of FORD MOTOR CO.
  5. Remove the seat backrest trim cover from the seat foam pad.
