Disassembly and Assembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seat backrest. Refer to REAR SEAT BACKREST - EXCURSION, SECOND ROW .
Peel the armrest cover to access the bolt and spacer. Remove the bolt and the armrest.

Fig 1: Removing Bolt Of Armrest
Courtesy of FORD MOTOR CO.
Remove the headrest.
Remove the seat handle and clip.

Fig 2: Removing Seat Handle Clip
Courtesy of FORD MOTOR CO.
Release the two J-clips (one shown).

Fig 3: Releasing Two J-Clips
Courtesy of FORD MOTOR CO.
Position the upholstery and remove the hog rings.

Fig 4: Removing Hog Rings
Courtesy of FORD MOTOR CO.
Lift the backrest pad and remove the headrest guide pins.

Fig 5: Removing Headrest Guide Pins
Courtesy of FORD MOTOR CO.
Remove the upholstery.
Remove the staples from the seat backrest foam mesh, and remove the backrest foam pad.

Fig 6: Removing Staples From Seat Backrest Foam Mesh
Courtesy of FORD MOTOR CO.
Remove the seven screws in the backrest panel.

Fig 7: Removing Screws In Backrest Panel
Courtesy of FORD MOTOR CO.
Remove the spring pin screws.

Fig 8: Removing Spring Pin Screws
Courtesy of FORD MOTOR CO.

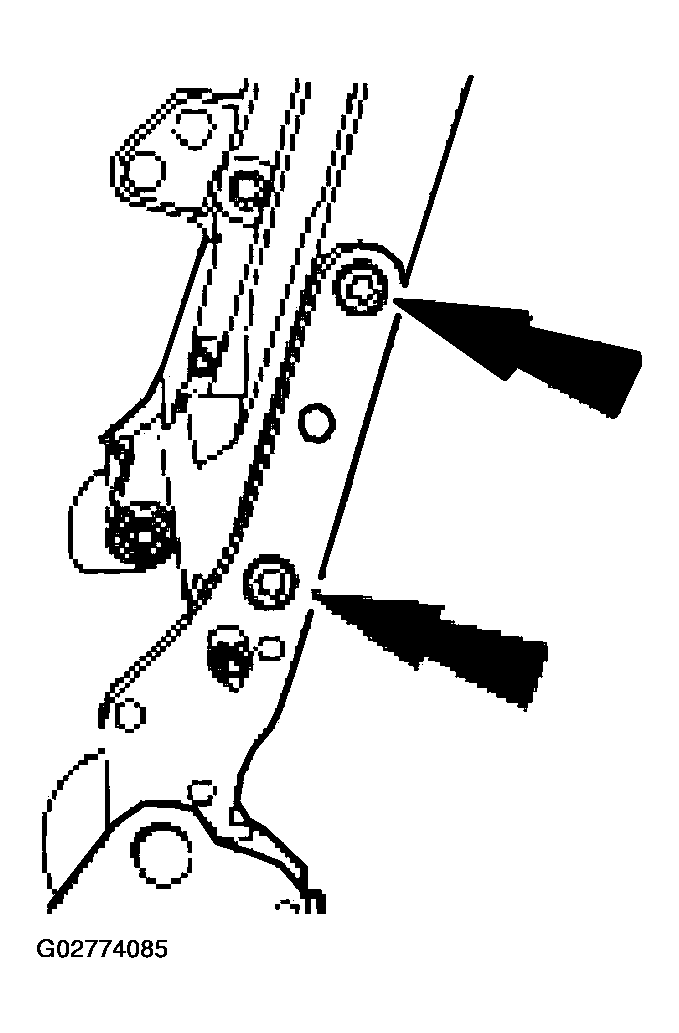

Remove the four bolts (two shown).

Fig 9: Removing Bolts
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
