Front Seat Backrest - With Seat Integrated Restraints (SIR): Assembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Recliner roll pin is not reusable. Install a new service unit incorporating a "shoulder flare" to limit insertion depth.
    NOTE: When correctly installed, the rollpin should extend equally from either side of the backrest frame rail.
    Fig 1: Installing Backrest Recliner Rollpin
    G02774101Courtesy of FORD MOTOR CO.
  1. Position the recliner arm on the backrest frame. Using a hammer, install a new backrest recliner rollpin.
  2. Install the backrest recliner arm trim cover and install pin-type retainer.
    Fig 2: Installing Backrest Recliner Arm Trim Cover
    G02774102Courtesy of FORD MOTOR CO.
  3. Install the lumbar adjuster basket.
    1. Position the lumbar basket onto its lower attachment.
    2. Pull the lumbar basket up to its upper attachment and, using a screwdriver, pry onto retainer lip.
    3. Install a new lumbar adjuster cable tie strap.
      Fig 3: Installing Lumbar Adjuster Cable Tie Strap
      G02774103Courtesy of FORD MOTOR CO.
  4. Install the seat backrest frame.
    1. Install the seat backrest frame into the backrest cushion foam while feeding safety belt through opening in backrest cover.
    2. Attach the seat backrest cushion fabric.

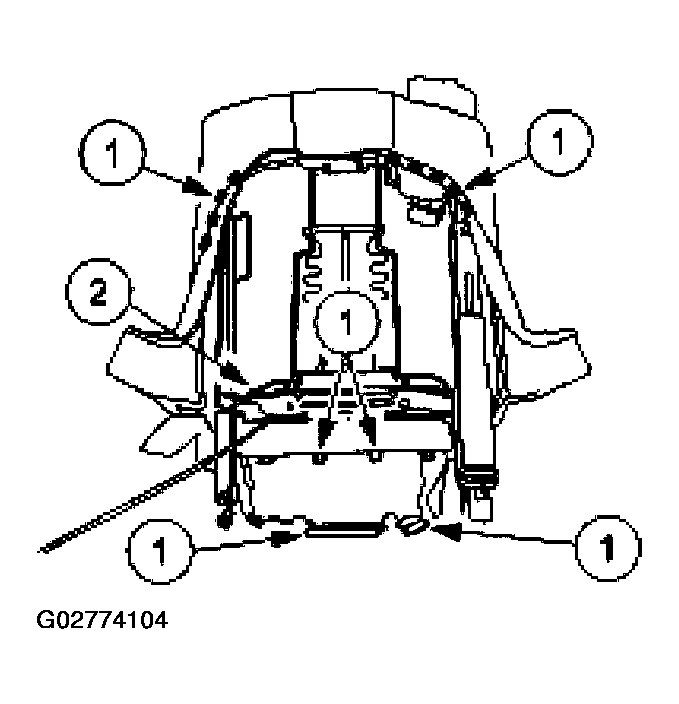

      Fig 4: Attaching Seat Backrest Cushion Fabric
      G02774104Courtesy of FORD MOTOR CO.
    5. NOTE: Do not allow safety belt to recoil back into the retractor.
    NOTE: Safety belt retractors are specific to LH or RH seats and are not interchangeable.
    Fig 5: Installing Safety Belt Retractor And Safety Belt Retractor Bolt
    G02774105Courtesy of FORD MOTOR CO.
  5. Feed the safety belt through the retractor bracket hole and install the safety belt retractor and safety belt retractor bolt.
  6. Install the front and outer safety belt web guides, while placing the safety belt in between outer and inner safety belt guides.
    Fig 6: Installing Front And Outer Safety Belt Web Guides
    G02774106Courtesy of FORD MOTOR CO.
    7. NOTE: Make sure the front web guide is correctly fit into the lower web guide before the retainer bracket is installed.
    NOTE: Note the retainer bracket orientation. Do not reverse the bracket during reassembly.
    Fig 7: Installing Retainer Bracket
    G02774107Courtesy of FORD MOTOR CO.
  7. Install the retainer bracket and secure with two screws.
  8. Attach the trim cover over the retainer bracket.
    9. NOTE: The LH and RH tower cap covers are not interchangeable.
    Fig 8: Installing Tower Cap Attachment Screws
    G02774108Courtesy of FORD MOTOR CO.
  9. Slip the safety belt through slot on tower cap cover and then slide cover down onto seat back and install the four tower cap attachment screws and the LH, RH and front screw covers.
    10. NOTE: The LH and RH head restraint rod guides are not interchangeable.
    NOTE: Install new units during reassembly. The LH and RH head restraint rod guides will be damaged during removal.
    Fig 9: Installing Head Restraint Rod Guides
    G02774109Courtesy of FORD MOTOR CO.
  10. Install the head restraint rod guides.
    11. CAUTION: If headrest is inserted without pressing release button, the rod guides will be damaged.
  11. Install the head restraint.
    1. Insert the head restraint rods into the rod guides.
    2. Press release button and push the head restraint rod past its stop position.
      Fig 10: Inserting Head Restraint Rods Into Rod Guides
      G02774110Courtesy of FORD MOTOR CO.
  12. Install the seat backrest trim cover.
    1. Place the trim cover against seat backrest and slide up to engage upper attachments.
    2. Engage lower and side attachments.
      Fig 11: Placing Trim Cover Against Seat Backrest
      G02774111Courtesy of FORD MOTOR CO.
    13. NOTE: Prior to installation, make sure the safety belt webbing is not twisted.
  13. Install the nut and safety belt anchor.
    • Make sure anti-rotation tab is properly positioned into seat frame.
      Fig 12: Installing Nut And Safety Belt Anchor
      G02774112Courtesy of FORD MOTOR CO.
  14. Install the side shield. Refer to SEAT CONTROL SWITCH - WITH SEAT INTEGRATED RESTRAINTS (SIR) .
  15. Install the front seat. Refer to FRONT SEAT - WITH SEAT INTEGRATED RESTRAINTS (SIR) .
  16. Repower the SRS. Refer to AIR BAG RESTRAINT SYSTEMS .
