Pinpoint Test F: The Power Seat Does Not Move Horizontally/Vertically - Vehicles With Sir, Passenger Side

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

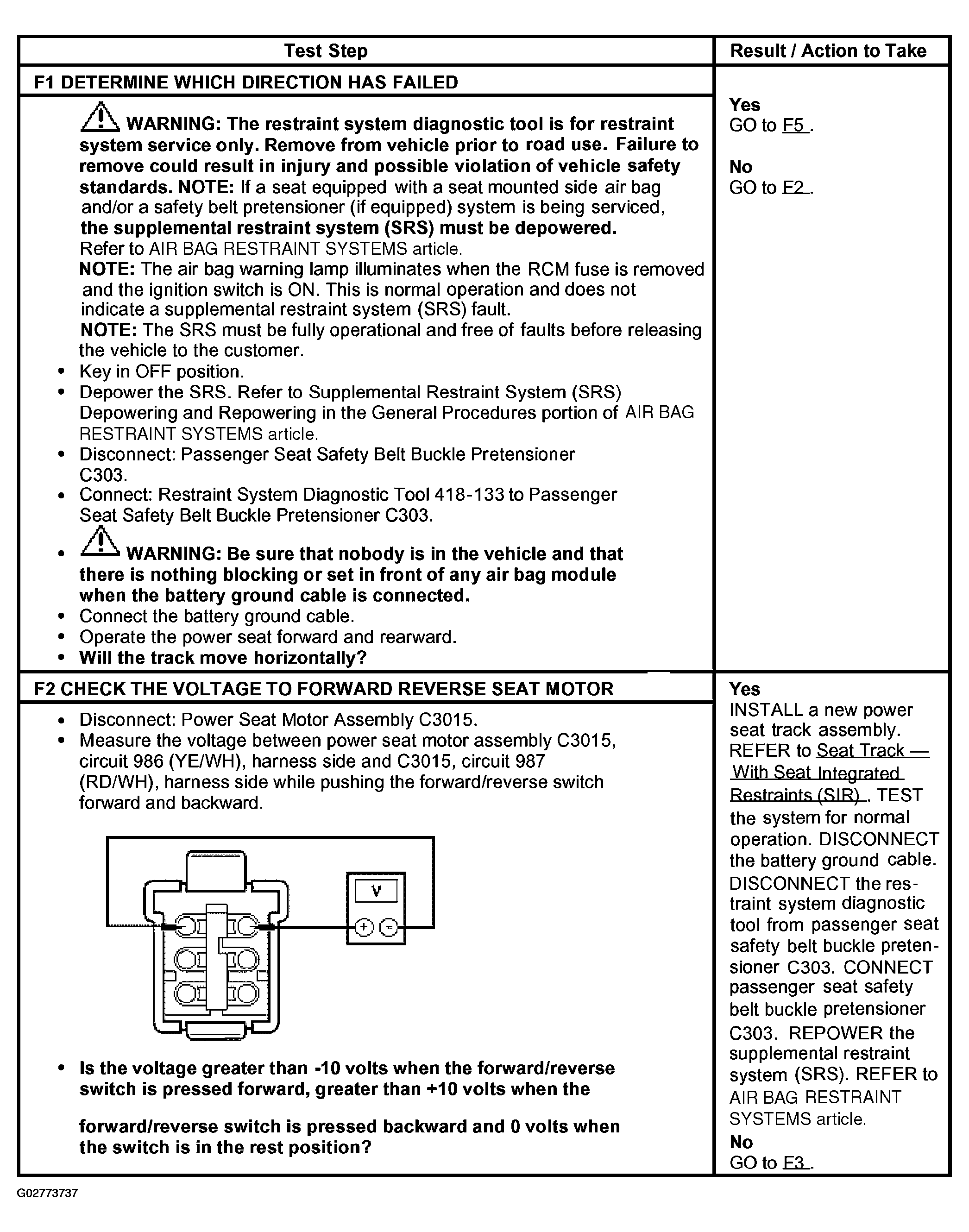

Fig 1: Pinpoint Test F: Power Seat Does Not Move Horizontally/Vertically - Vehicles With Sir, Passenger Side (Step F1 & F2)
G02773737Courtesy of FORD MOTOR CO.

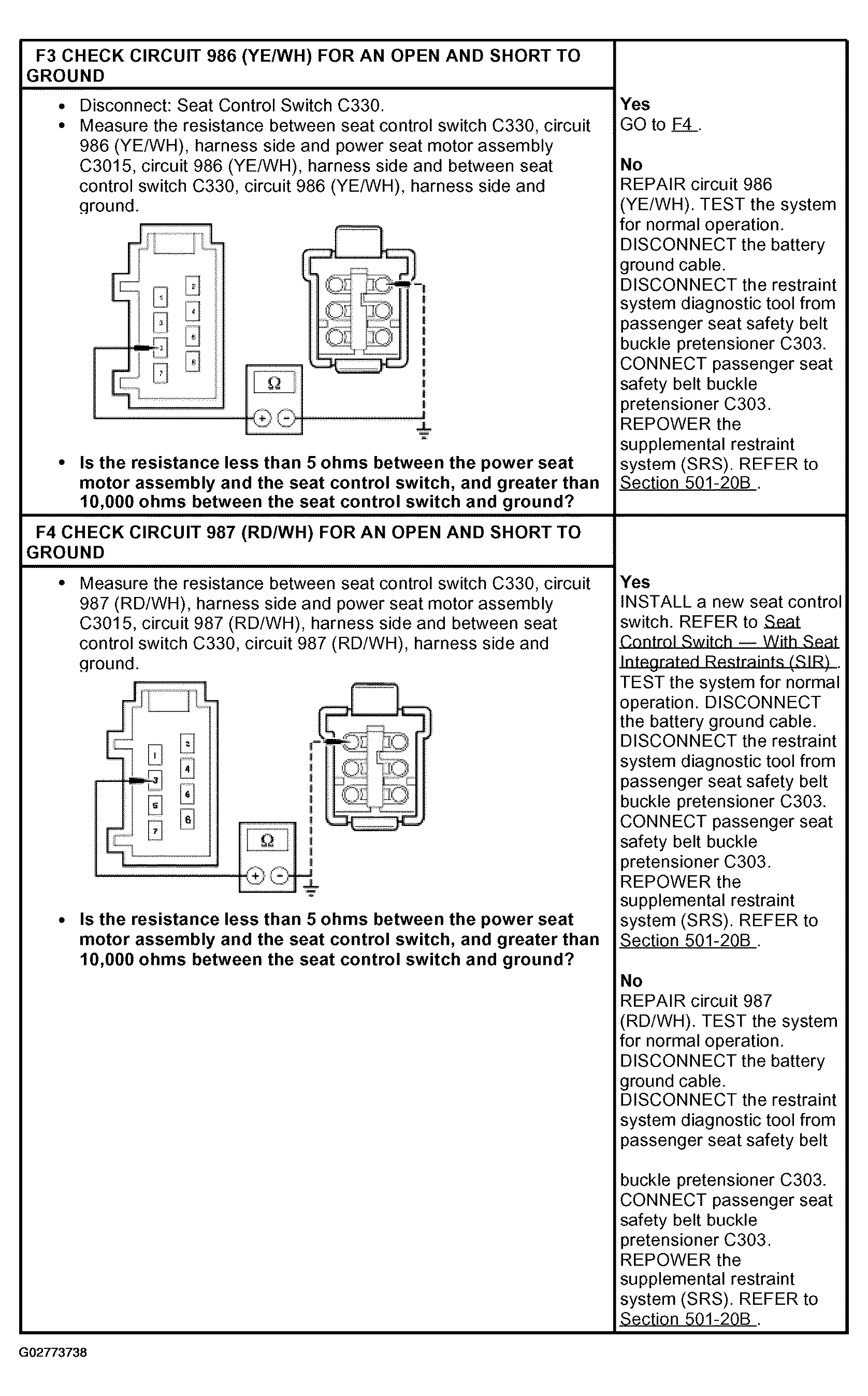

Fig 2: Pinpoint Test F: Power Seat Does Not Move Horizontally/Vertically - Vehicles With Sir, Passenger Side (Step F3 & F4)
G02773738Courtesy of FORD MOTOR CO.

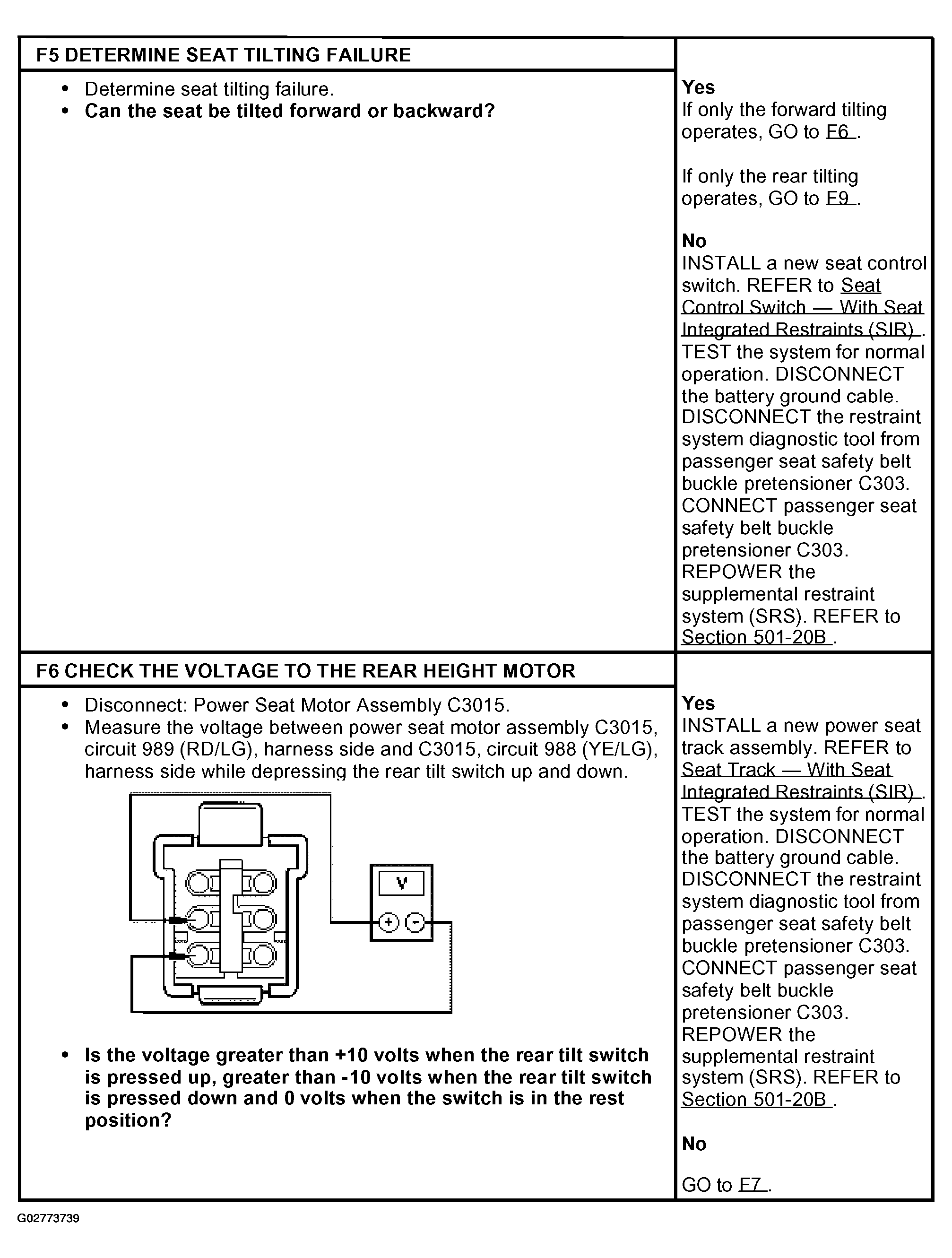

Fig 3: Pinpoint Test F: Power Seat Does Not Move Horizontally/Vertically - Vehicles With Sir, Passenger Side (Step F5 & F6)
G02773739Courtesy of FORD MOTOR CO.
Fig 4: Pinpoint Test F: Power Seat Does Not Move Horizontally/Vertically - Vehicles With Sir, Passenger Side (Step F7 & F8)
G02773740Courtesy of FORD MOTOR CO.
Fig 5: Pinpoint Test F: Power Seat Does Not Move Horizontally/Vertically - Vehicles With Sir, Passenger Side (Step F9-F11)
G02773741Courtesy of FORD MOTOR CO.
