Pinpoint Test C: The Power Seat Does Not Move Horizontally/Vertically - Vehicles Without Sir, Driver Side

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

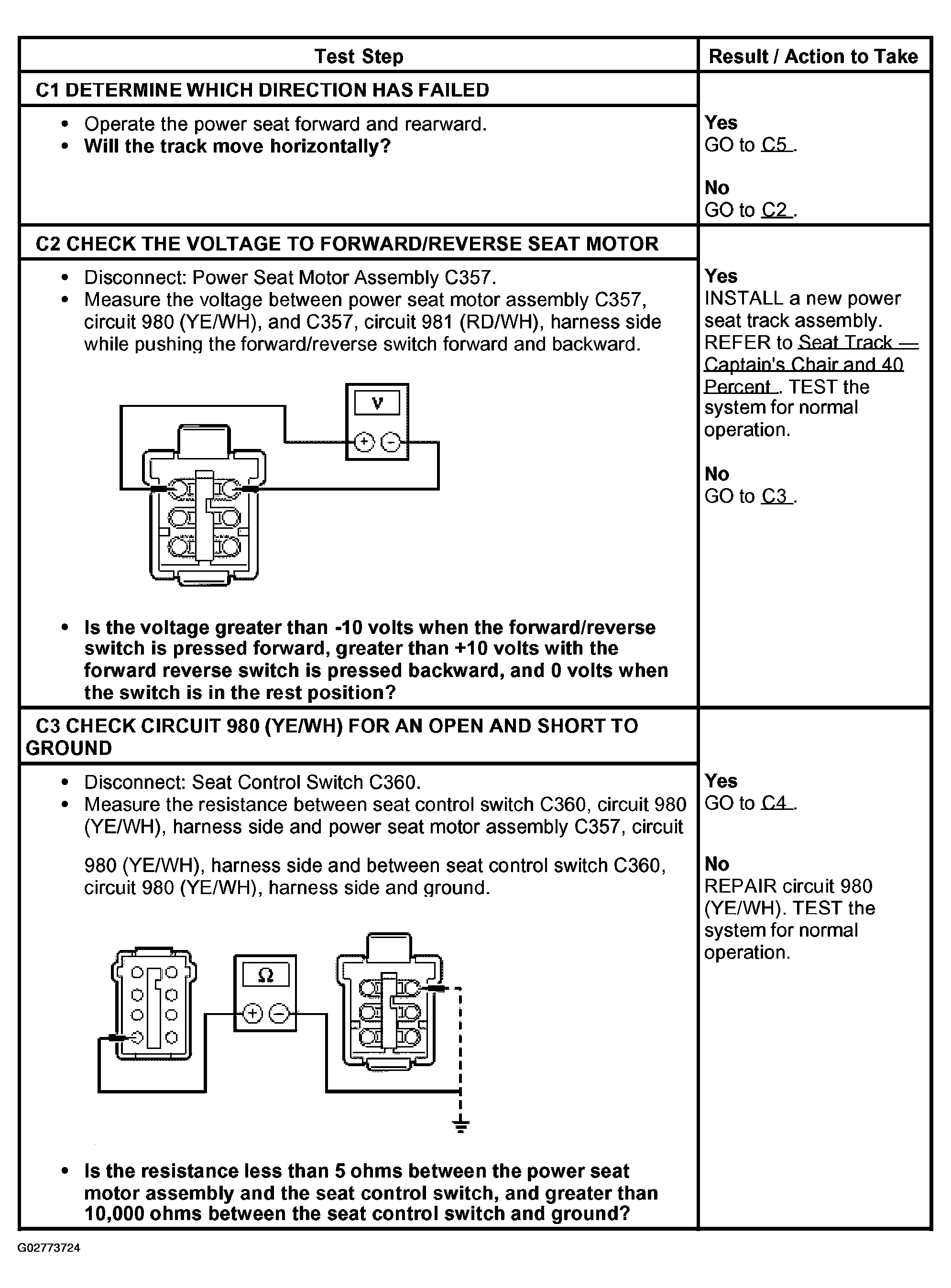

Fig 1: Pinpoint Test C: Power Seat Does Not Move Horizontally/Vertically - Vehicles Without Sir, Driver Side (Step C1-C3)
G02773724Courtesy of FORD MOTOR CO.

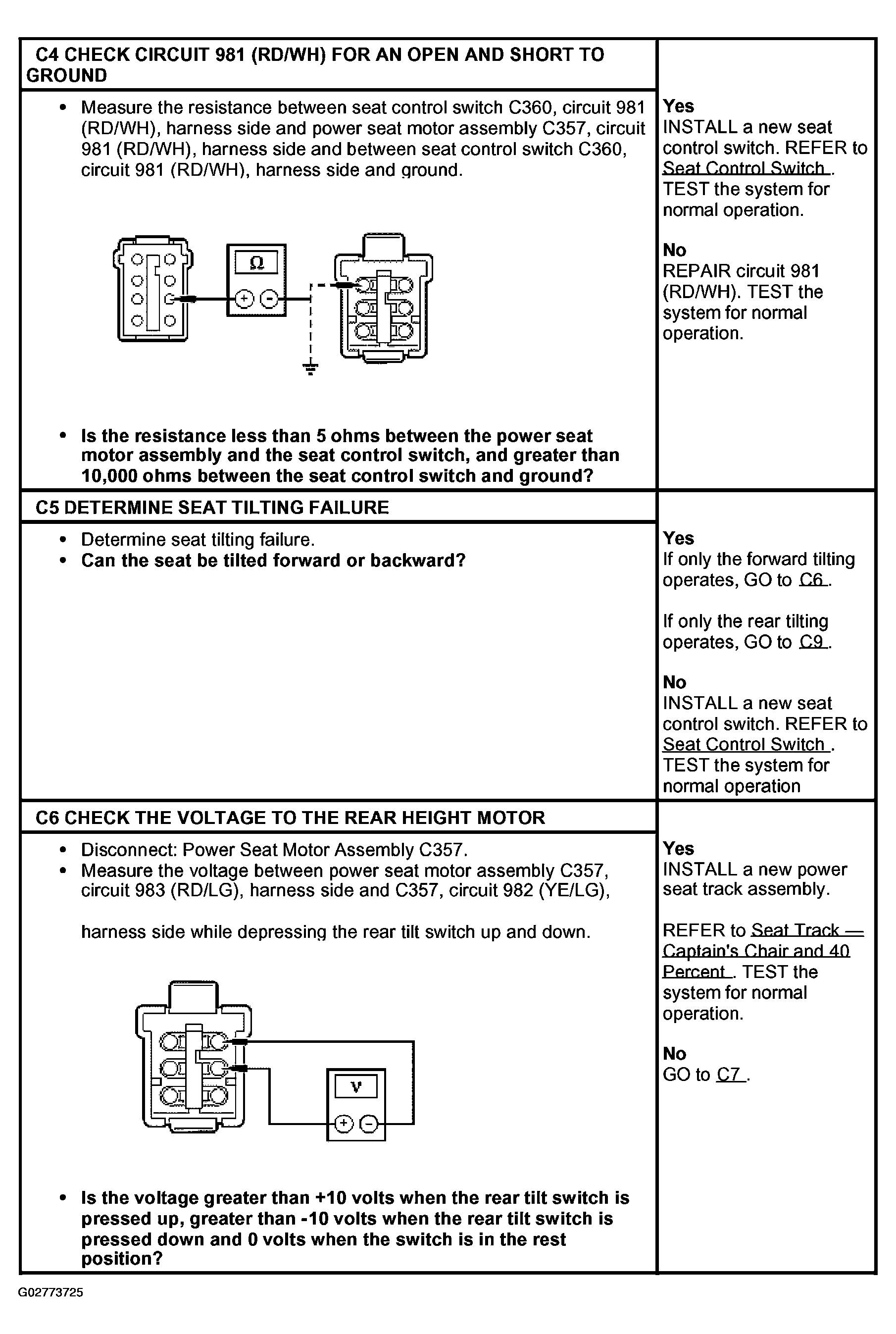

Fig 2: Pinpoint Test C: Power Seat Does Not Move Horizontally/Vertically - Vehicles Without Sir, Driver Side (Step C4-C6)
G02773725Courtesy of FORD MOTOR CO.

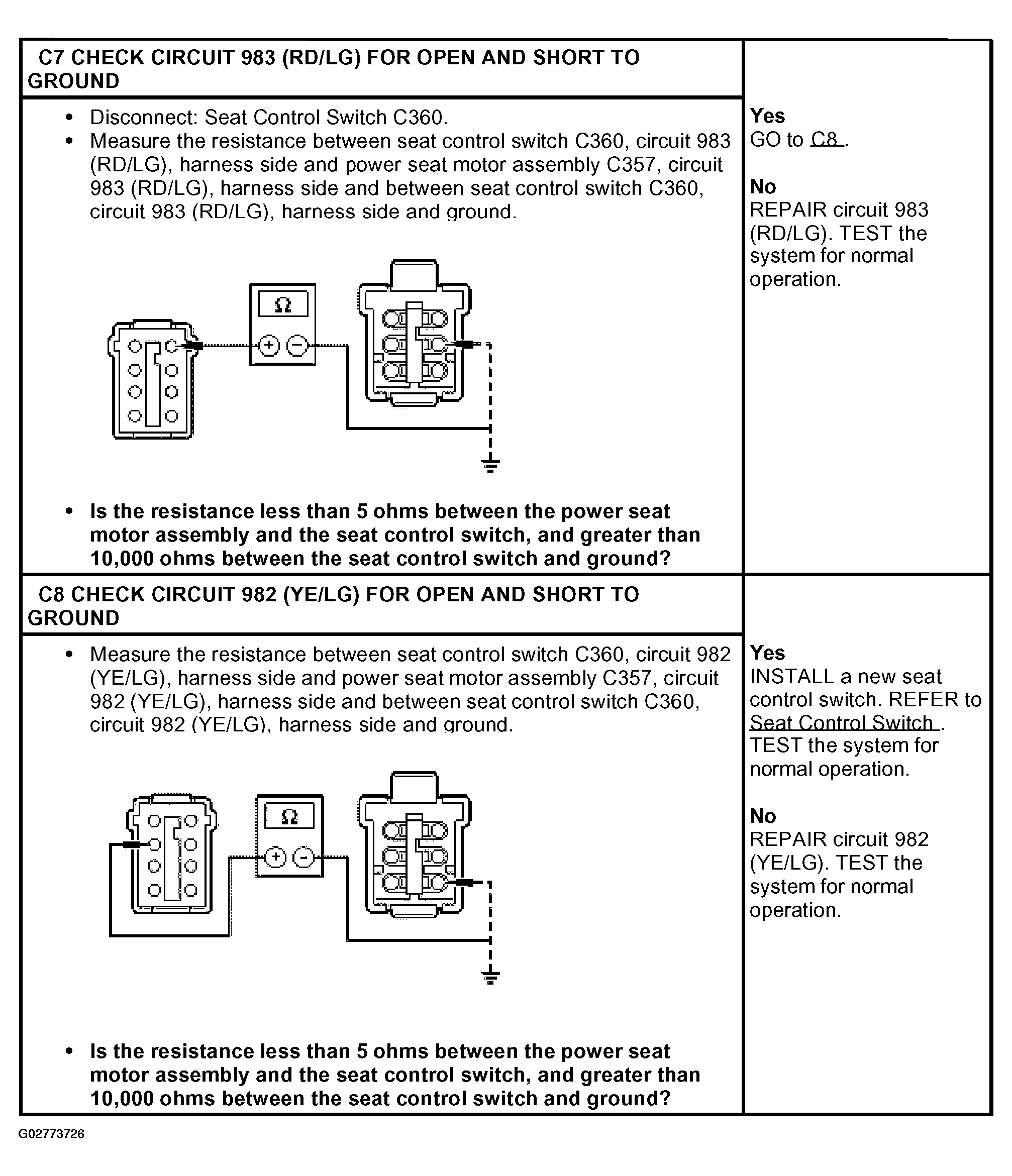

Fig 3: Pinpoint Test C: Power Seat Does Not Move Horizontally/Vertically - Vehicles Without Sir, Driver Side (Step C7 & C8)
G02773726Courtesy of FORD MOTOR CO.

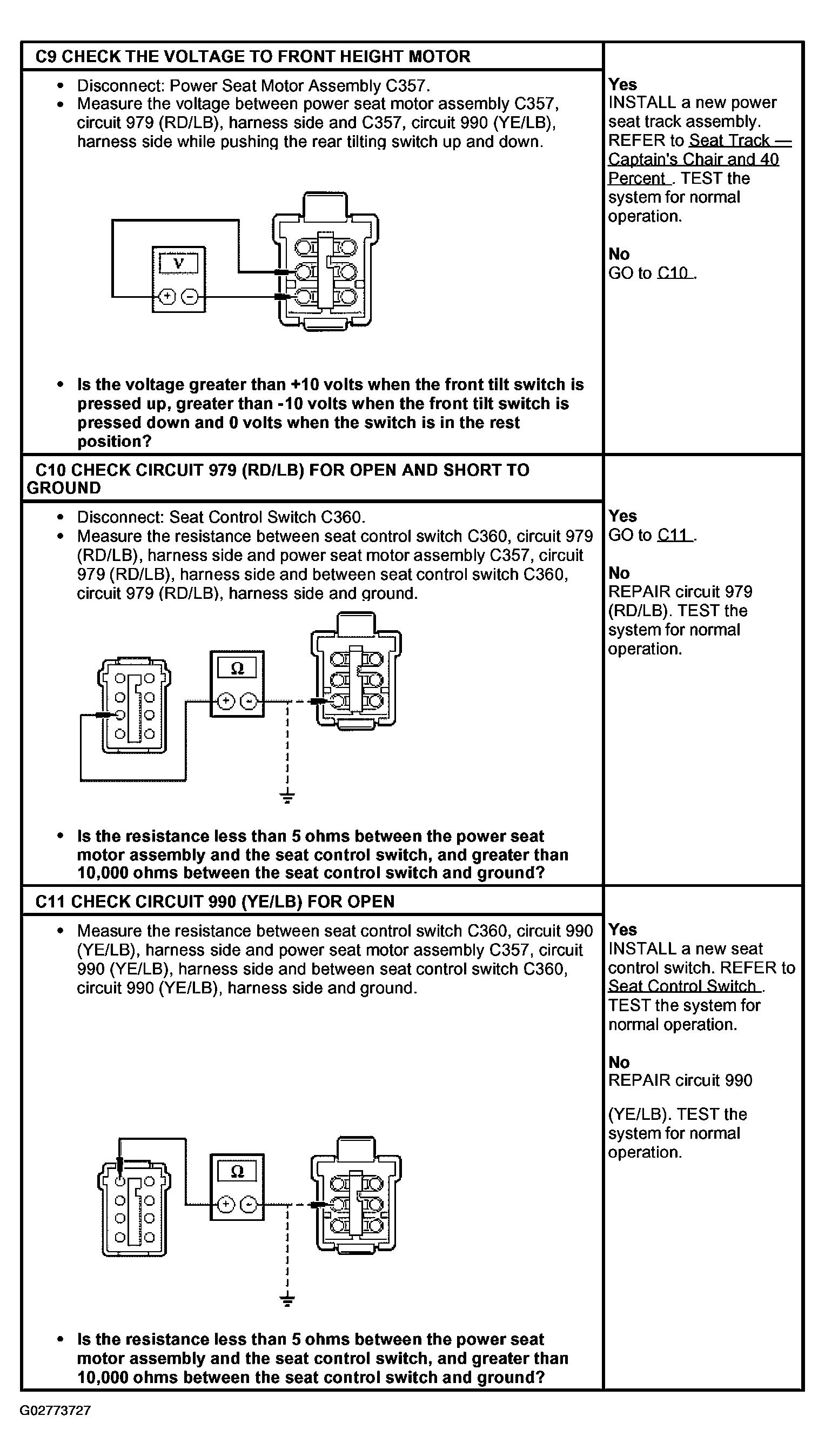

Fig 4: Pinpoint Test C: Power Seat Does Not Move Horizontally/Vertically - Vehicles Without Sir, Driver Side (Step C9-C11)
G02773727Courtesy of FORD MOTOR CO.
