Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following removal and installation procedures apply to all original-equipment DVD player units.

Disconnect the battery. Refer to BATTERY, MOUNTING AND CABLES .
Remove the screws.

Fig 1: Removing Video System Enclosure Screws
Courtesy of FORD MOTOR CO.
Lower the video system enclosure.
- Grasp the front edge of the enclosure and pull down gently.

  Fig 2: Removing Video System Enclosure
  Courtesy of FORD MOTOR CO.
Disconnect the DVD player electrical connector.

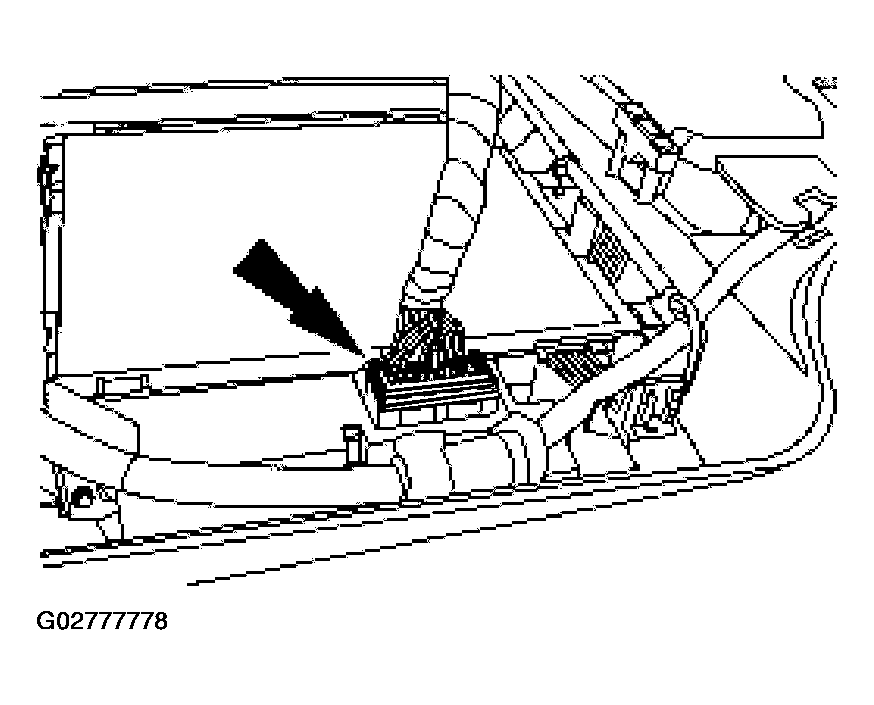

Fig 3: Disconnecting DVD Player Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the heater control electrical connectors.

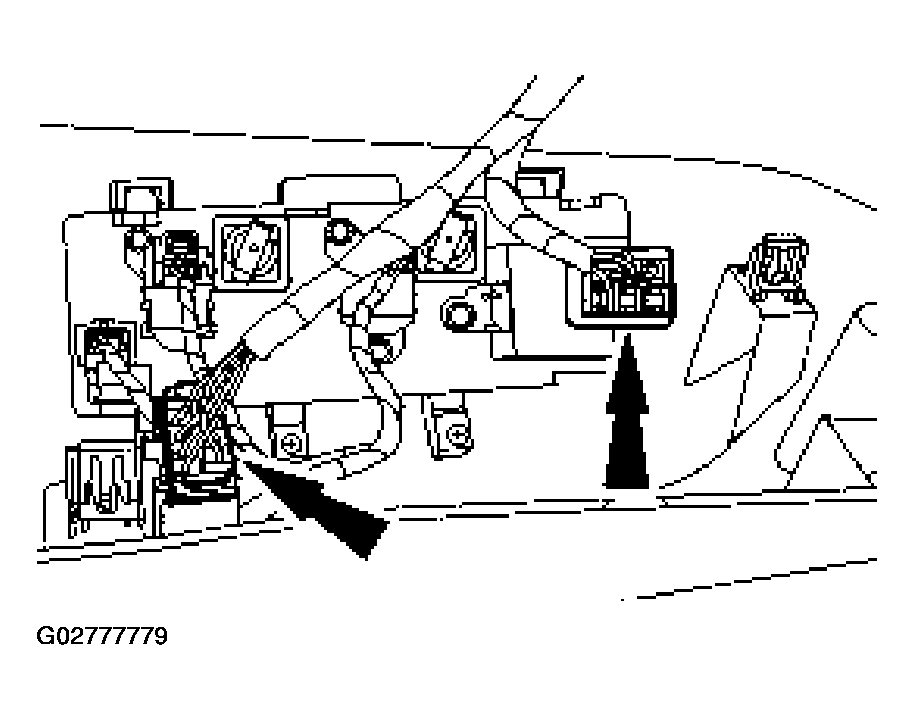

Fig 4: Disconnecting Heater Control Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the DVD player.
1. Disconnect the electrical connector.
2. Remove the screws.

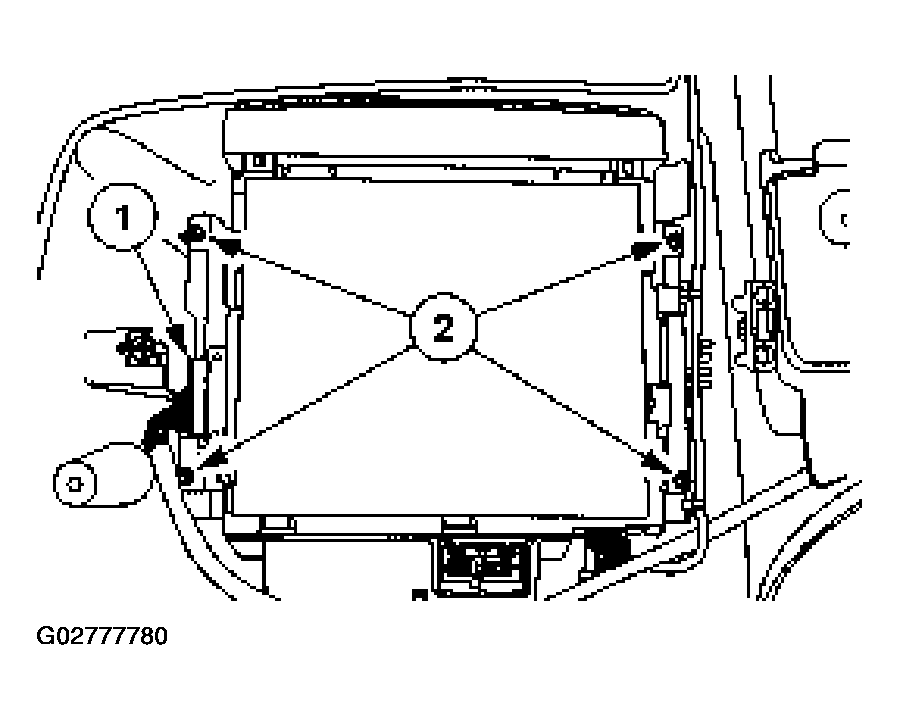

  Fig 5: Removing DVD Player Screws
  Courtesy of FORD MOTOR CO.
Disconnect the infrared electrical connector.

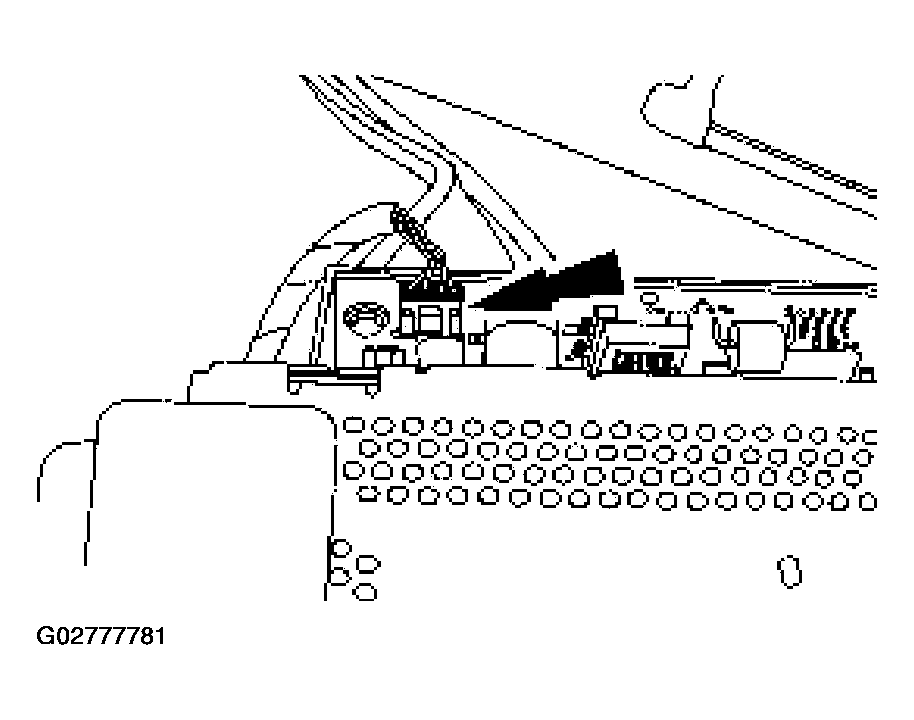

Fig 6: Disconnecting Infrared Electrical Connector
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
