Pinpoint Test M: The Brake Warning Indicator Is Never On

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

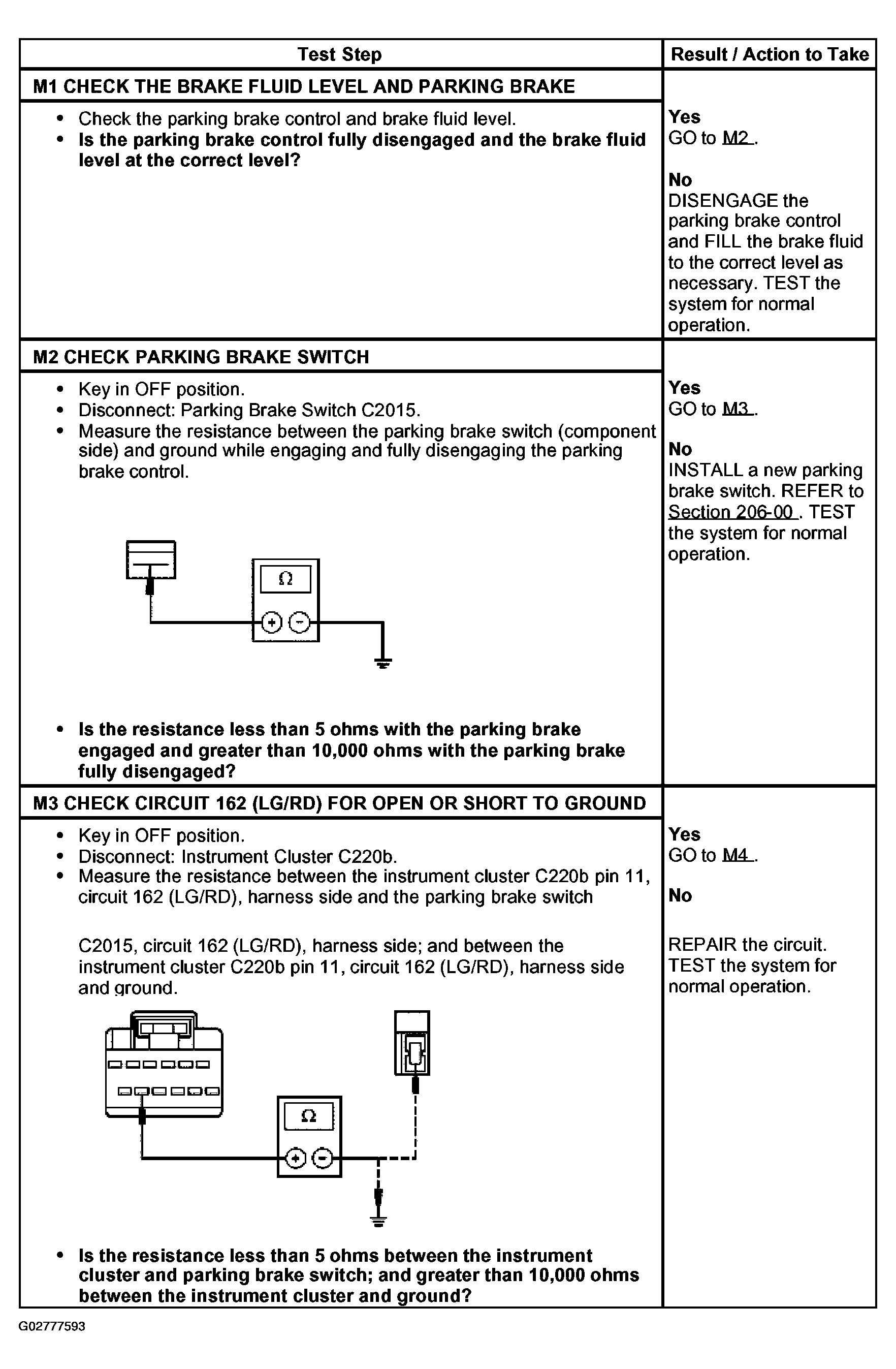

Fig 1: Pinpoint Test M Brake Warning Indicator (M1-M3)

Courtesy of FORD MOTOR CO.

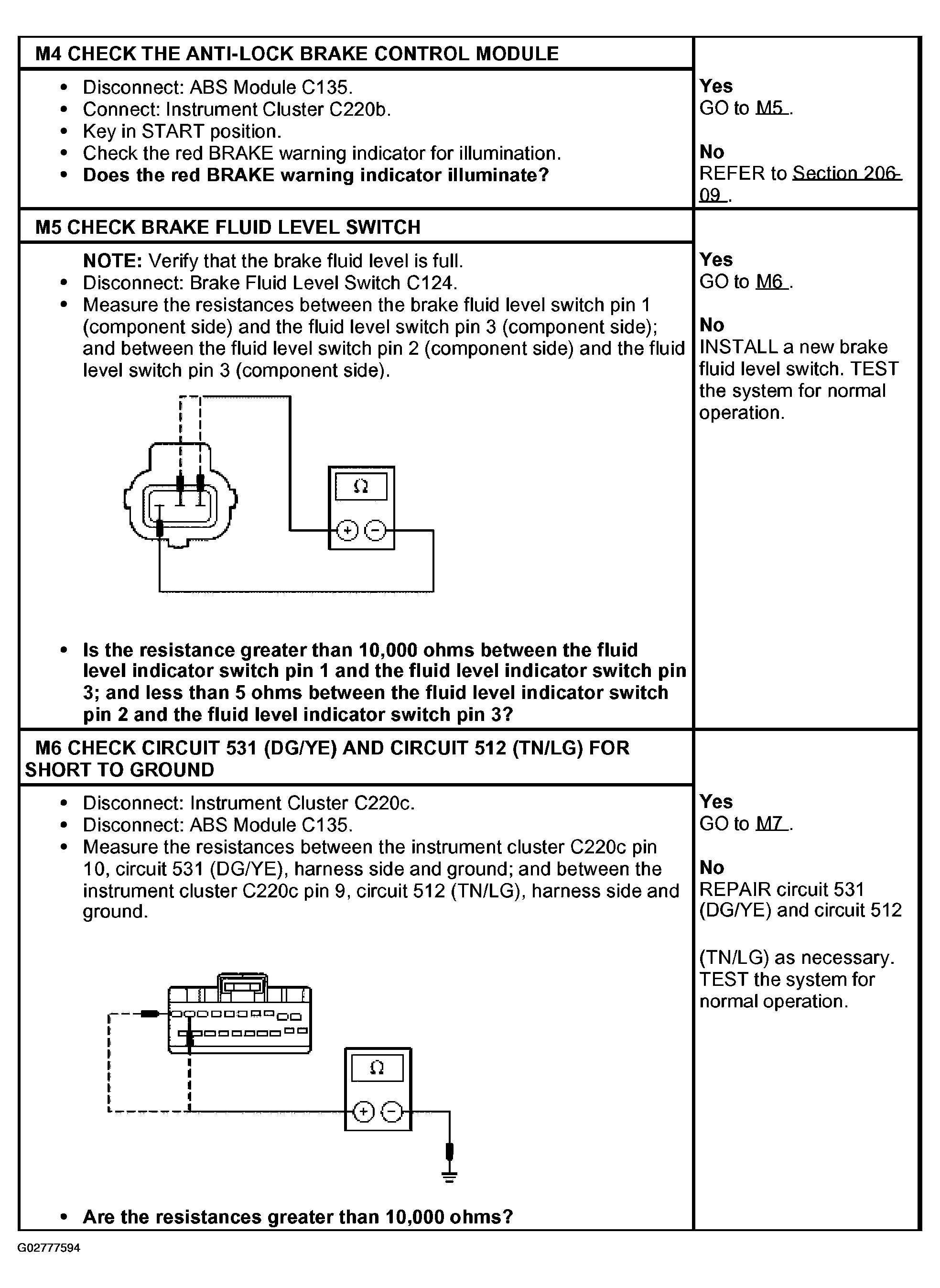

Fig 2: Pinpoint Test M Brake Warning Indicator (M4-M6)

Courtesy of FORD MOTOR CO.

Fig 3: Pinpoint Test M Brake Warning Indicator (M7-M9)

Courtesy of FORD MOTOR CO.
