Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the control assembly. Refer to CLIMATE CONTROL ASSEMBLY - MANUAL A/C .
Remove the knobs.

Fig 1: Removing Knobs
Courtesy of FORD MOTOR CO.
Remove the blend door potentiometer.
1. Remove the screw.
2. Rotate and remove the blend door potentiometer.

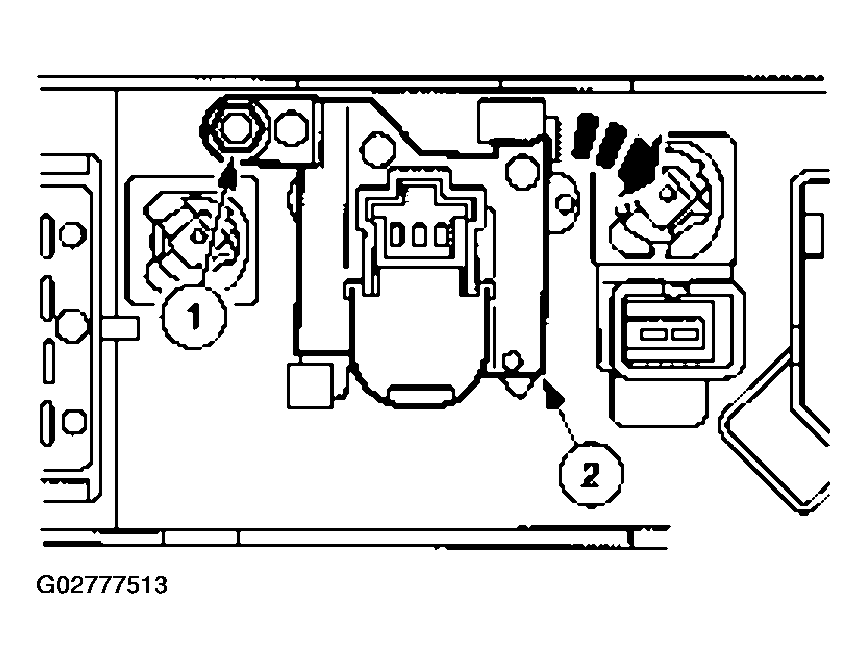

  Fig 2: Removing Screw And Blend Door Potentiometer
  Courtesy of FORD MOTOR CO.
Depress the tabs and remove the blower motor control switch.

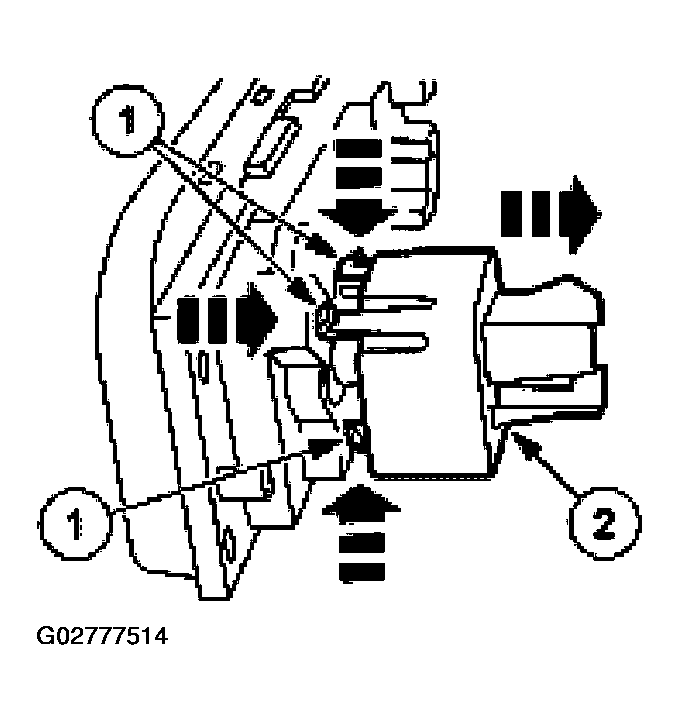

Fig 3: Removing Blower Motor Control Switch
Courtesy of FORD MOTOR CO.
Depress the tabs and remove the damper door switch.

Fig 4: Removing Damper Door Switch
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
