Service Gauge Port Valves
WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

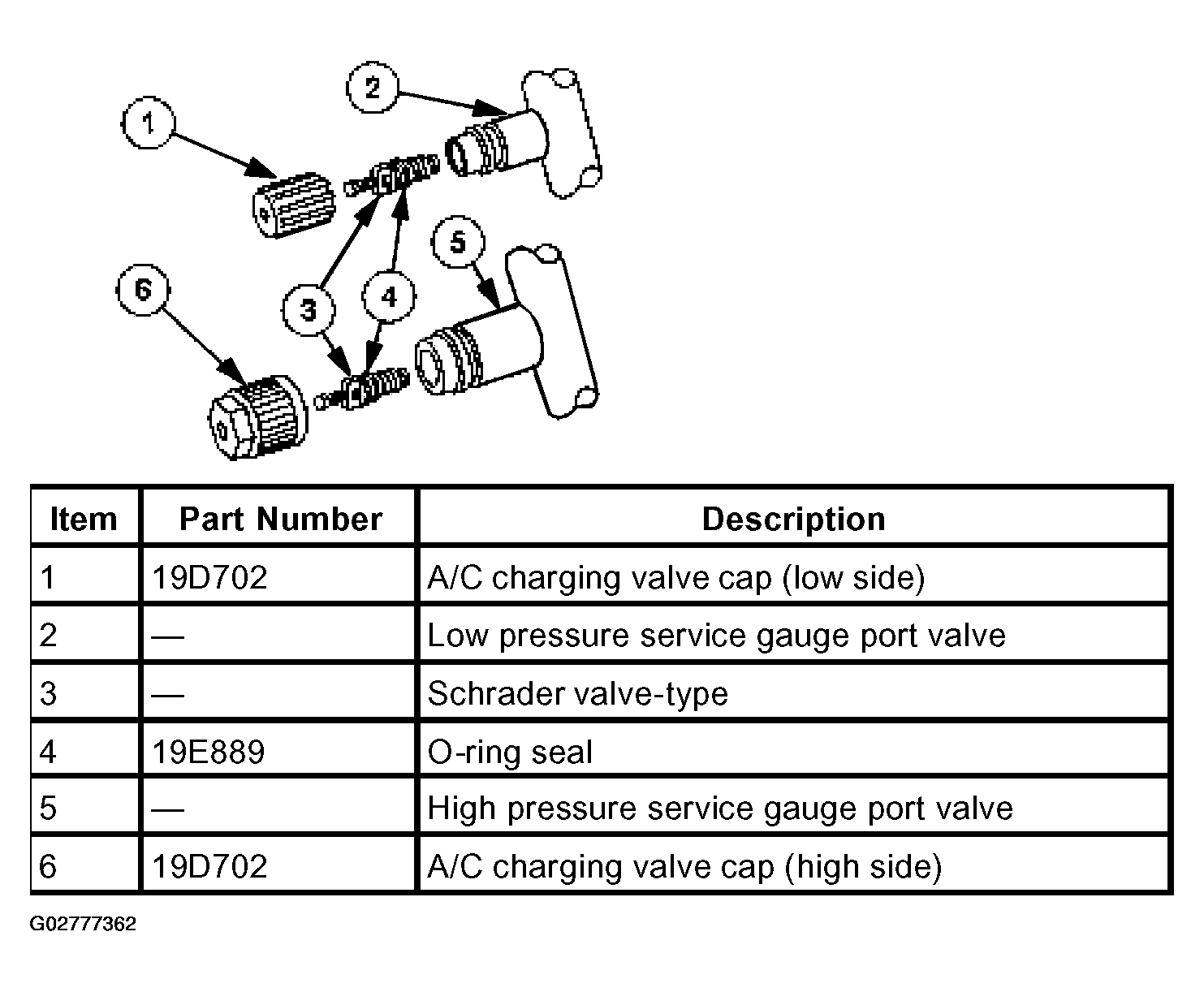

The high-pressure service gauge port valve is located on the A/C manifold and tube.
The low pressure service gauge port valve is located on the suction accumulator.
The fitting is an integral part of the refrigeration line or component.
- Special couplings are required for both the high side and the low side service gauge ports.
- The Schrader valve-type core can be replaced if the seal leaks.
- Always install the A/C charging valve cap on the service gauge port valves after repairing there fragrant system.
