Pinpoint Test Y: The Front/Rear Auxiliary Blower Motor Switch Operates Only In Hi

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

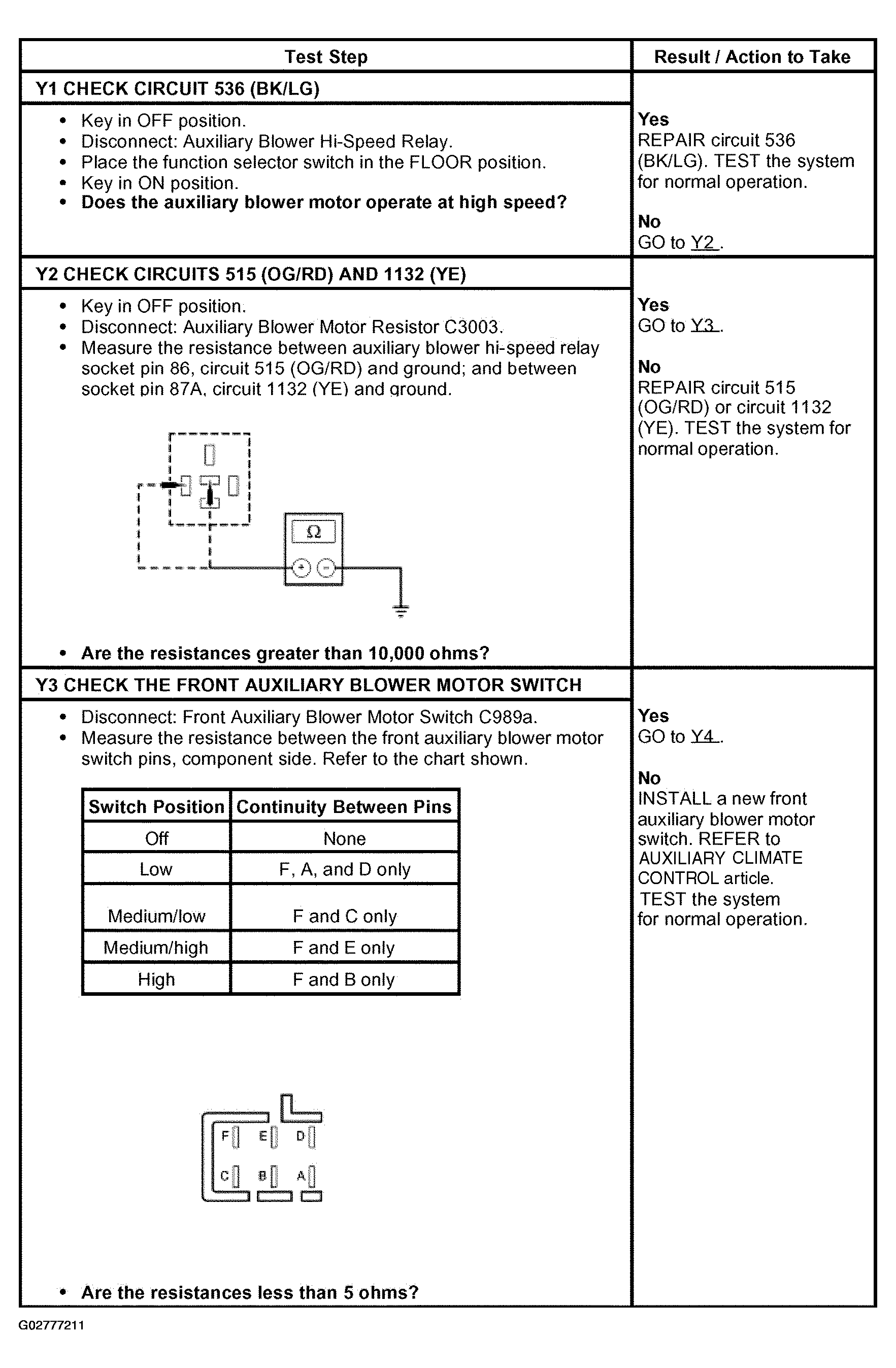

Fig 1: Pinpoint Test Y: Front/Rear Auxiliary Blower Motor Switch Operates Only In Hi (Step Y1 To Y3)
G02777211Courtesy of FORD MOTOR CO.

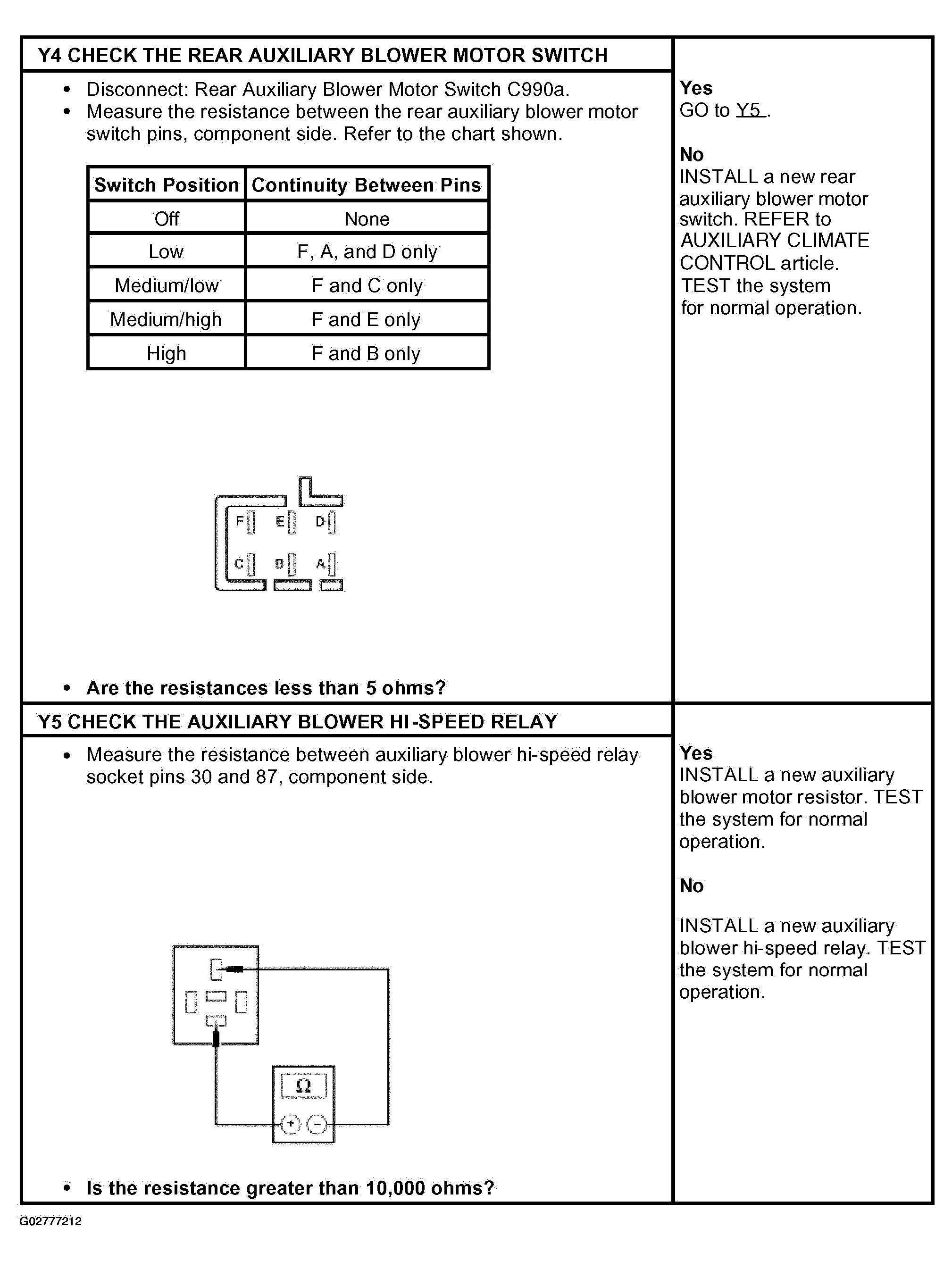

Fig 2: Pinpoint Test Y: Front/Rear Auxiliary Blower Motor Switch Operates Only In Hi (Step Y4 To Y5)
G02777212Courtesy of FORD MOTOR CO.
