Pinpoint Test T: The Auxiliary Blower Motor Does Not Operate

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

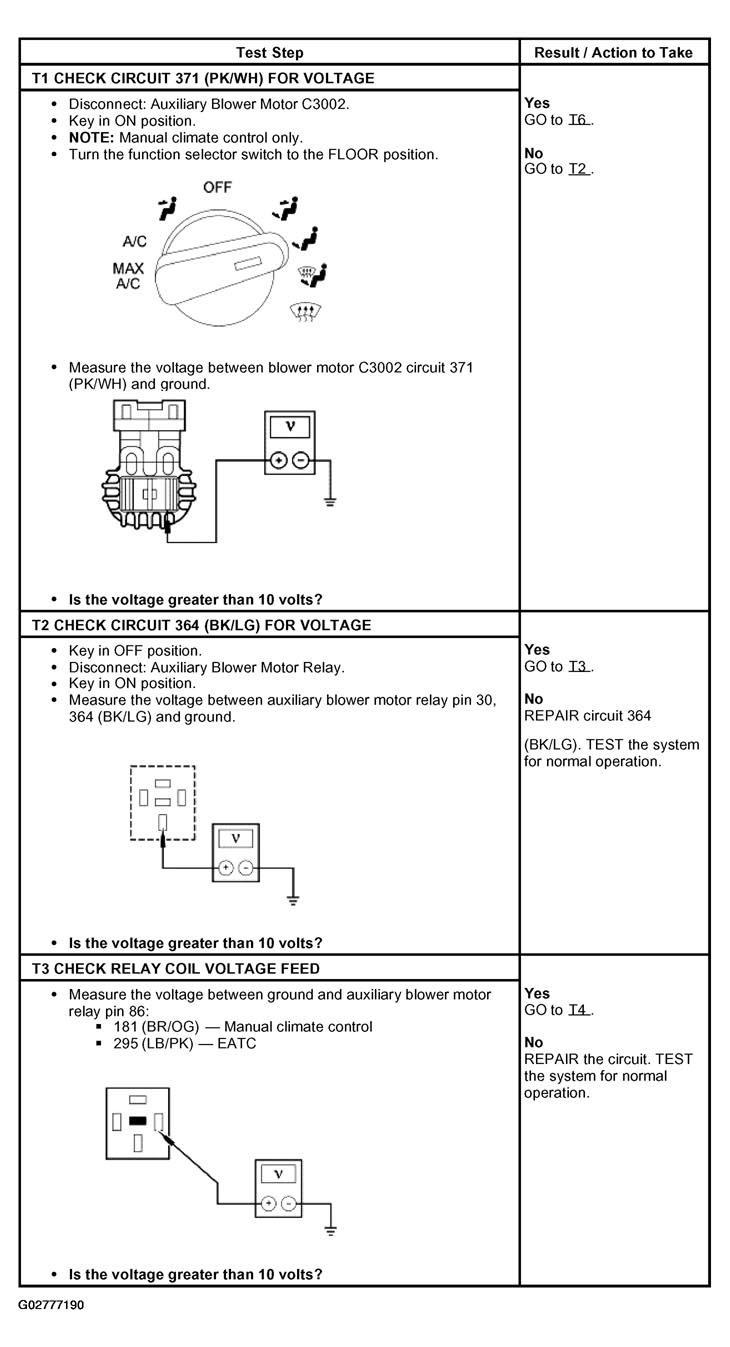

Fig 1: Pinpoint Test T: Auxiliary Blower Motor Does Not Operate (Step T1 To T3)

Courtesy of FORD MOTOR CO.

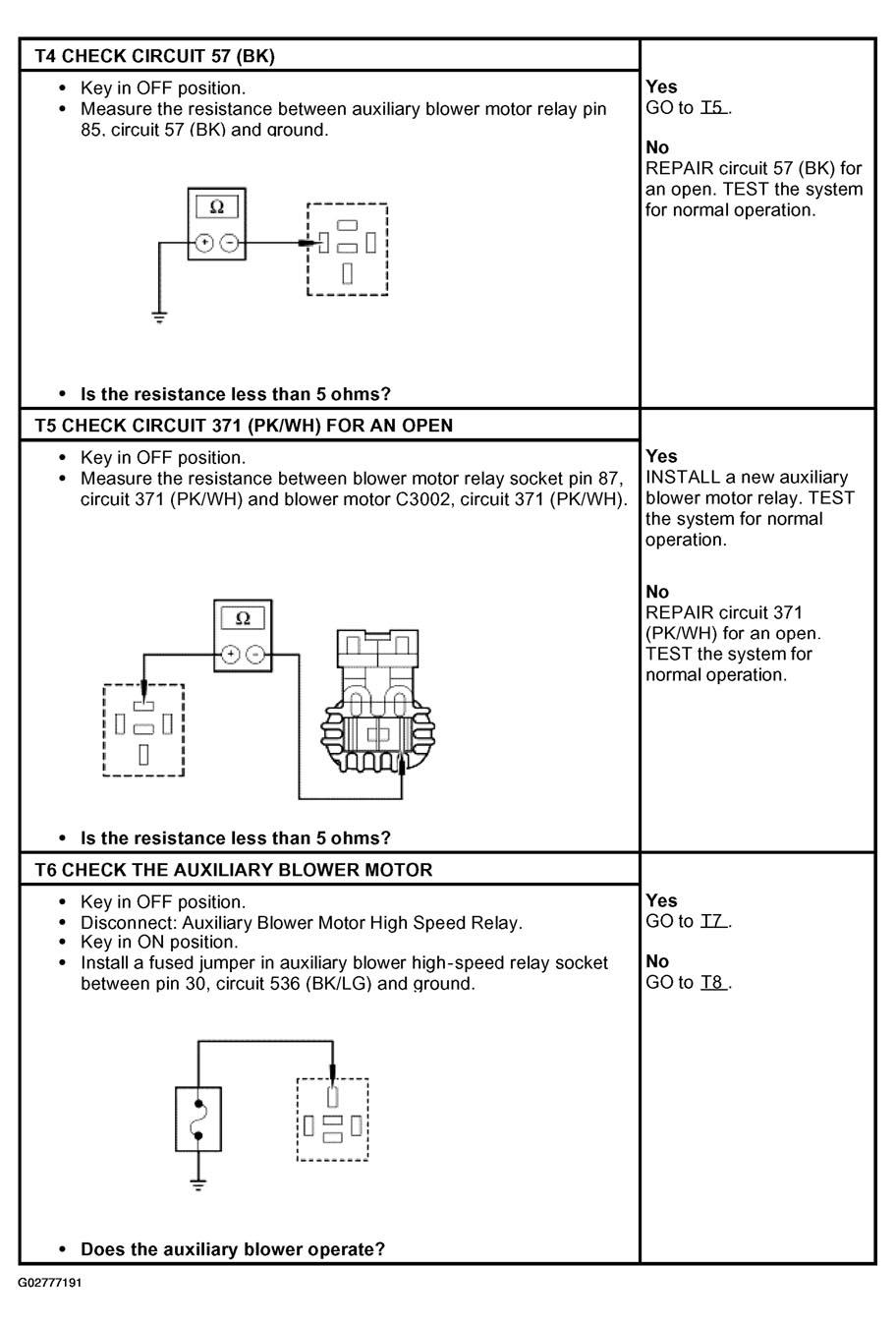

Fig 2: Pinpoint Test T: Auxiliary Blower Motor Does Not Operate (Step T4 To T6)

Courtesy of FORD MOTOR CO.

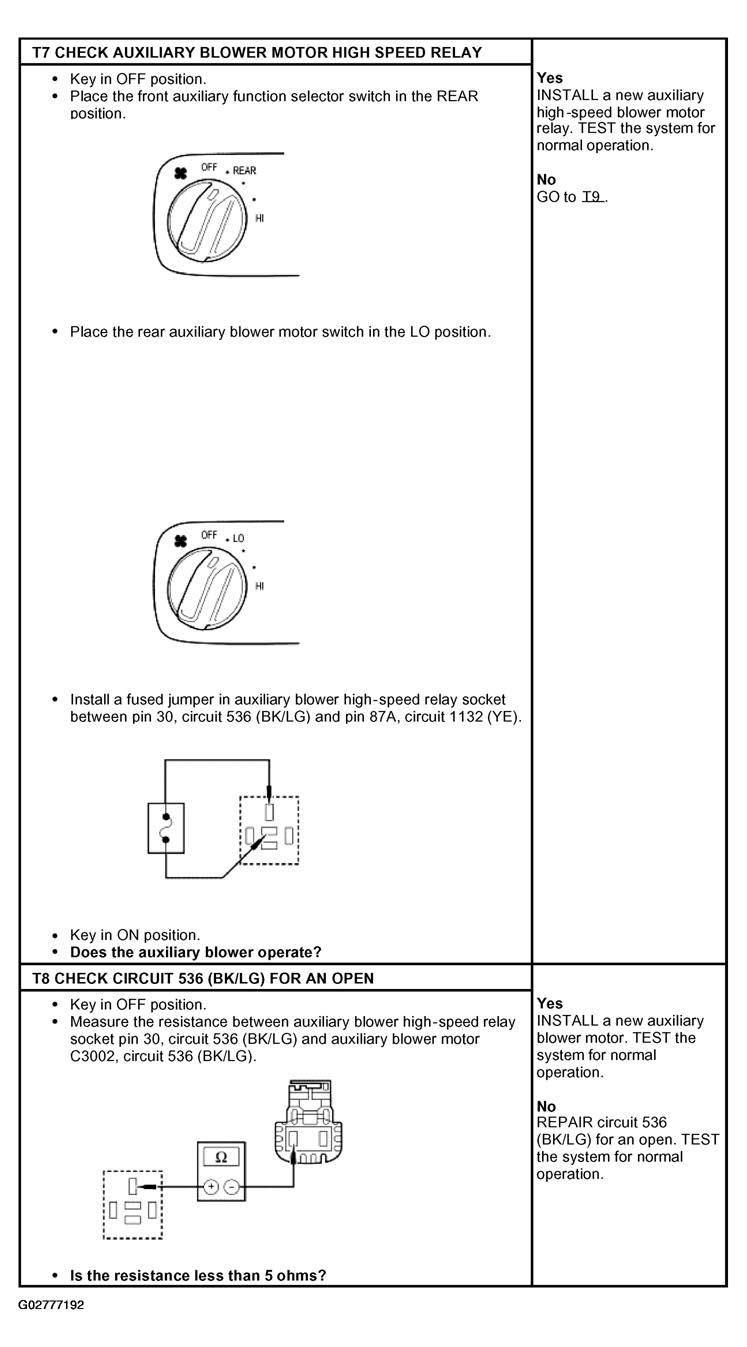

Fig 3: Pinpoint Test T: Auxiliary Blower Motor Does Not Operate (Step T7 To T8)

Courtesy of FORD MOTOR CO.

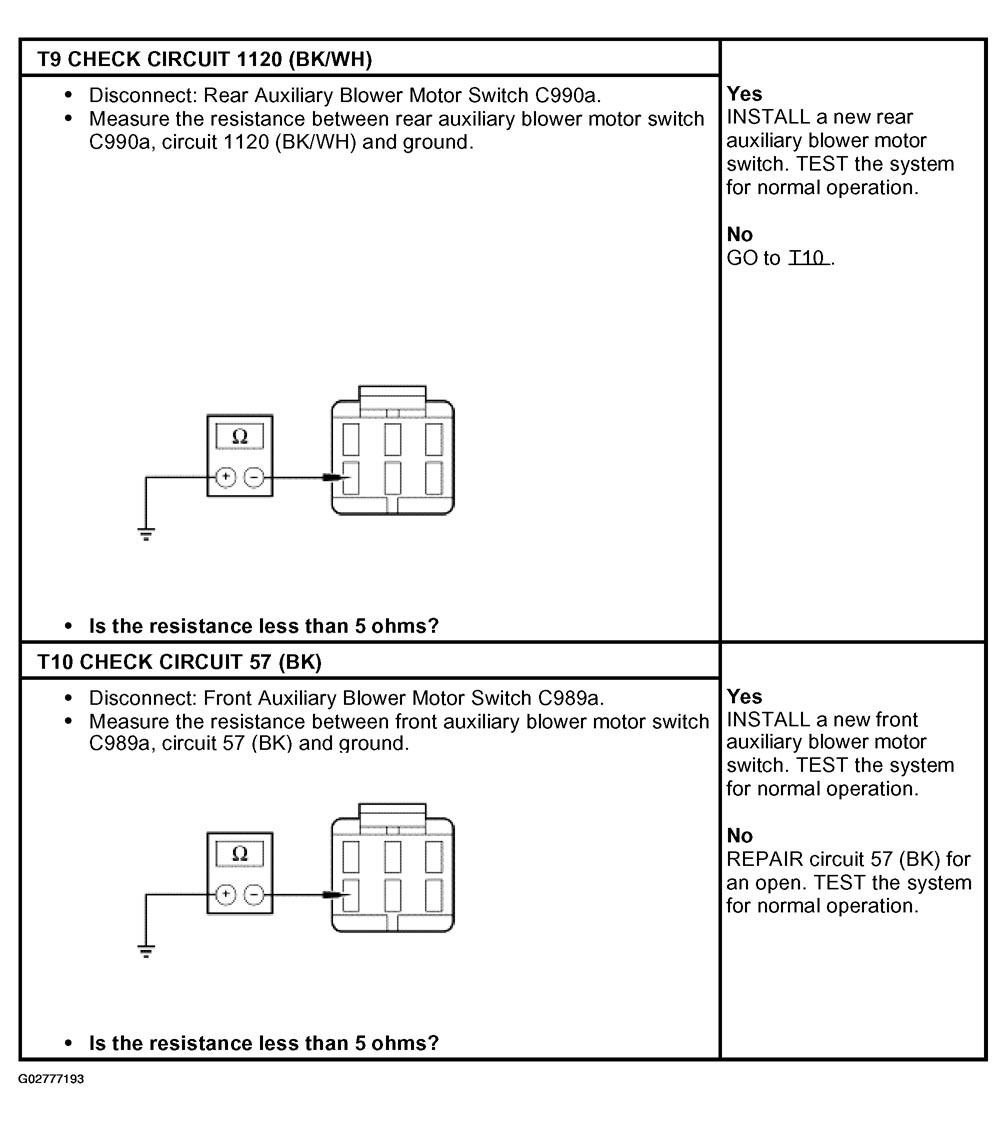

Fig 4: Pinpoint Test T: Auxiliary Blower Motor Does Not Operate (Step T9 To T10)

Courtesy of FORD MOTOR CO.
