Transmission Support CROSSMEMBER - Excursion: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
  2. Install a suitable high-lift transmission jack.
  3. Remove the wire harness from the rear crossmember.
    Fig 1: Removing Wire Harness From Rear Crossmember
    G02775740Courtesy of FORD MOTOR CO.
  4. Remove the LH crossmember bolts and nuts.
    Fig 2: Removing LH Crossmember Bolts And Nuts
    G02775741Courtesy of FORD MOTOR CO.
  5. Remove the RH crossmember bracket bolts and nuts.

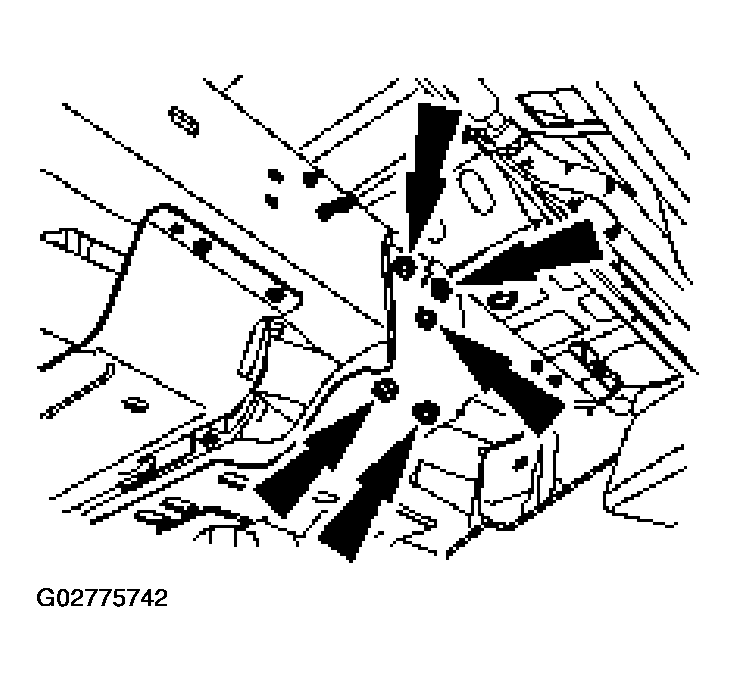

    Fig 3: Removing RH Crossmember Bracket Bolts And Nuts
    G02775742Courtesy of FORD MOTOR CO.
  6. Remove the rear transmission mount nuts and crossmember.
    Fig 4: Removing Rear Transmission Mount Nuts And Crossmember
    G02775743Courtesy of FORD MOTOR CO.
