Transmission Support CROSSMEMBER - Excursion: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the crossmember to the transmission mount and loosely install one nut to hold the crossmember in place.

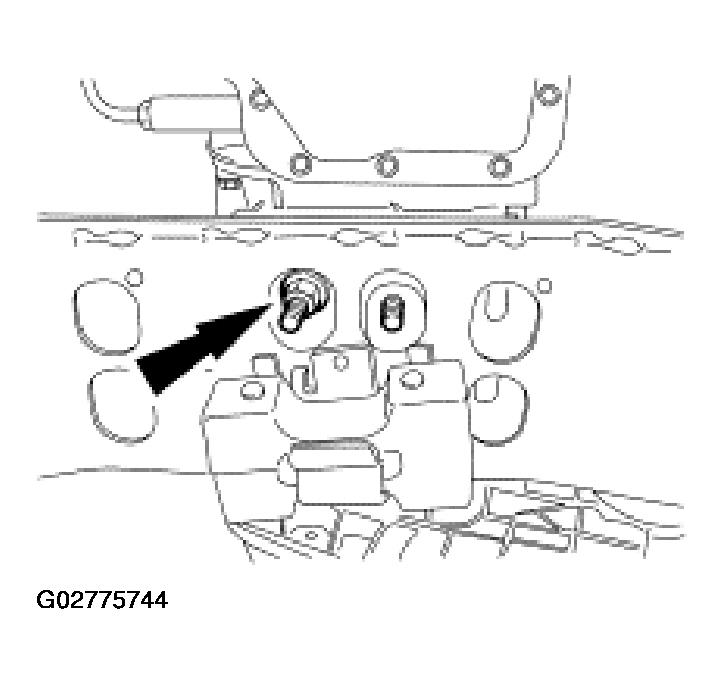

    Fig 1: Installing Nut To Hold Crossmember In Place
    G02775744Courtesy of FORD MOTOR CO.
  2. Install the LH crossmember bolts.

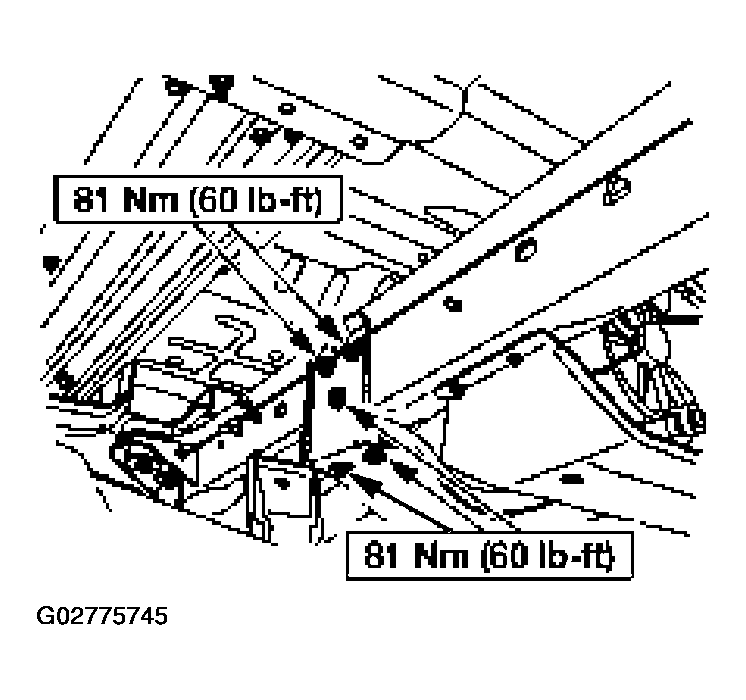

    Fig 2: Installing LH Crossmember Bolts
    G02775745Courtesy of FORD MOTOR CO.
  3. Tighten the RH crossmember bolts.

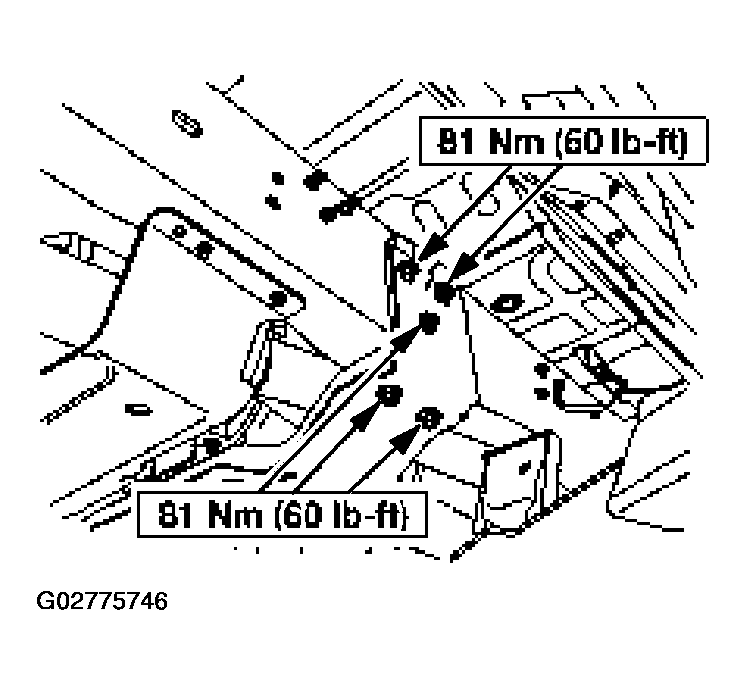

    Fig 3: Tightening RH Crossmember Bolts
    G02775746Courtesy of FORD MOTOR CO.
  4. Tighten the rear insulator nuts.
    Fig 4: Tightening Rear Insulator Nuts
    G02775747Courtesy of FORD MOTOR CO.
  5. Connect the wire harness to the rear of the crossmember.

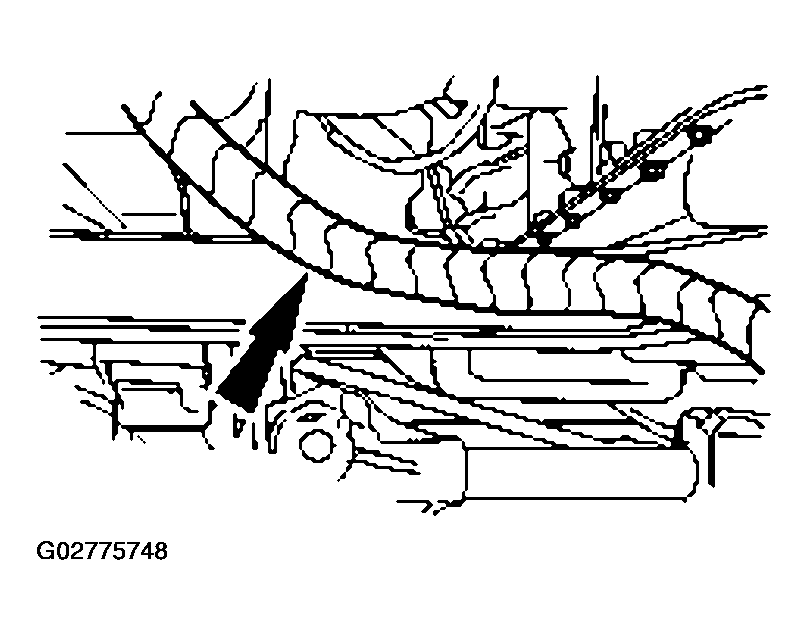

    Fig 5: Connecting Wire Harness To Rear Of Crossmember
    G02775748Courtesy of FORD MOTOR CO.
