Park System: Removal

All vehicles

1. With the vehicle in NEUTRAL, position on a hoist. Refer to JACKING & LIFTING .

   4x4 vehicles

2. Remove the transfer case. Refer to TRANSFER CASE .

   4x2 vehicles

3. Remove the rear driveshaft. Refer to DRIVESHAFT .

   Vehicles equipped with a fixed yoke

4. Remove the output shaft flange.
   1. Remove and discard the output shaft flange bolt.
   2. Remove the output shaft flange.
      Fig 1: Removing Output Shaft Flange

      Courtesy of FORD MOTOR CO.

   All vehicles

5. Using a suitable transmission jack, support the transmission.
6. Remove the bolts, and raise the transmission upward, off the rear mount.
   Fig 2: Removing Bolts

   Courtesy of FORD MOTOR CO.
7. Disconnect the output shaft speed (OSS) sensor electrical connector.
   Fig 3: Disconnecting Output Shaft Speed Sensor Electrical Connector

   Courtesy of FORD MOTOR CO.

   4x4 vehicles

8. Using the special tool, remove the output shaft retaining nut.
   Fig 4: Removing Output Shaft Retaining Nut

   Courtesy of FORD MOTOR CO.

   All vehicles

   NOTE: The 4x4 extension housing is shown, the 4x2 is similar.
9. Remove the nine bolts and the extension housing.
   Fig 5: Removing Bolts And Extension Housing

   Courtesy of FORD MOTOR CO.
10. Remove and discard the extension housing gasket.
    Fig 6: Removing Extension Housing Gasket

    Courtesy of FORD MOTOR CO.

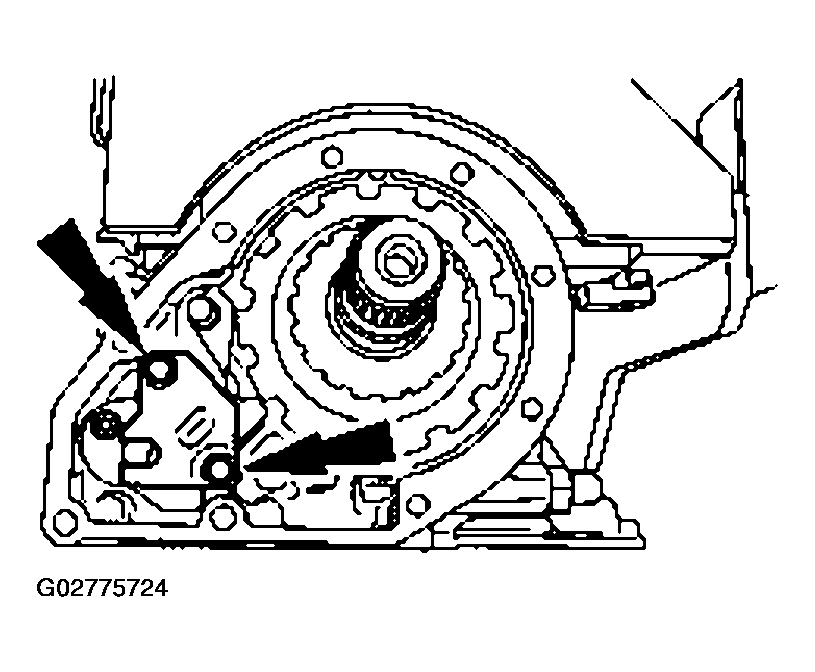

11. Remove the parking rod guide plate bolts and plate.
    Fig 7: Removing Parking Rod Guide Plate Bolts And Plate

    Courtesy of FORD MOTOR CO.
12. Remove the park pawl components.
    1. Remove the park pawl return spring.
    2. Remove the park pawl.
    3. Remove the park pawl shaft.
       Fig 8: Removing Park Pawl Components

       Courtesy of FORD MOTOR CO.
13. Inspect the output shaft and park gear for damage.
    1. Inspect the park gear for damage.
    2. Inspect the output shaft speed (OSS) gear for damage.
       Fig 9: Inspecting Output Shaft And Park Gear

       Courtesy of FORD MOTOR CO.
14. If damage is found to either the OSS or park gears, remove the park gear and output shaft as an assembly.
    Fig 10: Removing Park Gear And Output Shaft As An Assembly

    Courtesy of FORD MOTOR CO.
NOTE: The park gear and OSS gear may be present on the output shaft.
Fig 11: Removing Park And OSS Gear From Output Shaft
Courtesy of FORD MOTOR CO.
15. Remove the park and OSS gear from the output shaft.

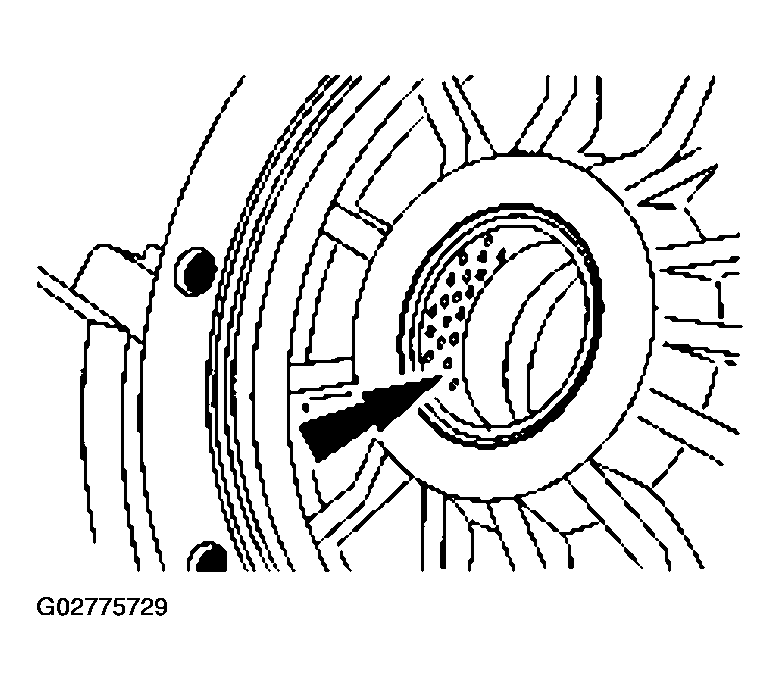

16. Inspect the Teflon® seals in the rear of the case. If the seals are worn or damaged, install new scarf cut seals.
    Fig 12: Inspecting Teflon® Seals In Rear Of Case

    Courtesy of FORD MOTOR CO.
